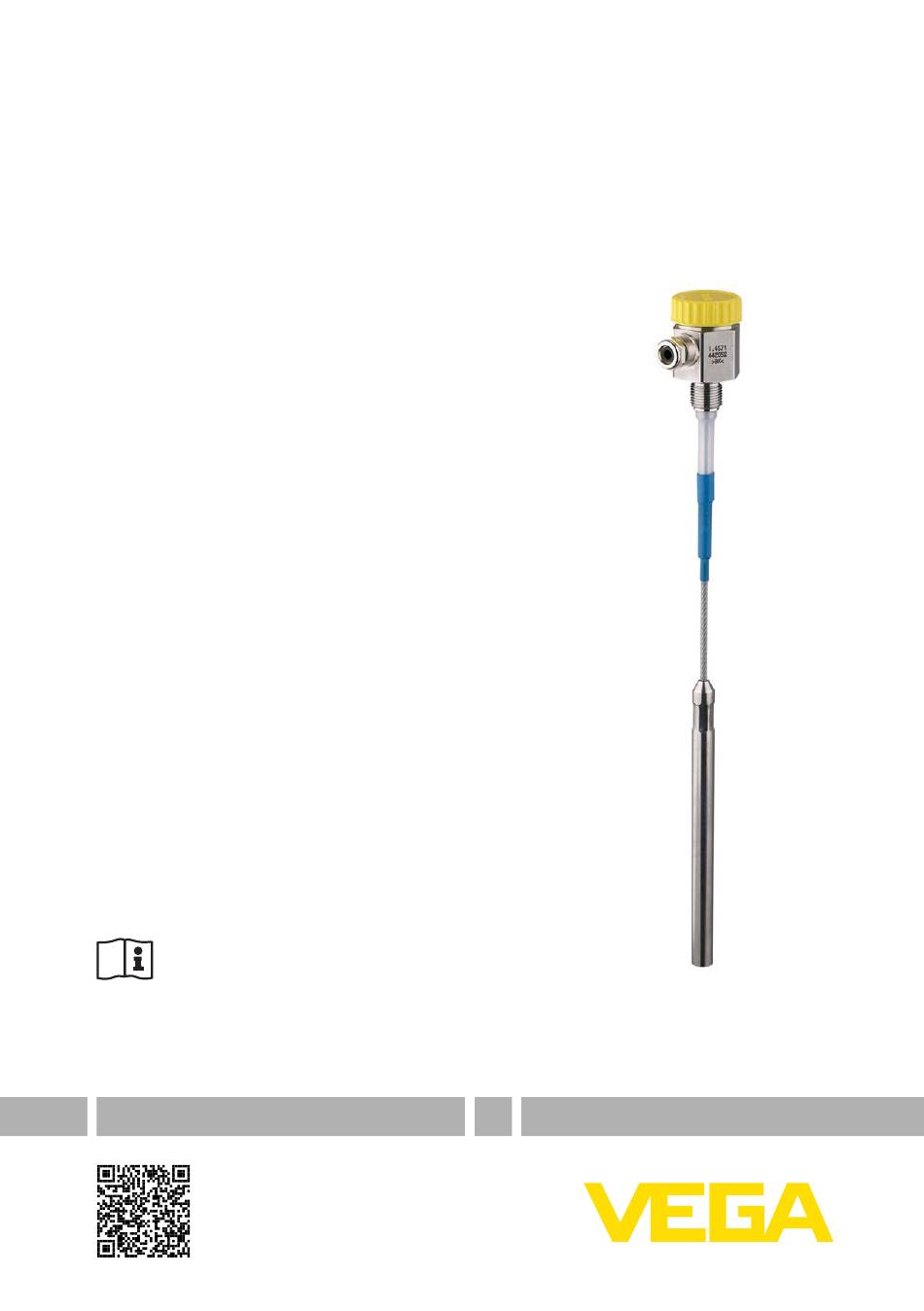

- Page 1 Operating Instructions Conductive probe EL 9 Document ID: 41050...
-
Page 2: Table Of Contents
How to proceed if a repair is necessary ................16 Dismount..........................17 Dismounting steps......................17 Disposal ......................... 17 Supplement ..........................18 Technical data ........................ 18 Dimensions ........................20 Industrial property rights ....................21 Editing status: 2022-03-11 Conductive probe EL 9 •... -
Page 3: About This Document
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work. -
Page 4: For Your Safety
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The EL 9 is a sensor for point level detection. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. -
Page 5: Installation And Operation In The Usa And Canada
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter " Packaging, transport and storage" • Chapter " Disposal" Conductive probe EL 9 •... -
Page 6: Product Description

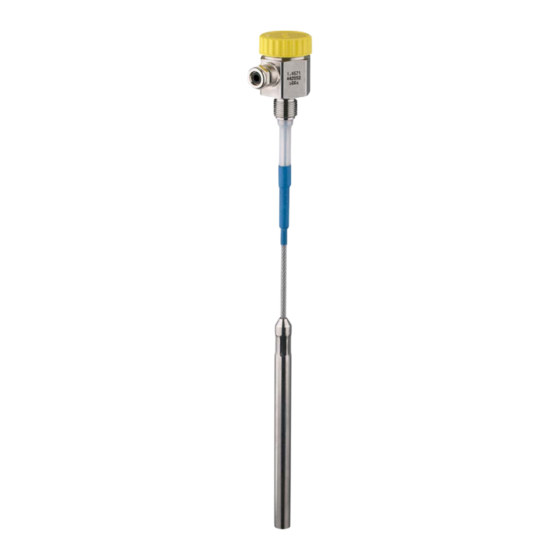

EL 9 point level switch • Documentation – This operating instructions manual – Ex-specific " Safety instructions" (with Ex versions) – If necessary, further certificates Constituent parts The EL 9 consists of the components: • Housing lid • Housing • Process fitting with electrode Conductive probe EL 9 •... - Page 7 3 Product description Fig. 1: Conductive cable electrode EL 9 Housing lid Housing 3 Process fitting To create a measuring system you need one conductive probe and a VEGATOR 131 and 132 controller. Serial number - Instru- The type label contains the serial number of the instrument. With it...
-
Page 8: Principle Of Operation
EL 9 is a point level sensor with partly insulated conductive electrode for level detection. EL 9 is very rugged and can be used in all areas of industrial process technology. The level switch can be used in conductive liquids such as e.g. water. - Page 9 Technical data - Ambient conditions" • Relative humidity 20 … 85 % Lifting and carrying With instrument weights of more than 18 kg (39.68 lbs) suitable and approved equipment must be used for lifting and carrying. Conductive probe EL 9 •...
-
Page 10: Mounting
Mounting instructions Inflowing medium If EL 9 is mounted in the filling stream, unwanted false measurement signals can be generated. For this reason, mount EL 9 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. This applies particularly to instrument versions with a longer probe. - Page 11 Use conductive seals, such as those made of copper or lead, etc. Insulating measures, such as covering the thread with Teflon tape, can interrupt the necessary electrical connection with metal vessels. For this reason, ground the probe on the vessel or use a conductive seal material. Conductive probe EL 9 •...
-
Page 12: Connecting To Power Supply
Instruments with Ex or WHG approval require a line break monitor- ing. Please note the Ex-specific safety information for installation and operation in Ex areas. Line monitoring with The line break monitoring is required for probes with approval accord- VEGATOR 131, 132 ing to WHG (WRA) or Ex. Conductive probe EL 9 •... - Page 13 1. Open the terminal of the probe and attach the additional electron- ics. 2. Connect the eyelet according to the following illustration. Make sure that the eyelets have no contact to other metal parts. 3. Tighten the terminal. Conductive probe EL 9 •...
- Page 14 Keep in mind that in case of a fault signal also the switching output will be activated. Only failures of channel 1 are monitored. Take note of the operating instructions manual of the controller. Conductive probe EL 9 •...
-
Page 15: Setup
6 Setup Setup General information You can find the setup procedure for EL 9 in the operating instructions manual of the corresponding controller. Conductive probe EL 9 •... -
Page 16: Maintenance And Fault Rectification
Should these measures not be successful, please call in urgent cases 24 hour service hotline the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. -
Page 17: Dismount
If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. Conductive probe EL 9 •... -
Page 18: Supplement
-40 … +80 °C (-40 … +176 °F) Process conditions Process pressure -1 … 63 bar/-100 … 6300 kPa (-14.5 … 914 psig) Process temperature EL 9 of 316L -50 … +130 °C (-58 … +266 °F) Conductance of the medium min. 7.5 µS/cm... - Page 19 For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. Conductive probe EL 9 •...
-
Page 20: Dimensions
9 Supplement Dimensions 46 mm (1.81") ~43 mm (1.69") M16x1,5 SW 41 mm (1.61") G½ A ø4 mm (0.16") 15 mm (0.59") Fig. 7: Conductive cable electrode EL 9 Sensor length, see chapter " Technical data" Conductive probe EL 9 •... -
Page 21: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 22 Notes Conductive probe EL 9 •...
- Page 23 Notes Conductive probe EL 9 •...
- Page 24 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2022 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
