STARA
TM

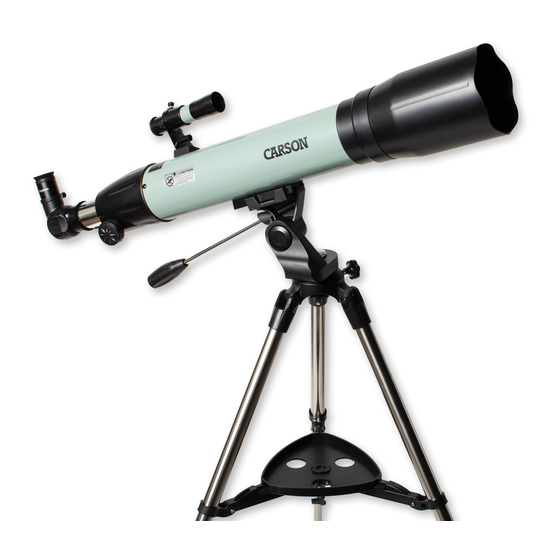

Refractor Telescope with Alt-Az Mount
Congratulations on selecting your new telescope! In order to achieve
optimum performance, please follow instructions for proper use and care.
PRODUCT SPECIFICATION:
Magnification:
Theoretical Magnification up to 70x
Aperture:
80mm (3")
Optical Design:
Refractor
Mount Type:
Alt-Az (Tripod included)
Eyepieces:
PL20mm (35x), PL10mm (70x), Size 1.25"
COMPLETE OPTICAL TUBE ASSEMBLY (OTA)
Focal Length / Ratio:
700mm, f/8.75
Erecting Diagonal:
Orients to Upright View like a Spotting Scope
Finderscope:
Erecting 6x25mm
Lens Coatings:
Fully Coated
OTA Lens Covers
Some models have two
lens covers. Please make
sure to remove both before
viewing.
SR-200
1
