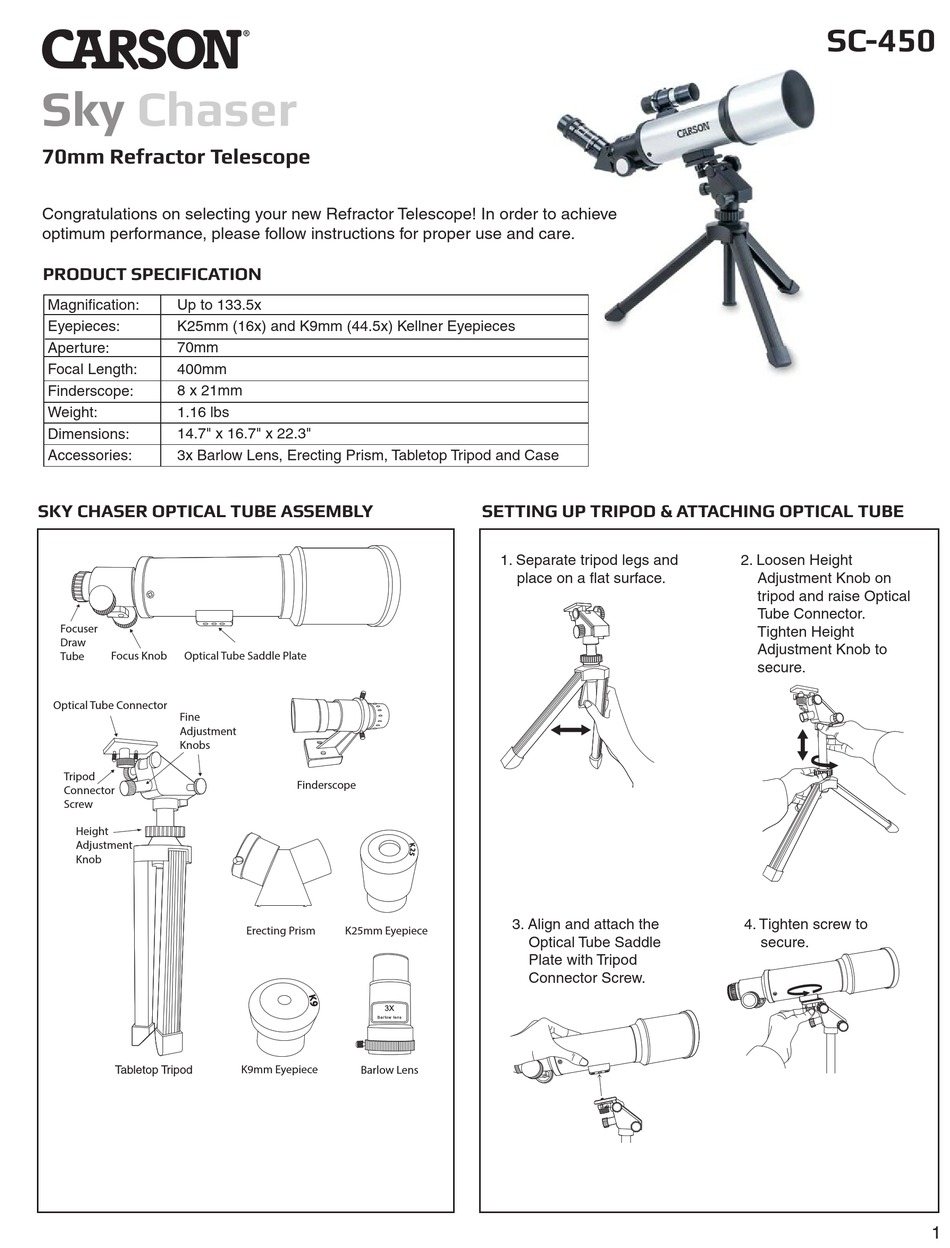

Sky
Chaser

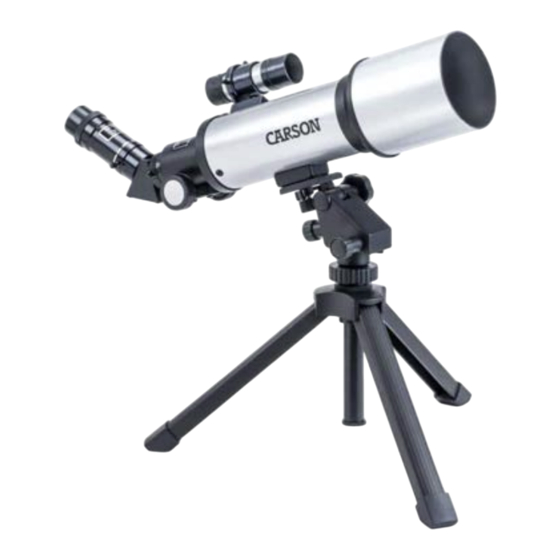

70mm Refractor Telescope
Congratulations on selecting your new Refractor Telescope! In order to achieve
optimum performance, please follow instructions for proper use and care.
PRODUCT SPECIFICATION
Magnification:
Up to 133.5x
K25mm (16x) and K9mm (44.5x) Kellner Eyepieces
Eyepieces:
Aperture:
70mm
400mm
Focal Length:
Finderscope:
8 x 21mm
Weight:
1.16 lbs
Dimensions:
14.7" x 16.7" x 22.3"
Accessories:
3x Barlow Lens, Erecting Prism, Tabletop Tripod and Case
SKY CHASER OPTICAL TUBE ASSEMBLY
Focuser
Draw
Focus Knob
Optical Tube Saddle Plate
Tube
Optical Tube Connector
Fine
Adjustment
Knobs
Tripod
Connector
Screw
Height
Adjustment
Knob
Tabletop Tripod
Finderscope
K25mm Eyepiece
Erecting Prism
K9mm Eyepiece
Barlow Lens
SETTING UP TRIPOD & ATTACHING OPTICAL TUBE
1. Separate tripod legs and
place on a flat surface.
3. Align and attach the
Optical Tube Saddle
Plate with Tripod
Connector Screw.
SC-450
2. Loosen Height
Adjustment Knob on
tripod and raise Optical
Tube Connector.
Tighten Height
Adjustment Knob to
secure.
4. Tighten screw to
secure.
1
Advertisement
Related Manuals for Carson Sky Chaser-450
Summary of Contents for Carson Sky Chaser-450
- Page 1 SC-450 Chaser 70mm Refractor Telescope Congratulations on selecting your new Refractor Telescope! In order to achieve optimum performance, please follow instructions for proper use and care. PRODUCT SPECIFICATION Magnification: Up to 133.5x K25mm (16x) and K9mm (44.5x) Kellner Eyepieces Eyepieces: Aperture: 70mm 400mm...
- Page 2 ATTACHING FINDERSCOPE 1. Remove Finderscope plastic 2. Mount the Finderscope mounting nuts from mounting onto the two screws. screws on Optical Tube. Replace and tighten plastic nuts to secure. ATTACHING ERECTING PRISM 1. Remove Focuser 2. Loosen Thumbscrew and place Draw Tube cover.
- Page 3 • Always replace lens caps when not in use and store telescope in case. ˜°˛˝˙ˆˇ˘ˇ˘ˇ ˜°˛˝˙ˆ˛ˇ˘ˇˇˇ˛˝˛ˆˇ ˛ˇ ˇ˛˙˛ˆ ˛˛ ˇ˛ ˛ ˇ˛ ˝˛˙˛ ˇ˛˝˙ˆ °˙ ˙˙ ˆ ˆ˙ ˙˙ ˇˆ ˆ˙ ˙˙ ˙˘˘˘˝ ˙˘ˆ˝˙ ˛˝ ˘˛˙ ˙ˆ ˘˘˝ www.carson.com Carson Optical 2070 5th Avenue, Ronkonkoma, NY 11779 | Tel: 631-963-5000...
