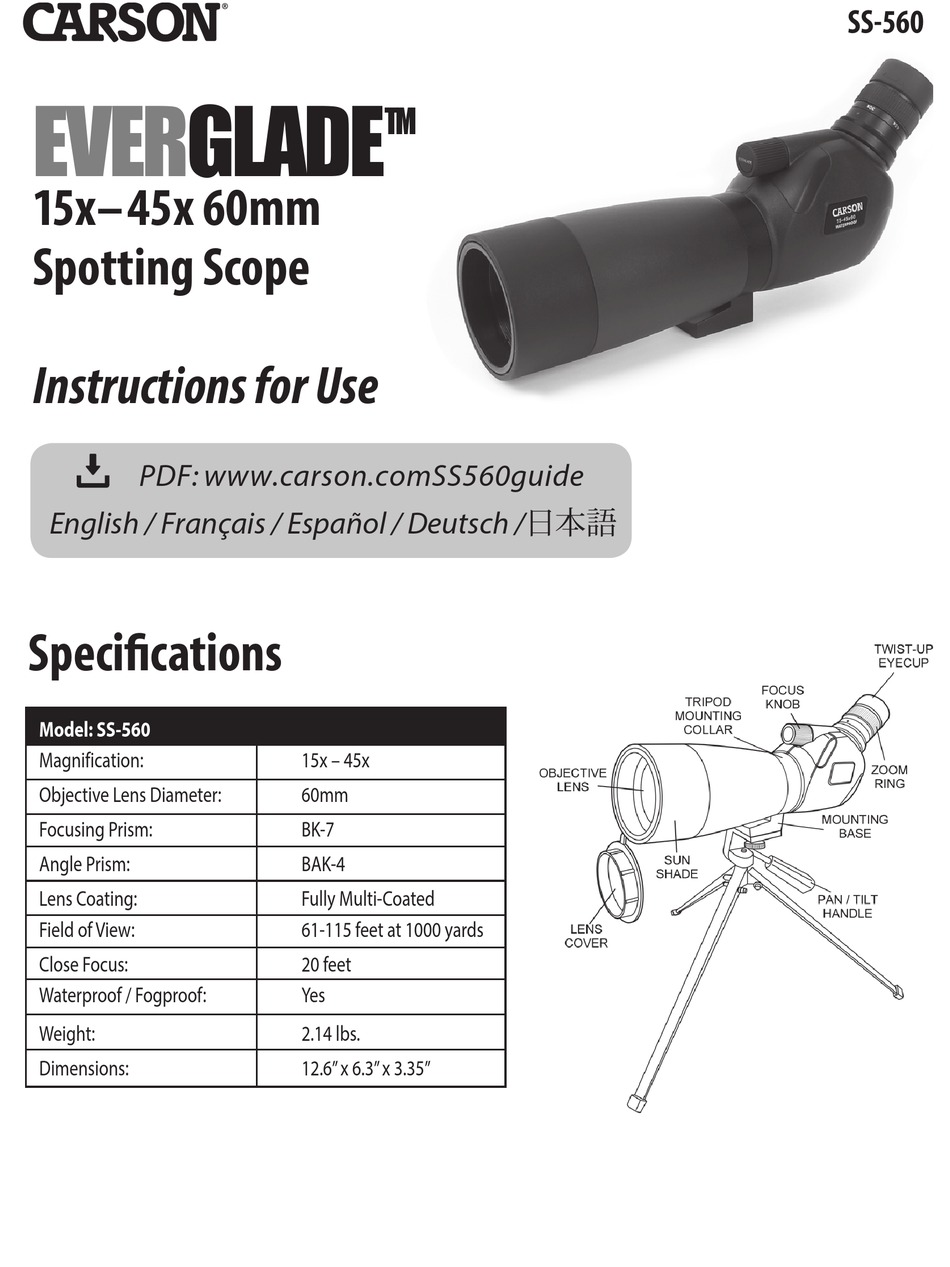

EVERGLADE
15x– 45x 60mm
Spotting Scope
Instructions for Use
PDF: www.carson.comSS560guide
English / Français / Español / Deutsch /日本語
Specifications
Model: SS-560
Magnification:
Objective Lens Diameter:
Focusing Prism:
Angle Prism:
Lens Coating:
Field of View:
Close Focus:
Weight:
Dimensions:
TM
15x – 45x
60mm
BK-7
BAK-4
Fully Multi-Coated
61-115 feet at 1000 yards
20 feet
Yes
2.14 lbs.
12.6" x 6.3" x 3.35"
SS-560
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson EVERGLADE SS-560
Summary of Contents for Carson EVERGLADE SS-560
-
Page 1: Specifications
SS-560 EVERGLADE 15x– 45x 60mm Spotting Scope Instructions for Use PDF: www.carson.comSS560guide English / Français / Español / Deutsch /日本語 Specifications Model: SS-560 Magnification: 15x – 45x Objective Lens Diameter: 60mm Focusing Prism: BK-7 Angle Prism: BAK-4 Lens Coating: Fully Multi-Coated... - Page 2 Tripod Mounting Fig. 2 This spotting scope comes with a tabletop tripod. Place this tripod on a level surface with all legs rotated to their outermost position. Locate the mounting base underneath the spotting scope and fasten to the screw located on the tripod mounting plate (See Fig.
- Page 3 Twist-Up Eyecup Fig. 5 This spotting scope features a twist-up eyecup designed to exclude extraneous light (See Fig. 5). If you do not wear eyeglasses, you may choose to twist the eyecup up to block stray light and reflections from your view. If you are wearing eyeglasses, lower the eyecup to bring your eyes closer to the spotting scope lens, providing an improved field of view.
- Page 4 Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. For a more thorough cleaning, use a Carson C6® lens cleaning product. IMPORTANT: Never attempt to clean your spotting scope internally or try to take it apart.
