Summary of Contents for Chipsee PPC-CM4-050

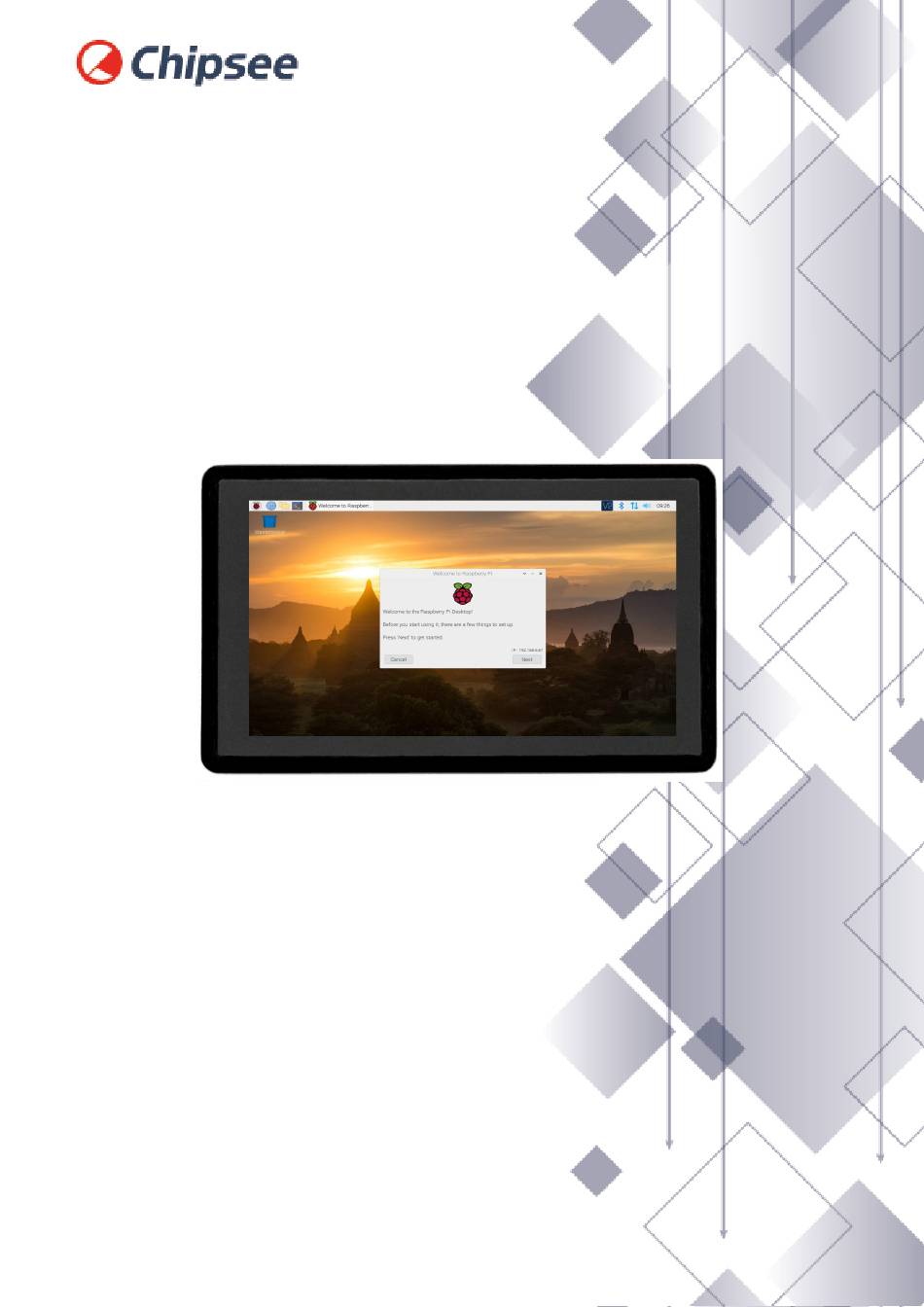

- Page 1 Industrial PC PPC-CM4-050 PN: CS12720RA4050 Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-CM4-050 1.1. Product Overview 1.2. Ordering Options ® 1.2.1. Pi CM4 Module 1.2.2. Operating System 1.3. Specifications 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232/RS485/CAN 1.6.2. USB Connectors 1.6.3. LAN Connectors 1.6.4. WiFi & BT Module 1.6.5. -
Page 3: Ppc-Cm4-050

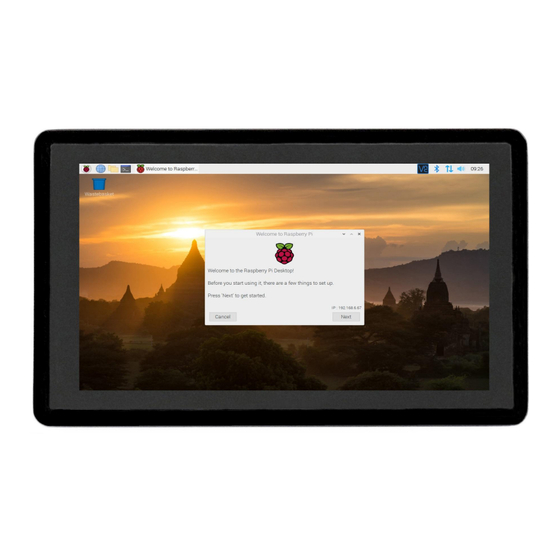

PPC-CM4-050 PPC-CM4-050 Front View Rear View Chipsee Page 3 of 24... - Page 4 PPC-CM4-050 Rear View Side View Chipsee Page 4 of 24...
-
Page 5: Product Overview
Installation on an industrial cabinet • Integration with the existing equipment ® The PPC-CM4-050 industrial Pi PC is based around the powerful Raspberry Pi Compute ® Module 4, powered by the Quad Cortex -A72 processor with a processor speed of 1.5GHz. Chipsee... -
Page 6: Ordering Options
® The PPC-CM4-050 industrial Pi PC does not include the CM4 Raspberry Pi module by default. If you would like to purchase it with a CM4, you can select it at the Chipsee store during the ordering process. Operating System This product comes with a pre-installed Debian OS. -
Page 7: Specifications
PPC-CM4-050 Specifications Specifications The PPC-CM4-050 industrial Pi PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. PPC-CM4-050 ® Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz... - Page 8 The default product without the CM4 does not include a Wi-Fi/BT module. You can include a CM4 that has the Wi-Fi/BT module at the Chipsee store during the ordering process. Chipsee designed TF card slots for storage expansion, as the TF card for storage expansion use same pins with WiFi, it can’t be used with WiFi at same time...
-
Page 9: Power Input
PPC-CM4-050 Power Input Power Input The PPC-CM4-050 industrial Pi PC can be powered by a wide range of input voltages: From 9V to 36V DC. It is a 3 Pin, 3.81mm screw terminal connector. As shown in the figure below. -
Page 10: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-CM4-050 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 11: Connectivity
Connectivity Connectivity There are many connectivity options available on the PPC-CM4-050 industrial Pi PC. It has 2 x USB 2.0 Host, 1 x Type-C, 1 x Channel Giga LAN (RJ45) Ethernet connector supporting up to 1 Gbps, and 4 x UART and 1 x CAN terminals (RS232/RS485/CAN). - Page 12 PPC-CM4-050 RS232/RS485/CAN RS232-RS485-CAN on the PPC-CM4-050 Industrial PC Attention RS485_3 and RS485_5 can control the input and output direction automatically. There’s no need to control it from within the software. The 120Ω match resistor for RS485 is already mounted by default.
-
Page 13: Usb Connectors
PPC-CM4-050 USB Connectors The 2 x RS485 can be configured to 2 x RS232, if you want a custom configuration, you can contact us when placing an order. The table below offers more detailed description of every pin and its definition:... -
Page 14: Lan Connectors
PPC-CM4-050 LAN Connectors Attention 1. These two USB host connectors can drive 500mA for each channel at most. 2. These two USB host connectors come from the same USB HUB. 3. When you connect this product to the HOST PC through the Type-C port, the USB HUB will be disabled. As a result, the two USB host connectors will not work. -
Page 15: Wifi & Bt Module
The product does not come shipped with the Wi-Fi/BT module by default. Camera Connector The PPC-CM4-050 industrial Pi PC has a 15 Pin Camera Connector, as shown in the figure below. The camera signals come from CAM1. The table below gives details about the definition of every Pin. - Page 16 PPC-CM4-050 Camera Connector Camera Connector Camera Connector Pin Definition: Pin Number Definition Description Pin 1 Power Ground Pin 2 CAM1_DN0 CAM1_DN0 Pin 3 CAM1_DP0 CAM1_DP0 Pin 4 Power Ground Pin 5 CAM1_DN1 CAM1_DN1 Pin 6 CAM1_DP1 CAM1_DP1 Pin 7 Power Ground...
- Page 17 Attention The camera connector is supported but not mounted by default. It’s available on the PCB but not exposed on the case, please contact us when placing an order if you need to use camera on the PPC-CM4-050. Chipsee Page 17 of 24...
-
Page 18: Tf Card Slot
PPC-CM4-050 TF Card Slot TF Card Slot The PPC-CM4-050 industrial Pi PC features 1 x TF Card (micro SD) slot. A slot can address up to 128GB of memory. TF (micro SD) Card Slot Attention The SD is used for memory extension. It can’t be used for system boot-up. -
Page 19: Audio Connectors
PPC-CM4-050 Audio Connectors Audio Connectors The PPC-CM4-050 industrial Pi PC features some audio peripherals. It has 1 x 3.5mm audio output jack. Also, the PPC-CM4-050 industrial Pi PC has a miniature 2W internal speaker for audio reproduction, as well as a small buzzer for alarm/notification sounds. -
Page 20: Hdmi Connector
PPC-CM4-050 HDMI Connector HDMI Connector The PPC-CM4-050 industrial Pi PC supports 1 x HDMI-D 2.0 interfaces capable of driving 4K displays. Figure 911: HDMI Connector Chipsee Page 20 of 24... -
Page 21: Prog Button
PPC-CM4-050 PROG Button PROG Button The PPC-CM4-050 industrial Pi PC has one button for entering usb download mode, as shown in the figure below. When booting with the button being pressed, the Raspberry Pi will boot from the USB connector. You can use this feature to download the OS software to the internal eMMC. -
Page 22: Mounting Procedure
PPC-CM4-050 Mounting Procedure Mounting Procedure The PPC-CM4-050 industrial Pi PC can be mounted with 2 x M4 screws, enabling simplified installation onto any standard mounting fixture. CS12720RA4050P You can mount CS12720RA4050P with the Vesa (75 x 75mm) and Panel mounting methods, as shown in the figure below. -
Page 23: Mechanical Specifications
Please refer to the technical drawing in the figure below for details related to the specific product measurements. Figure 913: CS12720RA4050P Technical Drawing 3D Model PPC-CM4-050 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc. -
Page 24: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
