Summary of Contents for Chipsee PPC-CM5-215

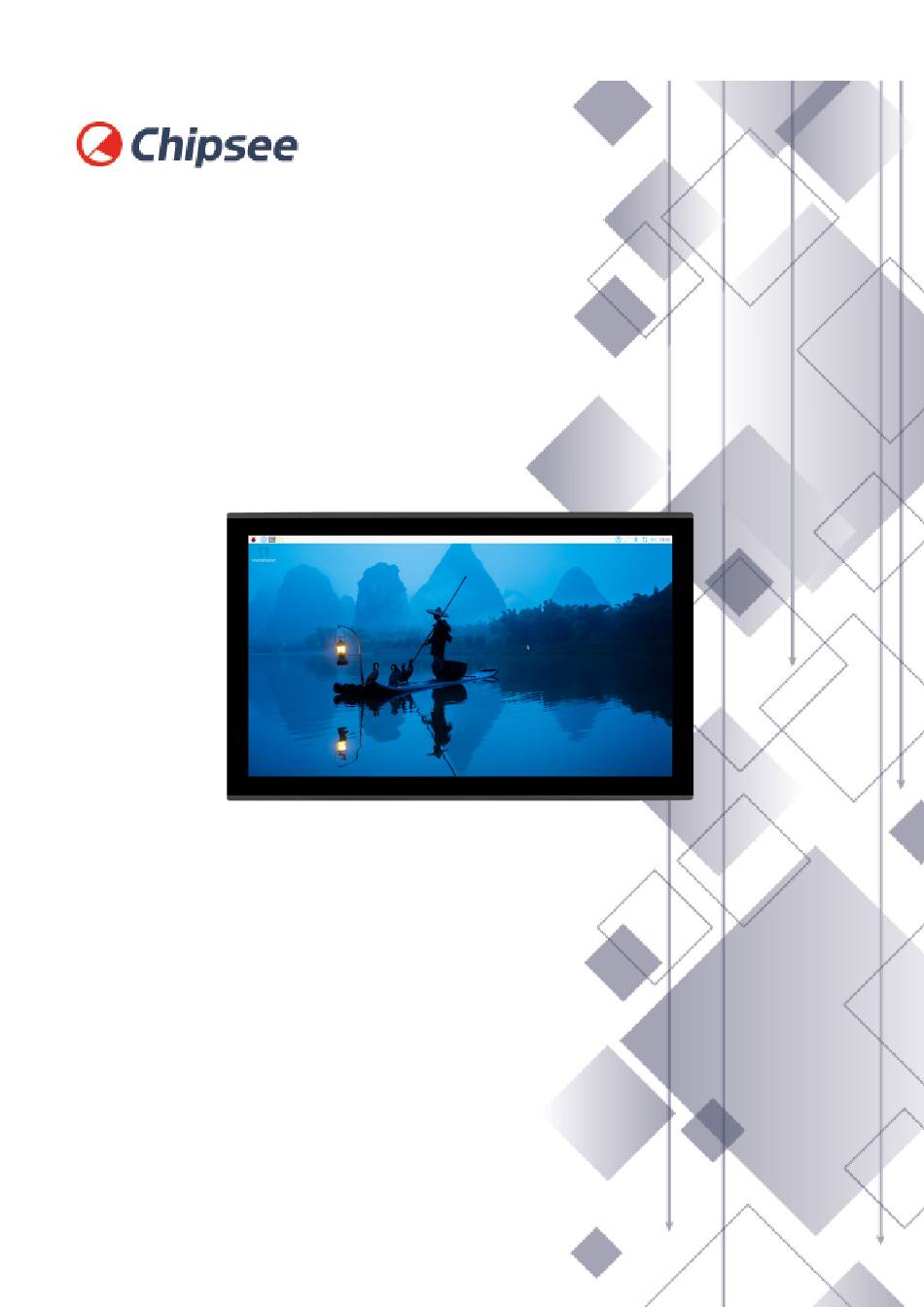

- Page 1 Industrial PC PPC-CM5-215 PN: CS19108RA5215 Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
Contents PPC-CM5-215 1. Product Overview 2. Ordering Options ® 2.1. Pi CM5 Module 2.2. Operating System 2.3. Optional Features 3. Specifications 4. Power Input 4.1. Ignition Signal 5. Touch Screen 6. Connectivity 6.1. RS232/RS485/CAN 6.2. GPIO Port 6.3. USB Connectors 6.4. -
Page 3: Ppc-Cm5-215
PPC-CM5-215 PPC-CM5-215 Front View Chipsee Page 3 of 36... -
Page 4: Rear View
PPC-CM5-215 Rear View Chipsee Page 4 of 36... -
Page 5: Side View
PPC-CM5-215 Side View 1 Chipsee Page 5 of 36... - Page 6 PPC-CM5-215 Side View 2 Chipsee Page 6 of 36...
-
Page 7: Product Overview
Installation on an industrial cabinet • Integration with the existing equipment ® The PPC-CM5-215 industrial Pi PC is based around the powerful Raspberry Pi Compute ® Module 5, powered by the Quad Cortex -A76 processor with a processor speed of 2.4GHz. Chipsee... -
Page 8: Ordering Options
® The PPC-CM5-215 industrial Pi PC does not include the CM5 Raspberry Pi module by default. If you would like to purchase it with a CM5, you can select it at the Chipsee store during the ordering process. Operating System This product comes with a pre-installed Raspberry Pi OS. -
Page 9: Optional Features
Optional Features The PPC-CM5-215 industrial Pi PC does not include the 3G/4G/LTE modules by default. These modules are optional and can be selected at the Chipsee store during the ordering process. The product has a PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242/2260/2280 socket (PCIe 3.0 is possible but experimental for CM5), you can use it with your NVMe SSD or other modules that can fit in the slot and supports the protocol. -
Page 10: Specifications
PPC-CM5-215 Specifications Specifications The PPC-CM5-215 industrial Pi PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. PPC-CM5-215 ® Raspberry Pi CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz... - Page 11 The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software. The default product without the CM5 does not include a Wi-Fi/BT module. You can include a CM5 that has the Wi-Fi/BT module at the Chipsee store during the ordering process. Chipsee Page 11 of 36...
-
Page 12: Power Input
Power Input Power Input The PPC-CM5-215 industrial Pi PC can be powered by a wide range of input voltages: From 15V to 30V (supports optional 24V ignition signal) DC. It is a 3 Pin, 3.81mm screw terminal connector. As shown in the figure below. - Page 13 PPC-CM5-215 Power Input Note The system ground “G” is connected to power negative “-” on board. Chipsee Page 13 of 36...
-
Page 14: Ignition Signal
PPC-CM5-215 Ignition Signal Ignition Signal The product has a “ignition signal” optional feature. By default the ignition signal is not installed. If you need this feature you can contact us when placing an order. In this setup, Pin 3 is the ignition signal pin. - Page 15 PPC-CM5-215 Ignition Signal Power Input Definition Pin 3 Ignition Ignition Signal Table 377 Power Connector with Ignition Signal Chipsee Page 15 of 36...
-
Page 16: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-CM5-215 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 17: Connectivity
Connectivity Connectivity There are many connectivity options available on the PPC-CM5-215 industrial Pi PC. It has 2 x USB 3.0 type-A Host, 1 x USB type-C OTG, 1 x Giga LAN (RJ45) Ethernet connector supporting up to 1 Gbps, and 4 x UART and 1 x CAN FD terminals (RS232/RS485/CAN). - Page 18 PPC-CM5-215 RS232/RS485/CAN Attention RS485_3 and RS485_5 can control the input and output direction automatically. There’s no need to control it from within the software. The 120Ω match resistor for RS485 is NOT mounted by default. The 120Ω match resistor for CAN is NOT mounted by default. Be sure to mount the match resistor when testing CAN.
-
Page 19: Gpio Port
PPC-CM5-215 GPIO Port GPIO Port The PPC-CM5-215 industrial Pi PC has a phoenix connector, as shown in the figure below. The table below gives details about the definition of every Pin. Attention In order to use the Isolated Output, you need to add an external Isolated Power to the VDD_ISO and GND_ISO. - Page 20 PPC-CM5-215 GPIO Port GPIO Connector GPIO Connector Pin Definition: Pin Number Definition Description Pin 12 24V_ISO Isolated Power +24V Input Pin 11 GND_ISO Isolated Ground Pin 10 OUT1 Isolated Output 1 Pin 9 OUT2 Isolated Output 2 Pin 8 OUT3...
-
Page 21: Usb Connectors
PPC-CM5-215 USB Connectors USB Connectors There are 2 x USB 3.0 type-A Host, 1 x USB type-C OTG onboard, as shown in the figure below. USB HOST Connectors Attention 1. These two USB host connectors can drive 500mA for each channel at most. - Page 22 PPC-CM5-215 USB Connectors Warning Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the embedded Industrial PC version. Chipsee Page 22 of 36...
-
Page 23: Lan
PPC-CM5-215 The 1 x Giga LAN provides Ethernet connectivity over standardized Ethernet cables as shown in the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput. These Giga LAN signals come from the CM5 module directly. -
Page 24: Wifi & Bt Module
WiFi & BT Module WiFi & BT Module The default PPC-CM5-215 without the CM5 does not include a Wi-Fi/BT module. If you include a CM5 that has the Wi-Fi/BT module, the product will have Wi-Fi/BT feature. The product also has an SMA connector for an external WiFi/BT antenna: WiFi+BT Antenna ... -
Page 25: 3G/4G/Lte Module
3G/4G/LTE Module 3G/4G/LTE Module The PPC-CM5-215 industrial Pi PC is equipped with a mini-PCIe connector that can connect to a 3G/4G/LTE module. The customer will also need a SIM Card Holder and a 3G/4G/LTE antenna to ensure 3G/4G/LTE works on the PPC-CM5-215. SIM card does NOT support hot plug. - Page 26 PPC-CM5-215 3G/4G/LTE Module 3G/4G/LTE Module Attention The product does not come shipped with the 3G/4G/LTE module by default. If you need to use 3G/4G/LTE, you can contact us when placing an order, we can install the necessary hardware for you.
-
Page 27: M.2 Module
M.2 Module M.2 Module The PPC-CM5-215 industrial Pi PC has a M.2 slot, it supports NVME m.2 SSD or other m.2 modules such as an AI compute module. It’s PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242/2260/2280 socket. The modules are not included in the product by default. -
Page 28: Camera Connector
PPC-CM5-215 Camera Connector Camera Connector The PPC-CM5-215 industrial Pi PC has a 22 Pin Camera Connector. The camera signals come from CAM1. The table below gives details about the definition of every pin. Camera Connector Camera Connector Pin Definition: Pin Number... - Page 29 System +3.3V Power Output, No more than 500mA Current output Table 380 Camera Connector Pin-out Attention The camera connector is supported but not mounted by default. Please contact us when placing an order if you need to use camera on the PPC-CM5-215. Chipsee Page 29 of 36...
-
Page 30: Tf Card Slot
PPC-CM5-215 TF Card Slot TF Card Slot The PPC-CM5-215 industrial Pi PC features 1 x TF Card (micro SD) slot. A slot can address up to 128GB of memory. TF (micro SD) Card Slot Attention The TF card cannot be used for memory extension. It is only used for system boot-up for CM5 LITE model. -
Page 31: Audio Connectors
PPC-CM5-215 Audio Connectors Audio Connectors The PPC-CM5-215 industrial Pi PC features some audio peripherals. It has 1 x 3.5mm audio output jack. Also, the PPC-CM5-215 industrial Pi PC has a miniature 2W internal speaker for audio reproduction, as well as a small buzzer for alarm/notification sounds. -
Page 32: Hdmi Connector
PPC-CM5-215 HDMI Connector HDMI Connector The PPC-CM5-215 industrial Pi PC supports 1 x HDMI 2.0 out, can be driven up to 4K 60FPS. Micro HDMI Connector Chipsee Page 32 of 36... -
Page 33: Prog Button
PPC-CM5-215 PROG Button PROG Button The PPC-CM5-215 industrial Pi PC has one button for entering usb download mode, as shown in the figure below. When booting with the button being pressed, the Raspberry Pi will boot from the USB connector. You can use this feature to download the OS software to the internal eMMC. -
Page 34: Mounting Procedure
PPC-CM5-215 Mounting Procedure Mounting Procedure CS19108RA5215P You can mount CS19108RA5215P with VESA mounting (guide): 75 x 75 mm or 100 x 100 mm, 4 x M4 (6mm) screws. You can mount CS19108RA5215P with PANEL mounting (guide). Attention Please make sure the display is not exposed to high pressure when mounting into an enclosure. -
Page 35: Mechanical Specifications
PPC-CM5-215 Mechanical Specifications Mechanical Specifications CS19108RA5215P For CS19108RA5215P, the outer mechanical dimensions are 535 x 331 x 52.5mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. -
Page 36: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
