Siemens SIMATIC NET RUGGEDCOM RX1510 Equipment Manual page 25

Installing the Device
2.5.2 Connecting Low DC Power
16
European-style (Euroblock) Terminal Block
1
Positive (+) Terminal
2
Negative (-) Terminal
3
Ground Terminal
4

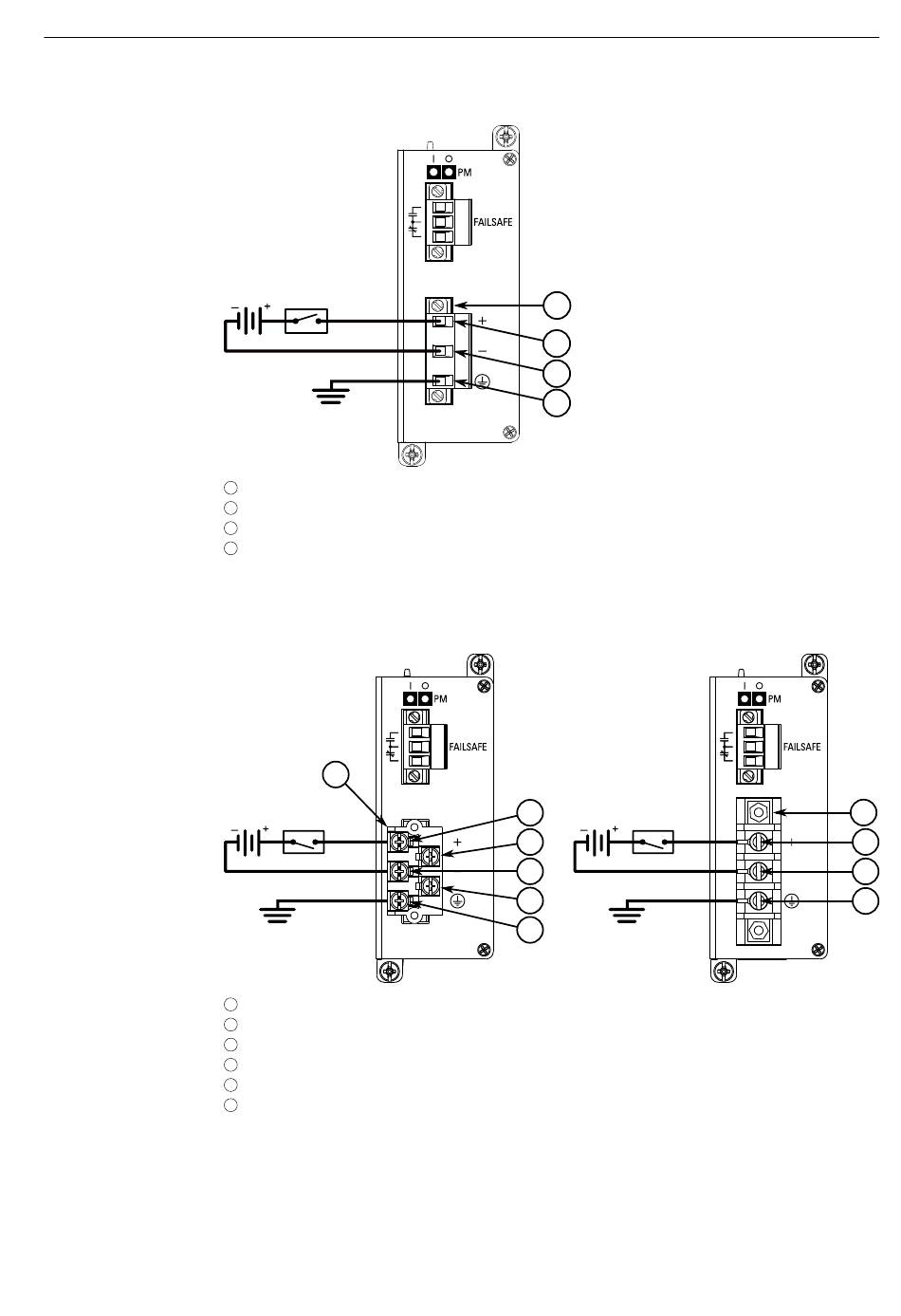

Figure 2.8 DC Terminal Block Wiring – European-style (Euroblock) Terminal Block for 12P,
24P and 48P Power Supplies
2
Not Connected
1
Removable Screw Terminal Block
2
Non-removable Screw Terminal Block
3
Positive (+) Terminal
4
Negative (-) Terminal
5
Ground Terminal
6
Figure 2.9 DC Terminal Block Wiring – Screw Terminal Block for 12P, 24P and 48P Power
Supplies
1
2
3
4
4
1
5
1
6
Equipment Manual, 10/2023, C79000-G8976-1055-25
3
4
5
6
RUGGEDCOM RX1510
