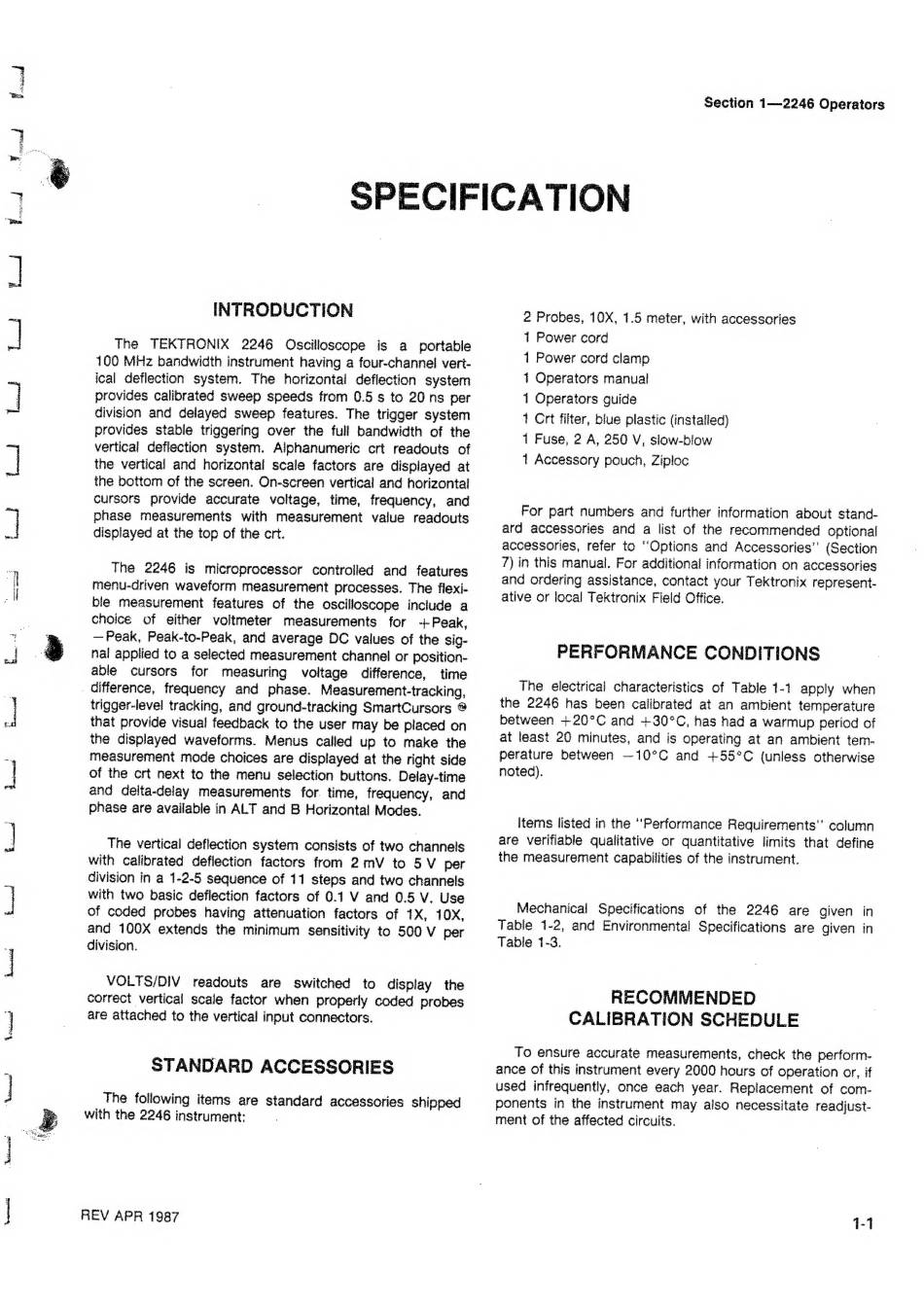

Section 1—2246 Operators
SPECIFICATION
INTRODUCTION
The TEKTRONIX 2246 Oscilloscope is a portable
100 MHz bandwidth instrument having a four-channel vert-
ical deflection system. The horizontal deflection system
provides calibrated sweep speeds from 0.5 to 20 ns per
division and delayed sweep features. The trigger system
provides stable triggering over the full bandwidth of the
vertical deflection system. Alphanumeric
crt readouts
of
the vertical and horizontal scale factors are displayed at
the bottom of the screen. On-screen vertical and horizontal
cursors provide accurate voltage, time, frequency, and
phase measurements
with measurement
value readouts
displayed at the top of the crt.
STANDARD ACCESSORIES
REV APR 1987
2 Probes, 10X, 1.5 meter, with accessories
1 Power cord
1 Power cord clamp
1 Operators manual!
1 Operators guide
1 Crt filter, blue plastic (installed)
1 Fuse, 2 A, 250 V, siow-blow
1 Accessory pouch, Ziploc
PERFORMANCE CONDITIONS
RECOMMENDED
CALIBRATION SCHEDULE
1-1
