Summary of Contents for GIGAIPC QBi-N97A
-

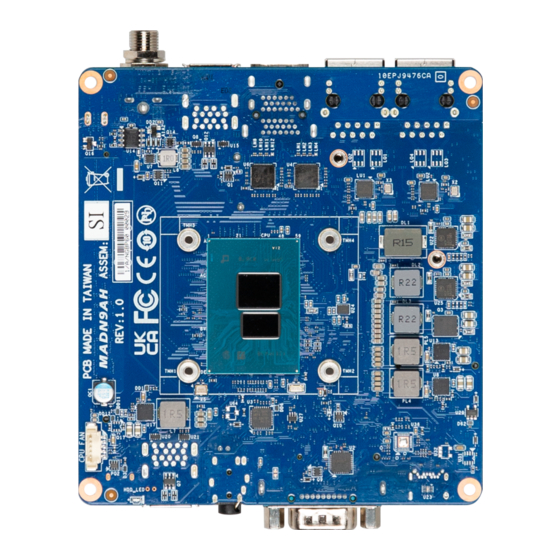

Page 1: 10" X 10" Embedded Compact Board
QBi-N97A (MADN9AH) 10” x 10” Embedded Compact Board www.gigaipc.com... -
Page 2: Copyright Notice
The material in this document is for product information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation ITE is a trademark of Integrated Technology Express, Inc. • • IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity QBi-N97A (MADN9AH) SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. 13. Watch out for high temperatures when the system is running. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 ○ ○ ○ ○ ○ ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
Safety Precautions ................6 FCC Statement ................. 8 China RoHS Requirements (CN) ............9 China RoHS Requirement (EN) ............10 Chapter 1 - Product Specifications QBi-N97A (MADN9AH) 13 Specifications- QBi-N97A (MADN9AH)......15 Chapter 2 – Hardware Information Jumpers and Connectors ..........18 2.2.1... - Page 12 Hardware Monitor ............47 3.3.7 Network Stack Configuration-1........48 3.3.7 Network Stack Configuration-2 ........49 3.3.8 NVMe Configuration ............50 3.3.9 Offboard SATA Controller Configuration ......51 Chipset ................52 Security ................53 Boot .................. 56 Save & Exit ............... 57 www.gigaipc.com...
-
Page 13: Chapter 1 - Product Specifications Qbi-N97A (Madn9Ah)
Chapter 1 Chapter 1 - Product Specifications QBi-N97A (MADN9AH) www.gigaipc.com... - Page 14 www.gigaipc.com...
-
Page 15: Specifications- Qbi-N97A (Madn9Ah)
Specifications- QBi-N97A (MADN9AH) Motherboard QBi-N97A (MADN9AH) Embedded Compact Board Form Factor 105W x 110D (mm) Intel® Processor N97 Intel® 7, 4 cores, up to 3.60 GHz TDP 12W Socket 1 x FCBGA1264 Chipset — 1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB... - Page 16 Motherboard QBi-N97A (MADN9AH) 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 Rear IO 2 x HDMI 1 x Screw type DC Jack (+12V~19VDC) Side IO — Onboard TPM 2.0 security chip NUVOTON NPCT760AABYX OS Compatibility Windows 10/11 (x64) Operating temperature: 0°C to +60°C...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 18: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 19 Code Description Power Button header PWR_BT M.2 Slot, 2230 E-key FUSB2_1 USB 2.0 header FUSB2_2 BATTERY Battery connector DC_IN2 DC IN connector SODIMM DDR5 SO-DIMM Slot SATA 6Gb/s connector SATAIII SATA_PWR SATA power connector www.gigaipc.com...
- Page 20 USB 3.2 Gen 2x1 port x 2 Serial port connector (RS-232) Combo Audio Jack (Headphone & Headset) PWR_BUTTON Power button DC_IN1 Screw type DC Jack USB31_1 USB 3.2 Gen 2x1 port x 2 HDMI_21 HDMI connector x 2 LAN1 LAN Connector x 2 LAN2 www.gigaipc.com...
-
Page 21: Pwr_Bt (Power Button)
2.2.1 PWR_BT (Power Button) Pin 1 Power Button header Connector PN Vendor XXXXXXXX XXXXX Connector type 2x5pin header, pitch 1.0mm Pin No. Definition PWRBTSW 5Vdual MPD- www.gigaipc.com... -
Page 22: M2E (M.2 Slot, 2230 E-Key)
PCIE Clock p PCIE Clock n Pin No. Definition Pin No. Definition SUSCLK 3.3V PCIE Clock Reset 3.3V Request PCIE Wakeup BT_Disable WLAN_Disable 3.3V 3.3V Pin No. Definition Pin No. Definition Connector PN Vendor PCIE TXp 80152-8521 BELLWETHER PCIE TXn www.gigaipc.com... -
Page 23: Fusb2_1, Fusb2_2 (Usb 2.0 Header)
2.2.3 FUSB2_1, FUSB2_2 (USB 2.0 header) Pin 1 USB 2.0 header Connector PN Vendor A1250WV-S- JOINT-TECH 04PNLBT1T00L 50273-0047N-001 ACES Connector type 1x4pin header, pitch 1.25mm F_USB2.0 Pin No. Definition www.gigaipc.com... -
Page 24: Battery (Battery Connector)
2.2.4 BATTERY (Battery connector) Pin 1 Battery Connector Pin No. Definition Connector type 1x2pin header, pitch 1.25mm www.gigaipc.com... -
Page 25: Dc_In2 (Dc In Connector)
2.2.5 DC_IN2 (DC IN Connector) Pin 1 ATX_IN Connector Connector PN Vendor 99-01740-B004-A TCONN Connector type 1x2pin header, pitch 3.0mm Pin No. Definition DC IN www.gigaipc.com... -
Page 26: Sodimm (Ddr5 So-Dimm Slot)
2.2.6 SODIMM (DDR5 SO-DIMM Slot) www.gigaipc.com... -
Page 27: Sataiii (Sata 6Gb/S Connector)
2.2.7 SATAIII (SATA 6Gb/s connector) Pin 1 SATA 6 Gb/s connector Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX Pin No. Definition www.gigaipc.com... -
Page 28: Sata_Pwr (Sata Power Connector)
2.2.8 SATA_PWR (SATA power connector) Pin 1 SATA power connector Connector PN Vendor 85205-0570N ACES Connector type 1x5pin header, pitch 1.25mm Pin No. Definition 3.3V www.gigaipc.com... -
Page 29: M2M (M.2 Slot, 2280 M-Key)
SATA TXp SSD LED PCIE Clock 3.3V Request 3.3V PCIE Clock n 3.3V PCIE Clock p 3.3V Pin No. Definition Pin No. Definition Detect 3.3V 3.3V PCIE1 RXn 3.3V PCIE1 RXp Connector PN Vendor PCIE1 TXn 80159-8521 BELLWETHER PCIE1 TXp www.gigaipc.com... -
Page 30: Cpu Fan (Cpu Fan Connector)
2.2.10 CPU FAN (CPU Fan connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0570N ACES Connector type 1x5pin header, pitch 1.25mm Pin No. Definition CPUFANIN FAN1_PWM www.gigaipc.com... -
Page 31: Usb31_2 (Usb 3.2 Gen 2X1 Connector)
2.2.11 USB31_2 (USB 3.2 Gen 2x1 connector) USB 3.2 Gen 2x1 connector Connector PN Vendor 18-A5950-6A33-A TCONN Definition Definition USB3_RX1n USB3_RX2n USB3_RX1p USB3_RX2p USB3_TX1n USB3_TX2n USB3_TX1p USB3_TX2p www.gigaipc.com... -
Page 32: Com (Serial Port Connector, Rs-232)
2.2.12 COM (Serial port connector, RS-232) Serial port Connector Connector PN Vendor SM41D1P1122N33N1 FENYING Pin No. Definition www.gigaipc.com... -
Page 33: Dc_In1 (Screw Type Dc Jack Connector)
2.2.13 DC_IN1 (Screw type DC Jack connector) Screw Type DC Jack Connector Connector PN Vendor 655-360-000 SHEN-MING www.gigaipc.com... -
Page 34: Usb31_1 (Usb 3.2 Gen 2X1 Connector)
2.2.14 USB31_1 (USB 3.2 Gen 2x1 connector) USB 3.2 Gen 2x1 connector Connector PN Vendor 18-A5950-6A33-A TCONN Definition Definition USB3_RX1n USB3_RX2n USB3_RX1p USB3_RX2p USB3_TX1n USB3_TX2n USB3_TX1p USB3_TX2p www.gigaipc.com... -
Page 35: Hdmi_21 (Hdmi Connector)
2.2.15 HDMI_21 (HDMI connector) HDMI 1 HDMI 2 HDMI Connector Connector PN Vendor QJ11191-DFB1-4F FOXCONN Pin No. Definition Pin No. Definition TX2p CLKn TX2n TX1p DDC Clock TX1n DDC Data TX0p Hot Plug TX0n Detect CLKp www.gigaipc.com... -
Page 36: Lan1, Lan2 (Lan Connector)
LAN Connector State Description Orange On 2.5Gbps data rate Green On 1Gbps data rate 100M&10Mbps data rate Link / Connection/ Activity LED Speed LED Pin No. Definition Connector PN Vendor TX1+ RB1-GB-0010 TX1- TX2+ TX2- TX3+ TX3- TX4+ TX4- www.gigaipc.com... -
Page 37: Chapter 3 - Bios
Chapter 3 Chapter 3 – BIOS www.gigaipc.com... -
Page 38: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 39: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 40: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 41: Tpm Configuration
3.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB)(Default setting) www.gigaipc.com... - Page 42 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...
-
Page 43: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 44: Cpu Configuration
Enabled : Enables CPU C states function (Default setting) Disabled : Disables CPU C states function CPU will adjust frequency depends on it's loading. CPU P states Enabled : Enables CPU P states function (Default setting) Disabled : Disables CPU P states function www.gigaipc.com... -
Page 45: Sata Configuration
3.3.4 SATA Configuration Item Description SATA Mode AHCI : Configures the SATA controllers to AHCI mode. (Default setting) Selection M.2 Port shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 46: It8613 Super Io Configuration
Press [Enter] to configure advanced items : Enable or Disable Serial Port Serial Port 1 Enabled : Enables Serial Port function (Default setting) Configuration Disabled : Disables Serial Port function Device settings : Display the specified Serial Port base I/O address and IRQ www.gigaipc.com... -
Page 47: Hardware Monitor
Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed System Temperature Shows current system temperature CPU Temperature Shows current CPU temperature CPU Fan Speed Shows current CPU fan Speed www.gigaipc.com... -
Page 48: Network Stack Configuration-1
IPv4 PXE Support Disabled : Disables Ipv4 PXE Support Enabled : Enables Ipv4 PXE Support (Default setting) When Network stack is enabled : IPv6 PXE Support Disabled : Disables Ipv6 PXE Support Enabled : Enables Ipv6 PXE Support (Default setting) www.gigaipc.com... -
Page 49: Network Stack Configuration-2
IPv4 HTTP Support Disabled : Disables Ipv4 HTTP Support Enabled : Enables Ipv4 HTTP Support (Default setting) When Network stack is enabled : IPv6 HTTP Support Disabled : Disables Ipv6 HTTP Support Enabled : Enables Ipv6 HTTP Support (Default setting) www.gigaipc.com... -
Page 50: Nvme Configuration
3.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 51: Offboard Sata Controller Configuration
3.3.9 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 52: Chipset
Enable/Disable Watchdog Timer function Watchdog Timer Enabled : Enables Watchdog Timer function Value Disabled : Disabled Watchdog Timer function (Default setting) Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com... -
Page 53: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 54 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 55 Copy NVRAM content of Secure OsRecovery Secure Boot Boot variables to files in a root Signatures variables folder on a file system device (dbr) Enabled : Enables MS UEFI MS UEFI CA CA Key (Default setting) Disabled : Disables MS UEFI CA Key www.gigaipc.com...
-
Page 56: Boot
Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Enabled : Enables Built-in EFI Shell Built-in EFI Shell Disabled : Disables Built-in EFI Shell (Default setting) www.gigaipc.com... -
Page 57: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com... - Page 58 www.gigaipc.com...
