Page 1: 10" X 10" Embedded Compact Board
QBi-1355A (MRLU7AH)/ QBi-1335A (MRLU5AH)/ QBi-1315EA (MRLU3AH) 10” x 10” Embedded Compact Board www.gigaipc.com... -
Page 2: Copyright Notice
The material in this document is for product information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation ITE is a trademark of Integrated Technology Express, Inc. • • IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity QBi-1355A (MRLU7AH) or QBi-1335A (MRLU5AH) or QBi-1315EA (MRLU3AH) SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. 13. Watch out for high temperatures when the system is running. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 ○ ○ ○ ○ ○ ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
Safety Precautions ................6 FCC Statement ................. 8 China RoHS Requirements (CN) ............9 China RoHS Requirement (EN) ............10 Chapter 1 - Product Specifications : QBi-1355A (MRLU7AH)/ QBi-1335A (MRLU5AH)/ QBi-1315EA (MRLU3AH) Specifications- QBi-1355A/ QBi-1335A/ QBi-1315EA ..16 Chapter 2 – Hardware Information Jumpers and Connectors .......... - Page 12 3.3.1 TPM Configuration ............47 3.3.2 CPU Configuration ............49 3.3.3 SATA Configuration ............51 3.3.4 Super IO Configuration ............ 52 3.3.5 Hardware Monitor ............53 3.3.6 S5 RTC Wake Settings ............54 3.3.7 Network Stack Configuration ........... 55 www.gigaipc.com...
- Page 13 (MAC address may varied based on different motherboard) ..................59 3.3.12 Realtek PCIe GBE Family Controller (MAC:10:FF:E0:30: A2:5D) (MAC address may varied based on different motherboard)..............60 Chipset ................61 Security ................62 Boot .................. 65 Save & Exit ............... 66 www.gigaipc.com...
-
Page 14: Chapter 1 - Product Specifications Qbi-1355A (Mrlu7Ah)/ Qbi-1335A (Mrlu5Ah)/ Qbi-1315Ea (Mrlu3Ah)
Chapter 1 Chapter 1 - Product Specifications QBi-1355A (MRLU7AH)/ QBi-1335A (MRLU5AH)/ QBi-1315EA (MRLU3AH) www.gigaipc.com... - Page 15 113.8 130.1 105.8 www.gigaipc.com...
-
Page 16: Specifications- Qbi-1355A/ Qbi-1335A/ Qbi-1315Ea
Specifications- QBi-1355A/ QBi-1335A/ QBi-1315EA Motherboard QBi-1355A QBi-1335A QBi-1315EA Embedded Compact Board Form Factor 105W x 110D (mm) Intel® Core™ i7- Intel® Core™ i5- Intel® Core™ i3- 1355U Processor 1335U Processor 1315UE Processor Intel® 7, 10 cores, Intel® 7, 10 cores, Intel®... - Page 17 Motherboard QBi-1355A QBi-1335A QBi-1315EA Audio Realtek® ALC269 Storage 1 x SATA 6Gb/s port Raid RAID 0/1 1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s) Expansion Slots 1 x 2230 M.2 E-Key (PCIe x1, USB 2.0) 1 x 2-pin power connector...
-
Page 18: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -

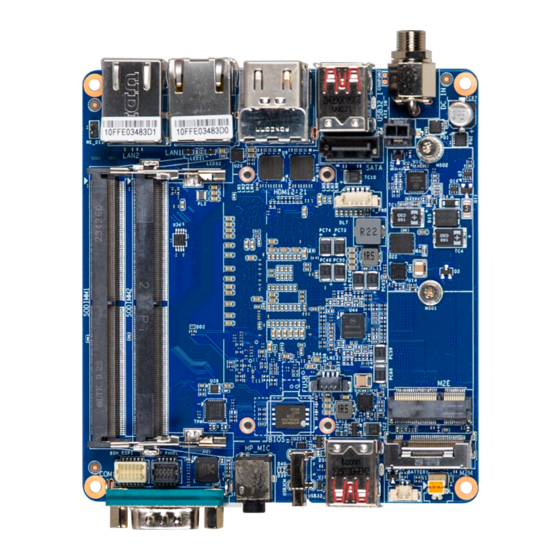

Page 19: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 20 Code Description ATX_IN ATX IN Connector SATA SATA 6Gb/s connector SATA_PWR SATA power connector M.2 Slot, 2230 E-key M.2 Slot, 2280 M-Key BATTERY Battery Connector FUSB USB 2.0 header F_PANEL Front panel header www.gigaipc.com...
-
Page 21: Sodimm1 Sodimm2
USB32_2 USB 3.2 Gen 2x1 Port x 2 PWR_BT Power button with LED DC_IN Screw type DC Jack LAN1 2.5GbE LAN Port LAN2 1GbE LAN Port USB32_1 USB 3.2 Gen 2x1 Port x 2 HDMI2_21 HDMI Port x 2 www.gigaipc.com... -
Page 22: Atx_In (Atx In Connector)
2.2.1 ATX_IN (ATX IN Connector) Pin 1 ATX IN Connector Connector PN Vendor 99-01740-B004-A TCONN Connector type 1x2pin header, pitch 3.0mm Pin No. Definition DC IN www.gigaipc.com... -
Page 23: Sata (Sata 6Gb/S Connector)
2.2.2 SATA (SATA 6Gb/s connector) Pin 1 SATA 6Gb/s connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 24: Sata_Pwr (Sata Power Connector)
2.2.3 SATA_PWR (SATA power connector) Pin 1 SATA power connector Connector PN Vendor 85205-0570N ACES Connector type 1x5pin header, pitch 1.25mm Pin No. Definition www.gigaipc.com... -
Page 25: M2E (M.2 Slot, 2230 E-Key)
CL_Reset WLAN_RXp CL_DATA WLAN_RXn CL_Clock Clock_Dp Clock_Dn Pin No. Definition Pin No. Definition SUSCLK 3.3V Clock_ USB_D+ 3.3V PLT_Reset Request USB_D- PCIE_Wake up BT_Disable WIFI_Disable 3.3V 3.3V Pin No. Definition Pin No. Definition Connector PN Vendor WLAN_TXp 80152-4221 BELLWETHER www.gigaipc.com... -
Page 26: M2M (M.2 Slot, 2280 M-Key)
SATA_TXp PLT_Reset PCIE_RXn3 CK_Request PCIE_RXp3 Clock_n PCIE_Wake up M2_LED Clock_p PCIE_TXn3 3.3V PCIE_TXp3 3.3V Pin No. Definition Pin No. Definition 3.3V SUSCLK PCIE_RXn2 3.3V PCIE_RXp2 M2_SSD_ 3.3V Detect 3.3V PCIE_TXn2 3.3V PCIE_TXp2 PCIE_RXn1 Connector PN Vendor PCIE_RXp1 2E0BC41-C85CM-LH FOXCONN www.gigaipc.com... -
Page 27: Battery (Battery Connector)
2.2.6 BATTERY (Battery connector) Pin 1 Battery Connector Pin No. Definition Connector type 1x2pin header, pitch 1.25mm www.gigaipc.com... -
Page 28: Fusb (Usb 2.0 Header)
2.2.7 FUSB (USB 2.0 header) Pin 1 USB 2.0 header Connector PN Vendor A1250WV-S- JOINT-TECH 04PNLBT1T00L 50273-0047N-001 ACES Connector type F_USB2.0 1x4pin header, pitch 1.25mm Pin No. Definition D- (USBN) D+ (USBP) www.gigaipc.com... -
Page 29: F_Panel (Front Panel Connector)
2.2.8 F_PANEL (Front panel Connector) Pin 1 Front Panel Connector Connector PN Vendor 50238-01041-001 ACES Connector type 2x5pin header, pitch 1.0mm Pin No. Definition Power Button+ Power Button- PWR LED+ PWR LED- HDD LED- HDD LED+ www.gigaipc.com... -
Page 30: Sodimm1, Sodimm2 (Ddr5 So-Dimm Slot)
2.2.9 SODIMM1, SODIMM2 (DDR5 SO-DIMM Slot) www.gigaipc.com... -
Page 31: Me_Dis (Me Disable Jumper)
2.2.10 ME_DIS (ME Disable jumper) Pin 1 ME Disable jumper Connector type 1x2pin header, pitch 2.0mm ME Disable Jumper Enable Disable www.gigaipc.com... -
Page 32: Cpu Fan (Cpu Fan Connector)
2.2.11 CPU FAN (CPU FAN connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Connector type 1x4pin header, pitch 1.25mm Pin No. Definition Detect Speed Control www.gigaipc.com... -
Page 33: Com1 (Serial Port Connector, Rs-232/422/485)
2.2.12 COM1 (Serial port connector, RS-232/422/485) Serial port Connector Connector PN Vendor SM41D1P1122N33N1 FENYING Pin No. RS-232 RS-422 RS-485 Full Duplex Half Duplex TXD- TXD+ RXD+ – RXD- – – – – – – – – – www.gigaipc.com... -
Page 34: Usb3Cm (Usb Type C Port)
2.2.13 USB3CM (USB Type C Port) USB TYPE C Port Definition Definition TX0_P RX0_P TX0_N RX0_N USB_VBUS USB_VBUS SBU2 USBP5_P USBP5_N USBP5_N USBP5_P SBU1 USB_VBUS USB_VBUS RX1_N TX1_N RX1_P TX1_P Connector PN Vendor WU3CR- WINWIN 24A5L1CU5T41 www.gigaipc.com... -
Page 35: Hp_Mic (Combo Audio Jack (Headphone & Headset))
2.2.14 HP_MIC (Combo audio jack (Headphone & Headset)) HP_MIC Connector Connector PN Vendor 2SJ3082-086111F SINGATRON Definition Definition HPOUT_L MIC_IN_C HPOUT_R HP_JD AGND AGND www.gigaipc.com... -
Page 36: Usb32_2 (Usb 3.2 Gen 2X1 Port)
2.2.15 USB32_2 (USB 3.2 Gen 2x1 Port) USB 3.2 Gen 2x1 connector Connector PN Vendor 18-A5950-6A33-A TCONN Definition Definition USB_D- USB_D- USB_D+ USB_D+ USB3_RX- USB3_RX- USB3_RX+ USB3_RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ www.gigaipc.com... -
Page 37: Pwr_Bt (Power Button With Led)
2.2.16 PWR_BT (Power button with LED) Power button with LED Connector Connector PN Vendor ML3-AG2HW-Q-R DIPTRONICS www.gigaipc.com... -
Page 38: Dc_In (Screw Type Dc Jack Connector)
2.2.17 DC_IN (Screw type DC Jack connector) Screw Type DC Jack Connector Connector PN Vendor 655-360-000 SHEN-MING www.gigaipc.com... -
Page 39: Lan1 (2.5Gbe Lan Port Connector)
State Description Orange On 2.5Gbps data rate Green On 1GMbps data rate 100/10Mbps data rate Link / Connection/ Activity LED Speed LED Pin No. Definition Connector PN Vendor TX+_D1 S22-GB-0006 TX-_D1 JFM4811D-F8AF-4F FOXCONN RX+_D2 BI+_D3 BI-_D3 RX-_D2 BI+_D4 BI-_D4 www.gigaipc.com... -
Page 40: Lan2 (1Gbe Lan Port Connector)
LAN Connector State Description Orange On 1Gbps data rate Green On 100Mbps data rate 10Mbps data rate Link / Connection/ Activity LED Speed LED Pin No. Definition Connector PN Vendor TX+_D1 RT7-GB-0003 TX-_D1 RX+_D2 BI+_D3 BI-_D3 RX-_D2 BI+_D4 BI-_D4 www.gigaipc.com... -
Page 41: Usb32_1 (Usb 3.2 Gen 2X1 Connector)
2.2.20 USB32_1 (USB 3.2 Gen 2x1 connector) USB 3.2 Gen 2x1 connector Connector PN Vendor 18-A5950-6A33-A TCONN Definition Definition USB_D- USB_D- USB_D+ USB_D+ USB3_RX- USB3_RX- USB3_RX+ USB3_RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ www.gigaipc.com... -
Page 42: Hdmi2_21 (Hdmi Connector)
2.2.21 HDMI2_21 (HDMI connector) HDMI Connector Connector PN Vendor QJ11191-DFB1-4F FOXCONN Definition Definition HDMI_D2+ HDMI_CLK- HDMI_D2- HDMI_D1+ HDMI_SCL HDMI_D1- HDMI_SDA HDMI_D0+ HDMI_D0- HDMI_HPD HDMI_CLK+ www.gigaipc.com... -
Page 43: Chapter 3 - Bios
Chapter 3 Chapter 3 – BIOS www.gigaipc.com... -
Page 44: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 45: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 46: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 47: Tpm Configuration
3.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) (Default setting) www.gigaipc.com... - Page 48 Disabled : Disables TPM feature None : (Default setting) Pending operation Disabled : Disables TPM feature Enabled : Enables PH Randomization (Default setting) Disabled : Disables PH Randomization PH Randomization ※ PH Randomization is only support for model : QBi-1355A and QBi-1335A. www.gigaipc.com...
-
Page 49: Cpu Configuration
Intel Trusted Enabled : Enables Intel Trusted Execution Technology (Intel® TXT) Execution Technology is only support for model : QBi-1355A ※ Intel Trusted Execution Technology and QBi-1335A. To speed up CPU frequency transition time from basic frequency to maximum frequency. - Page 50 Enabled : Enables Turbo Mode (Default setting) Turbo Mode Disabled : Disables Turbo Mode Command CPU to enter into low power consumption mode when CPU is under idle mode. C states Enabled : Enables C states (Default setting) Disabled : Disables C states www.gigaipc.com...
-
Page 51: Sata Configuration
Intel VMD feature helps you to control and manage NVMe PCIe SSD. / Enable VMD Enabled : Enables Intel VMD feature controller Disabled : Disables Intel VMD feature (Default setting) Serial ATA Port shows 2.5"/3.5" SATA HDD/SSD information shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 52: Super Io Configuration
Enabled : Enables Serial Port function (Default setting) Disabled : Disables Serial Port function Serial Port 1 Configuration Device settings : Display the specified Serial Port base I/O address and IRQ COM Port Mode : Choose RS-232, RS-422, or RS-485 feature www.gigaipc.com... -
Page 53: Hardware Monitor
CPU Fan Speed Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed System Shows current system temperature Temperature Shows current CPU temperature Temperature Fan Speed Shows current CPU fan Speed www.gigaipc.com... -
Page 54: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Disabled : Disables system to wake on a specific time (Default Wake system setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 55: Network Stack Configuration
Disabled : Disables IPv6 HTTP Support Enabled : Enables IPv6 HTTP Support PXE boot wait time Wait time in seconds, or use ESC key to abort the PXE boot. Media detect count Number of times the presence of media will be checked. www.gigaipc.com... -
Page 56: Nvme Configuration
3.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 57: Offboard Sata Controller Configuration
3.3.9 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 58: Tls Auth Configuration
Press [Enter] to configure advanced items : Server CA Configuration : Enroll Cert : 1. Enroll Cert Using File Enroll Cert 2. Cert GUID : Input digit character in 11111111-2222-3333-4444-1234567 890ab format. 3. Commit Changes and Exit 4. Discard Changes and Exit www.gigaipc.com... -
Page 59: Intel(R) Ethernet Controller I226-V - 10:Ff:e0:30:A2:5C
3.3.11 Intel(R) Ethernet Controller I226-V - 10:FF:E0:30:A2:5C (MAC address may varied based on different motherboard) Shows Intel Ethernet controller information NOTE：MAC address may varied based on different motherboard www.gigaipc.com... -
Page 60: Realtek Pcie Gbe Family Controller (Mac:10:Ff:e0:30:A2:5D)
3.3.12 Realtek PCIe GBE Family Controller (MAC:10:FF:E0:30:A2:5D) (MAC address may varied based on different motherboard) Shows Realtek Ethernet controller information NOTE：MAC address may varied based on different motherboard www.gigaipc.com... -
Page 61: Chipset
Enable/Disable Watchdog Timer function Watchdog Timer Enabled : Enables Watchdog Timer function Disabled : Disabled Watchdog Timer function (Default setting) Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com... -
Page 62: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 63 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full authentication Management Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 64 ’Microsoft UEFI variables file system device MS UEFI CA Key CA’ Certificate in A u t h o r i z e d S i g n a t u r e database(db) www.gigaipc.com...
-
Page 65: Boot
Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Enabled : Enables Built-in EFI Shell Built-in EFI Shell Disabled : Disables Built-in EFI Shell (Default setting) Shows the information of the storage that be installed in the Boot Option system Priorities Choose/set the boot priority www.gigaipc.com... -
Page 66: Save & Exit
Yes : Agree to load optimized defaults Defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
