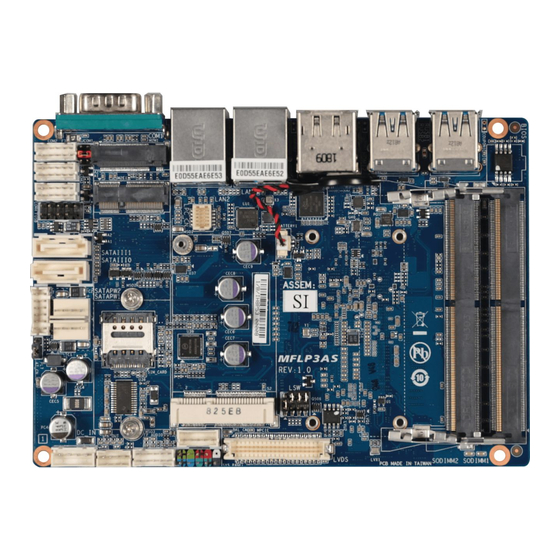

GIGAIPC QBiP-7100A User Manual

3.5” sbc boards
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QBiP-7100A/ QBiP-7200A/
QBiP-7100AT/ QBiP-7200AT/
QBiP-7600A

3.5" SBC Boards

User's Manual 1st Ed

1
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiP-7100A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIGAIPC QBiP-7100A

Summary of Contents for GIGAIPC QBiP-7100A

  • Page 1: Sbc Boards

    QBiP-7100A/ QBiP-7200A/ QBiP-7100AT/ QBiP-7200AT/ QBiP-7600A 3.5” SBC Boards User’s Manual 1st Ed www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 2: Copyright Notice

    GIGAIPC reserves the right to make changes in the product design without notice to its users. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 3: Acknowledgement

    IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 4: Packing List

    QBiP-7100A/ QBiP-7200A/ QBiP-7100AT/ QBiP-7200AT/ QBiP-7600A SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 5: About This Document

    (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 6: Safety Precautions

    12. Do not cover the openings on the device to ensure optimal heat dissipation. 13. Watch out for high temperatures when the system is running. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 8: Fcc Statement

    Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 9: China Rohs Requirements (Cn)

    ○ ○ ○ ○ 连接器及线材 O ： 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下 。 X： 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 标准规定的限量要求 。 备注 ： 此产品所标示之环保使用期限 ， 系指在一般正常使用状况下 。 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 10: China Rohs Requirement (En)

    SJ/T 11363-2006-stipulated requirement. Note: The Environment Friendly Use Period as labeled on this product is applicable under normal usage only www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 11: Table Of Contents

    2.2.3 COM2, COM3, COM4 (Serial port header) ...... 27 2.2.4 FUSB (USB 2.0 header) ............. 28 2.2.5 SATAIII_0, SATAIII_1 (SATA 6GB/S Connector) ....29 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 12 2.2.14 LVDS (LVDS connector) ............. 38 2.2.15 LSW (LVDS resolution jumper) ......... 39 2.2.16 BATTERY (Battery cable connector) ......... 40 2.2.17 JCOM1 (COM1 RI# pin RI#/5V/12V Select) ....... 41 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 13: Chapter1 - Product Specifications

    Chapter 1 Chapter1 - Product Specifications QBiP-7100A/ QBiP-7200A/ QBiP-7100AT/ QBiP-7200AT/ QBiP-7600A www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 14 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 15: Specifications- Qbip-7100A/ Qbip-7200A

    1 x M.2 slot: Expansion Slots - E-key - Supports NGFF-2230 (WiFi/BT) 1 x Mini-PCIe slot - Full card size -Support PCIe X1+USB2.0 -Support 3G/4G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 16 1 x 4-pin Box header power connector (9~36V) Operating temperature: 0°C to 60°C Operating Operating humidity: 0-90% (non-condensing) Properties Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 17: Specifications- Qbip-7100At/ Qbip-7200At

    1 x M.2 slot: Expansion Slots - E-key - Supports NGFF-2230 (WiFi/BT) 1 x Mini-PCIe slot - Full card size -Support PCIe X1+USB2.0 -Support 3G/4G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 18 1 x 4-pin Box header power connector (9~36V) Operating temperature: -20°C to 70°C Operating Operating humidity: 0-90% (non-condensing) Properties Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 19: Specifications- Qbip-7600A

    1 x M.2 slot: Expansion Slots - E-key - Supports NGFF-2230 (WiFi/BT) 1 x Mini-PCIe slot - Full card size -Support PCIe X1+USB2.0 --support 3G/4G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 20 1 x 4-pin Box header power connector (9~36V Full Range) Operating temperature: 0°C to 60°C Operating Operating humidity: 0-90% (non-condensing) Properties Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 21: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 22: Jumpers And Connectors

    Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 23 COM1 (COM RI# pin RI#/5V/12V Select) RUSB1 USB3.0 Connector RUSB2 19 HDMI2_DP HDMI connector (Bottom) & DP connector (Top) 20 LAN1, LAN2 LAN connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 24 23 M2M1 M.2 Slot, SATA/PCIeX4, NGFF2280 24 SIM-CARD Sim Card slot 25 MPCIE Mini PCIe full size, support 3G/4G module SODIMM1 DDR4 SO-DIMM Slot SODIMM2 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 25: Cpu Fan (Cpu Fan Connector)

    CPU FAN (CPU FAN connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 26: System Fan (System Fan Connector)

    System FAN (System FAN connector) Pin 1 System FAN Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 27: Com2, Com3, Com4 (Serial Port Header)

    COM2, COM3, COM4 (Serial port header) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/ 5V/ 12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 28: Fusb (Usb 2.0 Header)

    2.2.4 FUSB (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 29: Sataiii_0, Sataiii_1 (Sata 6Gb/S Connector)

    2.2.5 SATAIII_0, SATAIII_1 (SATA 6GB/S Connector) SATA Connector SATAIII_1,SATAIII_0 Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 30: Gpio_Cnt (General Purpose Input/Output Header )

    Pin 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: Satapw1, Satapw2 (Sata 6Gb/S Power Connector)

    2.2.7 SATAPW1, SATAPW2 (SATA 6Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: At_Cn (At/Atx Power Mode Select Jumper)

    PINREX PH03N2-7BAN000 HORNGTONG Pin No. Definition AT MODE TXD5 ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: Dc_In (Dc In 1X4-Pin Power Connector )

    2.2.9 DC_IN (DC IN 1x4-pin power connector ) Pin 1 DC in connector Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition Power Power www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Spk_Out (Speaker Out Connector)

    Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: Fp_Audio (Front Audio Connector)

    2.2.11 FP_Audio (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition MIC_L MIC_R Detect HPOUT_R FAUDIO_JD No Connect HPOUT_L www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: Bkl_Cn (Back Light Brightness Control Connector)

    2.2.12 BKL_CN (Back light brightness control connector) Pin 1 Back light brightness control Connector PN Vendor connector A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable Connector PN Vendor 721-81-05TW00 PINREX www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: Sys_Panel (Front Panel Header)

    Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 38: Lvds (Lvds Connector)

    Pin 1 LVDS Connector Connector PN Vendor 712-76-40GWE0 PINREX A1252WV-SF-2X20PD01 JOINT-TECH Pin No. Definition Pin No. Definition 3.3V 3.3V SPEC0 SPED0 CLK2+ CLK1+ CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 39: Lsw (Lvds Resolution Jumper)

    1024 x 600 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 40: Battery (Battery Cable Connector)

    2.2.16 BATTERY (Battery cable connector) Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 41: Jcom1 (Com1 Ri# Pin Ri#/5V/12V Select)

    JCOM11 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 42 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
