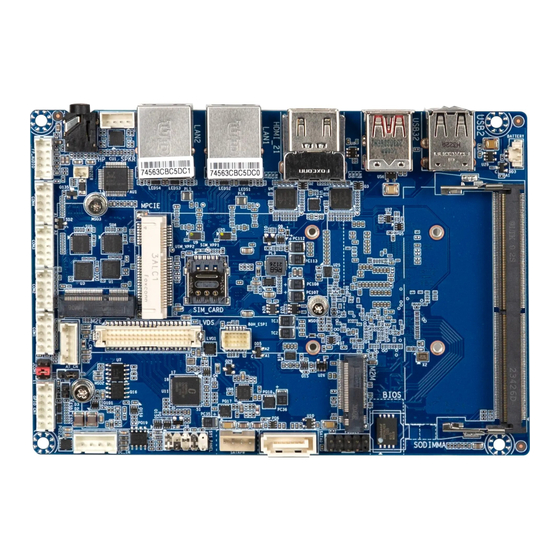

QBiP-N97A

3.5" SBC Boards

1
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiP-N97A and is the answer not in the manual?

Questions and answers

Related Manuals for GIGAIPC QBiP-N97A

Summary of Contents for GIGAIPC QBiP-N97A

  • Page 1: Sbc Boards

    QBiP-N97A 3.5” SBC Boards www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 2: Copyright Notice

    GIGAIPC reserves the right to make changes in the product design without notice to its users. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 3: Acknowledgement

    IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 4: Packing List

    Item Quantity QBiP-N97A SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 5: About This Document

    (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 6: Safety Precautions

    11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 8: Fcc Statement

    Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 9: China Rohs Requirements (Cn)

    ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○ 连接器及线材 O： 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下。 X： 表示该有毒有害物质至少在该部件的 某一均质材料中的含量超出 SJ/T 11363-2006 标准规定的限量要求。 备注： 此产品所标示之环保使用期限， 系指在一般正常使用状况下。 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 10: China Rohs Requirement (En)

    SJ/T 11363-2006-stipulated requirement. Note: The Environment Friendly Use Period as labeled on this product is applicable under normal usage only www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 11: Table Of Contents

    SYS_PANEL (Front panel header) ........28 2.2.8 DC_IN (DC IN 1x4pin power connector) ......29 2.2.9 GPIO_CNT (General Purpose input/output header) ..30 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 12 Chapter 3 – BIOS Introduction ..............50 The Main Menu..............51 Advanced ................. 52 3.3.1 TPM Configuration ............53 3.3.2 CPU Configuration ............55 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 13 (M A C a d d r e s s m a y v a r i e d b a s e d o n d i f f e r e n t motherboard)..............67 Chipset ................68 Security ................70 Boot .................. 73 Save & Exit ............... 74 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 14: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications QBiP-N97A www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 15 3.32 95.2 101.7 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 16: Specifications- Qbip-N97A

    2 x COM headers (RS-232) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header 1 x Buzzer header www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 17 OS Compatibility Windows 10/11 (x64) Operating temperature: 0°C to 60°C Operating Operating humidity: 0-90% (non-condensing) Properties Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 18: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 19: Jumpers And Connectors

    Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 20 Backlight Control connector 17 LVDS LVDS connector M.2 slot, 2230 E-key 18 M2E 19 MPCIE Mini-PCIe slot 20 BUZZER Buzzer header 21 SIM_CARD 3G/4G SIM Slot www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 21 Line out connector 24 LAN1, LAN2 LAN connector 25 HDMI_21 HDMI connector USB 3.2 Gen 2x1 connector 26 USB32 27 USB2 USB 2.0 connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 22: Fan (Fan Connector)

    CPU/System FAN Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Connector type 1 2 3 4 1x4pin header, pitch 1.25mm Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 23: Battery

    2.2.2 BATTERY Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Connector type 1x2pin header, pitch 1.25mm Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 24: Sodimma (Ddr5 So-Dimm Socket)

    2.2.3 SODIMMA (DDR5 SO-DIMM socket) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 25: Fusb20 (Usb 2.0 Header)

    Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Connector type 2x5pin header, pitch 2.54mm Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 26: Sata0 (Sata 6Gb/S Connector)

    2.2.5 SATA0 (SATA 6Gb/s Connector) Pin 1 SATA 6Gb/s Connector Connector PN Vendor WAT3M-07A1G3BU4W WINWIN ABA-SAT-054-S15 LOTES Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 27: Satapw (Sata Power Connector)

    SATAPW (SATA power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-91-045W00 PINREX Connector type 1x4pin header, pitch 2.54mm Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 28: Sys_Panel (Front Panel Header)

    2x5pin header, pitch 2.54mm Pin No. Definition HDD LED_p Power LED_p HDD LED_n Power LED_n Power button_p Reset Button Power button_n No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 29: Dc_In (Dc In 1X4Pin Power Connector)

    DC_IN (DC IN 1x4pin power connector) Pin 1 DC in Connector Connector PN Vendor 753-81-04TW00 PINREX Connector type 1x4pin header, pitch 2.5mm Pin No. Definition DC in DC in www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 30: Gpio_Cnt (General Purpose Input/Output Header)

    Vendor 725-81-12TW00 PINREX Pin No. Definition Connector type GPIO-output_1 2x6pin header, pitch 2.0mm GPIO-input_1 GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 SMBus Clock SMBus DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 31 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) Connector type 3-4 Close: 2x3pin header, pitch 2.0mm RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: Com1, Com2, Com3, Com4 (Serial Port Header)

    COM3, COM4 : Support RS-232 only RXD- – RXD+ – – – – – – – – – No Connect – – RI/5V/12V – – www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: Fp_Audio (Front Panel Audio Header)

    Front panel audio Connector Connector PN Vendor 725-81-10TW00 PINREX Connector type 2x5pin header, pitch 2.0mm Pin No. Definition MIC-LEFT MIC-RIGHT Detect LINE-RIGHT JACKSENCE Detect LINE-LEFT www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Spkr (Speaker Out Connector)

    Vendor A2001WV-04P146 JOINT-TECH Connector type 1x4pin header, pitch 2.0mm Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: Me (Me Disable Jumper)

    2.2.14 ME (ME Disable jumper) ME Disable Connector Connector PN Vendor 220-96-02GBK1 PINREX Connector type 1x2pin header, pitch 2.0mm ME Disable jumper Enable (Default setting) Disable www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: At_Cn (At/Atx Mode Select Jumper)

    1-2 Close : AT mode. 220-96-03GB01 PINREX 2-3 Close : ATX mode. Connector type (Default setting) 1x3pin header, pitch 2.0mm Pin No. Definition AT MODE Detect ATX MODE www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: Bkl_Cn (Backlight Control Connector)

    Pin 1 Backlight Control connector Connector PN Vendor 721-81-05TW00 PINREX Connector type 1x5pin header, pitch 2.0mm Pin No. Definition 5V (optional 12V) Backlight Enable www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 38: Lvds (Lvds Connector)

    Note: *The LVDS output connector of the unit is only intended to be CLK2+ connected to an UL/IEC/EN approval CLK1+ equipment with fire enclosure. CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 39: M2E (M.2 Slot, 2230 E-Key)

    USB_Dp DISABLE USB_Dn PE Reset Connector PN Vendor Pin No. Definition Pin No. Definition APCI0095-P002A LOTES 80152-8521 BELLWETHER PCIE1 TXp 2E0BC21-S85BE-LH FOXCONN PCIE1 TXn www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 40: Mpcie (Mini Pcie Slot)

    PCIE Clock Request SIM VCC SIM DATA PCIE Clock n SIM Clock PCIE Clock p SIM Reset 3.3V Connector PN Vendor WLAN_DISABLE Reset AS0B221-S99Q-7H FOXCONN www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 41: Buzzer (Buzzer Header)

    2.2.20 BUZZER (Buzzer header) Pin 1 Buzzer header Connector PN Vendor 712-71-02TW01 PINREX A1250WV-02P JOINT-TECH Connector type 1x2pin header, pitch 1.25mm Pin No. Definition Buzzer www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 42: Sim_Card (3G/4G Sim Slot)

    2.2.21 SIM_CARD (3G/4G SIM Slot) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 43: M2M (M.2 Slot, 2280 M-Key)

    3.3V 3.3V 3.3V Pin No. Definition Pin No. Definition 3.3V SUS_CLK Detect 3.3V 3.3V 3.3V PCIE1 RXn Connector PN Vendor PCIE1 RXp 80159-8521 BELLWETHER www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 44: Hp (Line Out Connector)

    Connector PN Vendor WTJ-035-47ABZ1 KYOYAKU Pin No. Definition LINE out - Right LINE out - Left LINE out - Right JackSence LINE out - Left www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 45: Lan1, Lan2 (Lan Connector)

    Green On 1Gbps data rate 100M & 10Mbps data rate Connector PN Vendor RB1-GB-0010 Pin No. Definition TX1+ TX1- TX2+ TX2- TX3+ TX3- TX4+ TX4- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 46: Hdmi_21 (Hdmi Connector)

    TX2p Hot Plug Hot Plug TX2n TX2n Detect Detect TX1p TX1p TX1n TX1n Connector PN Vendor TX0p TX0p QJ11191-DFB1-4F FOXCONN TX0n TX0n CLKp CLKp www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 47: Usb32 (Usb 3.2 Gen 2X1 Connector)

    2.2.26 USB32 (USB 3.2 Gen 2x1 connector) USB Connector Connector PN Vendor 18-A5950-6A33-A TCONN Definition Definition USB_Dn USB_Dn USB_Dp USB_Dp USB3_RXn USB3_RXn USB3_RXp USB3_RXp USB3_TXn USB3_TXn USB3_TXp USB3_TXp www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 48: Usb2 (Usb 2.0 Connector)

    2.2.27 USB2 (USB 2.0 connector) USB Connector Connector PN Vendor UB1112C-8FDE-4F FOXCONN 185-0820112-GB YSELEC Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 49: Chapter 3 - Bios

    Chapter 3 Chapter 3 – BIOS www.gigaipc.com...

  • Page 50: Introduction

    Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com...

  • Page 51: The Main Menu

    ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com...

  • Page 52: Advanced

    Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com...

  • Page 53: Tpm Configuration

    3.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM TPM Device dTPM : External TPM (When using External TPM module or having Selection TPM chip on MB) (Default setting) www.gigaipc.com...
  • Page 54 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...

  • Page 55: Cpu Configuration

    Enabled : Enables C states (Default setting) Disabled : Disables C states CPU will adjust frequency depends on it's loading. CPU P states Enabled : Enables CPU P states function (Default setting) Disabled : Disables CPU P states function www.gigaipc.com...

  • Page 56: Sata Configuration

    3.3.3 SATA Configuration Item Description Serial ATA Port shows 2.5" SATA HDD/SSD information www.gigaipc.com...

  • Page 57: It8786 Super Io Configuration

    Enabled : Enables allows you to configure the serial port settings Disabled : if Disabled, displays no configuration for the serial port Serial Port 4 Configuration Device settings : Display the specified Serial Port base I/O address and IRQ www.gigaipc.com...

  • Page 58: Hardware Monitor

    Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed System Shows current system temperature temperature CPU temperature Shows current CPU temperature CPU Fan Speed Shows current CPU fan Speed www.gigaipc.com...

  • Page 59: S5 Rtc Wake Settings

    Enable or Disable System to wake on a specific time. Disabled : Disables system to wake on a specific time (Default Wake system setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com...

  • Page 60: Ami Graphic Output Protocol Policy

    3.3.7 AMI Graphic Output Protocol Policy Item Description Choose default monitor output when there are more than one monitor Output Select plugged on the motherboard. www.gigaipc.com...

  • Page 61: Network Stack Configuration

    Disabled : Disables Ipv6 PXE Support Enabled : Enables Ipv6 PXE Support PXE boot wait time Wait time in seconds, or use ESC key to abort the PXE boot. Media detect count Number of times the presence of media will be checked. www.gigaipc.com...

  • Page 62: Nvme Configuration

    3.3.9 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com...

  • Page 63: Offboard Sata Controller Configuration

    3.3.10 Offboard SATA Controller Configuration www.gigaipc.com...

  • Page 64: Digital Io Port Configuration

    Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com...

  • Page 65: Tls Auth Configuration

    Press [Enter] to configure advanced items : Server CA Configuration : Enroll Cert : 1. Enroll Cert Using File Enroll Cert 2. Cert GUID : Input digit character in 11111111-2222-3333-4444-1234567 890ab format. 3. Commit Changes and Exit 4. Discard Changes and Exit www.gigaipc.com...

  • Page 66: Intel(R) Ethernet Controller (3) I225-V - 74:56:3C:bc:5D:c0

    3.3.13 Intel(R) Ethernet Controller (3) I225-V - 74:56:3C:BC:5D:C0 (MAC address may varied based on different motherboard) Shows Intel Ethernet controller information NOTE：MAC address may varied based on different motherboard 　 www.gigaipc.com...

  • Page 67: Intel(R) Ethernet Controller (3) I225-V - 74:56:3C:bc:5D:c1

    3.3.14 Intel(R) Ethernet Controller (3) I225-V - 74:56:3C:BC:5D:C1　 (MAC address may varied based on different motherboard) Shows Intel Ethernet controller information NOTE：MAC address may varied based on different motherboard 　 www.gigaipc.com...

  • Page 68: Chipset

    Enabled : Enables onboard audio controller (Default setting) Disabled : Disables onboard audio controller ErP Lowest Enable/Disable power saving funtion Power State Enabled : Enables ERP Lowest Power State Mode Mode Disabled : Disabled ERP Lowest Power State Mode (Default setting) www.gigaipc.com...
  • Page 69 Enable/Disable Watchdog Timer function Watchdog Enabled : Enables Watchdog Timer function Timer Disabled : Disabled Watchdog Timer function (Default setting) Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com...

  • Page 70: Security

    To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com...
  • Page 71 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without Key Management full authentication Press <Enter> to configure the advanced items www.gigaipc.com...
  • Page 72 Copy NVRAM content of Secure Secure Boot Device Guard ready Boot variables to files in a root variables folder on a file system device system must not list ’Microsof t UEFI C A’ MS UEFI CA Key Certificate in Authorized Signature database(db) www.gigaipc.com...

  • Page 73: Boot

    Enable/Disable Built-in EFI Shell Built-in EFI Shell Enabled : Enables Built-in EFI Shell Disabled : Disables Built-in EFI Shell (Default setting) Boot Option Shows the information of the storage that be installed in the system Priorities Choose/set the boot priority www.gigaipc.com...

  • Page 74: Save & Exit

    Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
