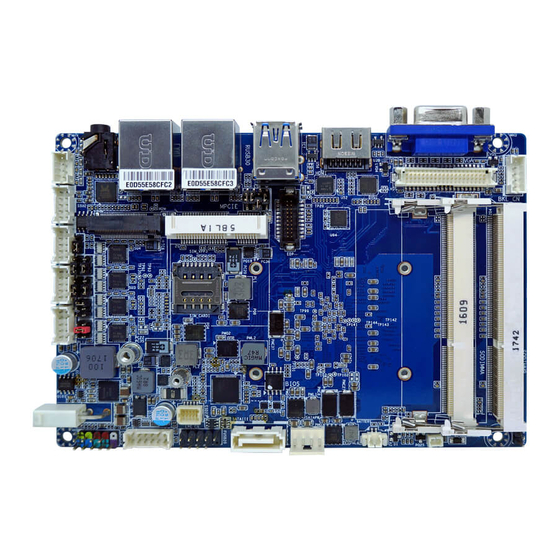

QBiP-4200A (MZAPLAS)
3.5" SBC Boards
User's Manual 1st Ed
1
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiP-4200A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIGAIPC QBiP-4200A

Summary of Contents for GIGAIPC QBiP-4200A

  • Page 1 QBiP-4200A (MZAPLAS) 3.5” SBC Boards User’s Manual 1st Ed www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 2: Copyright Notice

    GIGAIPC reserves the right to make changes in the product design without notice to its users. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 3: Acknowledgement

    IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 4: Packing List

    Item Quantity QBiP-4200A (MZAPLAS) SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 5: About This Document

    (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 6: Safety Precautions

    11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 8: Fcc Statement

    Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 9: China Rohs Requirements (Cn)

    ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○ 连接器及线材 O： 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下。 X： 表示该有毒有害物质至少在该部件的 某一均质材料中的含量超出 SJ/T 11363-2006 标准规定的限量要求。 备注： 此产品所标示之环保使用期限， 系指在一般正常使用状况下。 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 10: China Rohs Requirement (En)

    SJ/T 11363-2006-stipulated requirement. Note: The Environment Friendly Use Period as labeled on this product is applicable under normal usage only www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 11: Table Of Contents

    JCOM11 (COM11 RI# pin RI#/5V/12V Select) ....25 2.2.6 JCOM12 (COM1 RS-232/RS-422/RS-485 Select) ..... 26 2.2.7 JRS11-JRS14 (RS11-14 select jumper for serial port) ..27 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 12 2.2.17 GPIO_CNT (General Purpose input/output header) ..37 2.2.18 SYS_PANEL (Front panel header) ........38 2.2.19 EDP (Embedded Display Port Connector) ...... 39 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 13: Chapter1 - Product Specifications

    Chapter 1 Chapter1 - Product Specifications QBiP-4200A (MZAPLAS) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 14 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 15: Specifications- Qbip-4200A

    - M-key - SATA 6Gb/s Expansion Slots - Supports NGFF-2240 cards 1 x Mini-PCIe slot - Full card size -Support PCIe X1+USB2.0 --support 3G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 16 1 x 2 pin ATX power connector (9~36V) Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Operating Properties Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 17: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 18: Jumpers And Connectors

    Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 19 15 SATAIII SATA 6GB/S Connector 16 FUSB2_1 USB 2.0 header 17 GPIO_CNT General Purpose input/output header 18 SYS_PANEL Front panel header 19 eDP eDP Connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 20: Fan (Fan Connector)

    FAN (FAN connector) PIN 1 CPU/System FAN Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 21: Dc In (Dc In 1X2Pin Atx Power Connector)

    2.2.2 DC IN (DC IN 1x2pin ATX power connector) DC 1 x 2 pin ATX Power Connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 22: Com1, Com2, Com3, Com4 (Serial Port Header)

    COM1, COM2, COM3, COM4 (Serial port header) Pin1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition DTRD No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 23: Spk_Out (Speaker Out Connector)

    Speaker out connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 24: Jcom11 (Com11 Ri# Pin Ri#/5V/12V Select)

    Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) (Default Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 25: Jcom12 (Com1 Rs-232/Rs-422/Rs-485 Select)

    RXD232 1-2 Close: RXD1 RS-232 RXD422 RXD1 3-4 Close: RS-422 RXD485 (Default Setting) RXD1 5-6 Close: RS-485 Connector PN Vendor 220-97-03GB01 PINREX PH06N53BAZ000 HORNGTONG www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 26: Jrs11-Jrs14 (Rs11-14 Select Jumper For Serial Port)

    PIN 1 PIN 1 RS11-14 select jumper for serial port Connector PN Vendor 1-2 Close: 200-72-PBGB03 PINREX RS422/RS485 MJ20-O-102S-H3.5-BK HSD-CONN 2-3 Close: RS232 (Default Setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 27: At_Cn (At/Atx Power Mode Select Jumper)

    1-2 Close : AT mode. 220-96-03GB01 PINREX 2-3 Close : ATX mode. PH03N2-7BAN000 HORNGTONG (Default setting) Pin No. Definition AT MODE Detect ATX MODE www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 28: Lsw (Lvds Resolution Jumper)

    1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 29: Lvds (Lvds Connector)

    Pin No. Definition Pin No. Definition Pin No. Definition Connector PN Vendor 3.3V 712-76-40GWE0 PINREX A1252WV-SF-2X20PD01 JOINT-TECH 3.3V SPEC0 SPED0 CLK2+ CLK1+ CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 30: Bkl_Cn (Back Light Brightness Control Connector)

    2.2.11 BKL_CN (Back light brightness control connector) PIN 1 Back light brightness control Connector PN Vendor connector 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: 2.2.12 Buzzer

    2.2.12 BUZZER PIN 1 Buzzer Connector PN Vendor 712-71-02TW01 PINREX A1250WV-02P JOINT-TECH Pin No. Definition -SPKR +VS5 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: 2.2.13 Battery

    2.2.13 BATTERY PIN 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.0V RTC www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: Satapw (Sata 6Gb/S Power Connector)

    2.2.14 SATAPW (SATA 6Gb/s power connector) PIN 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition +12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Sataiii (Sata 6Gb/S Connector)

    2.2.15 SATAIII (SATA 6GB/S Connector) SATA 6GB/S Connector SATAIII Connector PN Vendor WAT3M-07A1G3BU4W WINWIN ABA-SAT-054-S15 LOTES Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: Fusb2_1 (Usb 2.0 Header)

    2.2.16 FUSB2_1 (USB 2.0 header) PIN 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: Gpio_Cnt (General Purpose Input/Output Header)

    PIN 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: Sys_Panel (Front Panel Header)

    Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 38: Edp (Embedded Display Port Connector)

    Note:Please ensure pin 8 is connected to Ground. Definition Definition Connector PN Vendor eDP_1+ A1252WV-SF- JOINT-TECH eDPAUX- 2X10PN6BG1G00L eDP_0- 50286-02071-001 ACES eDP_3- eDPAUX+ eDP_0+ eDP_2- eDP_3+ eDP_2+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
