Summary of Contents for GIGAIPC QBiP-1215EA
-
Page 1: Sbc Boards

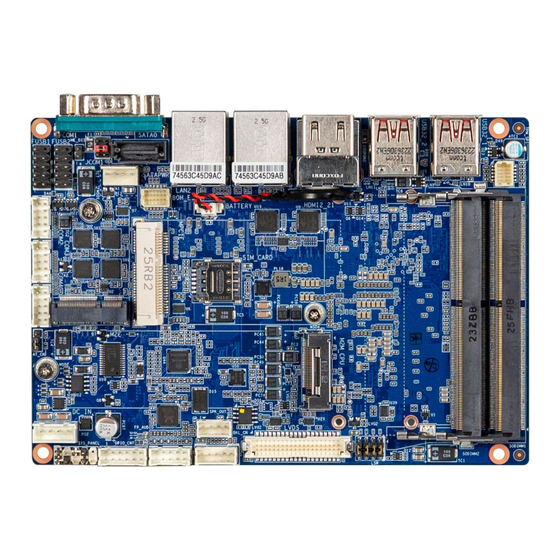

QBiP-1255A/ QBiP-1235A/ QBiP-1215EA 3.5” SBC Boards www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation ITE is a trademark of Integrated Technology Express, Inc. • • IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Before setting up your product, please make sure the following items have been shipped: Item Quantity QBiP-1255A/ QBiP-1235A / QBiP- 1215EA MB SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 10: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 11: Table Of Contents
LAN1, LAN2 (2.5GbE LAN connector) ......25 2.2.5 HDMI2_21 (HDMI connector) ........26 2.2.6 USB32_1, USB32_2 (USB 3.2 Gen 2x1 connector) ..27 2.2.7 TPM_SPI (Trusted Platform Module Connector) ..28 2.2.8 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot) ....29 www.gigaipc.com... - Page 12 2.2.25 MPCIE (Mini PCIe Slot) ..........46 2.2.26 BATTERY (Battery cable Connector) ......47 2.2.27 M2M_CPU (M.2 Slot, 2280 M-key) ....... 48 Chapter 3 – BIOS Introduction ..............50 The Main Menu............. 51 Advanced ..............52 3.3.1 TPM Configuration ............53 www.gigaipc.com...
- Page 13 3.3.9 NVMe Configuration ............. 62 3.3.10 Offboard SATA Controller Configuration ...... 63 3.3.11 Digital IO Port Configuration ........64 3.3.12 Tls Auth Configuration ..........65 Chipset ................66 Security ................. 67 Boot ................70 Save & Exit ..............71 www.gigaipc.com...
-
Page 14: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 15 18.1 101.7 www.gigaipc.com...
-
Page 16: Specifications
Specifications QBiP-1255A QBiP-1235A QBiP-1215EA Motherboard 3.5’’ SBC Form Factor 146W x 101.7Dmm Intel® Core™ i7- Intel® Core™ i5- Intel® Core™ i3- 1255U Processor 1235U Processor 1215UE Processor 10nm Enhanced 10nm Enhanced 10nm Enhanced Superfin (Intel 7), Superfin (Intel 7), Superfin (Intel 7),... - Page 17 QBiP-1255A QBiP-1235A QBiP-1215EA Motherboard 1 x 4-pin box power connector (DC in +9V ~ 36VDC) 1 x SATA Power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header...
-
Page 18: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 19: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 20 GPIO_CNT General purpose input / ouput header SYS_PANEL Front panel header DC_IN DC IN 1x4 pin power connector AT_CN AT/ATX mode select jumper COM2, COM3, Serial port header (RS-232/422/485) COM4 FUSB1, FUSB2 USB 2.0 headers ME_DIS ME Disable jumper www.gigaipc.com...
- Page 21 Code Description RI# pin RI#/5V/12V Select jumper for COM1 JCOM1 port SATAPWR SATA power connector SATA0 SATA 6Gb/s connector M.2 Slot , 2230 E-key MPCIE Mini PCIe Slot BATTERY Battery cable connector M2M_CPU M.2 Slot , 2280 M-key www.gigaipc.com...
-
Page 22: Cpu_Fan (Cpu Fan Connector)
2.2.1 CPU_FAN (CPU fan connector) Pin 1 CPU fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 23: Sys_Fan (System Fan Connector)
2.2.2 SYS_FAN (System fan connector) Pin 1 System fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 24: Com1
2.2.3 COM1 (Serial port connector, (RS-232/422/485 & RI/5V/12V)) Serial Port Connector Connector PN Vendor SM41D1P1122N33N1 FENYING Pin No. RS-232 RS-422 RS-485 Full Duplex Half Duplex TXD- TXD+ RXD+ – RXD- – – – – – – – – – www.gigaipc.com... -
Page 25: Lan1, Lan2 (2.5Gbe Lan Connector)
LAN1, LAN2 (2.5GbE LAN connector) 2.5GbE LAN Connector State Description Yellow On 2.5Gbps data rate Green On 1Gbps data rate 100Mbps data rate 10Mbps data rate Pin No. Definition BI_DA+ Connector PN Vendor BI_DA- RB1-GB-0009 BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- www.gigaipc.com... -
Page 26: Hdmi2_21 (Hdmi Connector)
2.2.5 HDMI2_21 (HDMI connector) HDMI Connector Connector PN Vendor QJ11191-DFB1-4F FOXCONN Pin No. Definition Pin No. Definition TX2p CLKn TX2n TX1p TX1n TX0p Hot Plug TX0n Detect CLKp www.gigaipc.com... -
Page 27: Usb32_1, Usb32_2 (Usb 3.2 Gen 2X1 Connector)
2.2.6 USB32_1, USB32_2 (USB 3.2 Gen 2x1 connector) USB 3.2 Gen 2x1 connector Connector PN Vendor 18-A5950-6A33-A TCONN Definition Definition USB_D1n USB_D2n USB_D1p USB_D2p USB_Dp USB_Dp USB3_RX1n USB3_RX2n USB3_RX1p USB3_RX2p USB3_TX1n USB3_TX2n USB3_TX1p USB3_TX2p www.gigaipc.com... -
Page 28: Tpm_Spi (Trusted Platform Module Connector)
2.2.7 TPM_SPI (Trusted Platform Module Connector) Pin 1 TPM Module Connector Connector PN Vendor 87216-1004-06 ACES Pin No. Definition TPM_CLK SPI_CS#2 TPM_SO TPM_RST# TPM_SI +V3.3A www.gigaipc.com... -
Page 29: Sodimm1, Sodimm2 (Ddr4 So-Dimm Slot)
2.2.8 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot) www.gigaipc.com... -
Page 30: Lsw (Lvds Resolution Jumper)
1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com... -
Page 31: Lvds (Lvds Connector)
But below model no need to add. A0~A3 is odd channel 0~3, A4~A7 is even channel. Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN CLK2+ approval equipment with fire enclosure. CLK1+ CLK2- www.gigaipc.com... -
Page 32: Bkl_Cn (Backlight Control Header)
2.2.11 BKL_CN (Backlight control header) Pin 1 Backlight control header Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com... -
Page 33: Spk_Out (Speaker Out Connector)
2.2.12 SPK_OUT (Speaker out connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 34: Fp_Audio (Front Audio Connector)
2.2.13 FP_AUDIO (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L MIC_JD FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 35: Gpio_Cnt (General Purpose Input/Output Header)
2.2.14 GPIO_CNT (General Purpose input/output header) Pin 1 GPIO Connector Pin No. Definition SMBus DATA Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPIO-output_1 A2004WV-2X06P46 JOINT-TECH GPIO-input_1 GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 SMBus Clock www.gigaipc.com... -
Page 36: Sys_Panel (Front Panel Header)
2.2.15 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05GW5W PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 37: Dc_In (Dc In 1X4 Pin Power Connector)
2.2.16 DC_IN (DC IN 1x4 pin power connector) Pin 1 DC IN connector Connector PN Vendor 753-81-04TW00 PINREX 1 2 34 Pin No. Definition Power Power www.gigaipc.com... -
Page 38: At_Cn (At/Atx Mode Select Jumper)
2.2.17 AT_CN (AT/ATX mode select jumper) Pin 1 AT/ATX mode select jumper Connector PN Vendor 220-96-03GB001K PINREX Pin No. Definition AT MODE TXD5 ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 39: Com2, Com3, Com4 (Serial Port Header, Rs-232/422/485)
Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH RS-232 RS-422 RS-485 Full Duplex Half Duplex TXD+ TXD- RXD- — RXD+ — — — — — — — — — No Connect — — RI/5V/12V — — www.gigaipc.com... -
Page 40: Fusb1, Fusb2 (Usb 2.0 Headers)
2.2.19 FUSB1, FUSB2 (USB 2.0 headers) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 41: Me_Dis (Me Disable Jumper)
2.2.20 ME_DIS (ME Disable jumper) ME Disable Connector Connector PN Vendor 220-96-02GBK1 PINREX ME Disable jumper Default Enable www.gigaipc.com... -
Page 42: Jcom1 (Ri# Pin Ri#/5V/12V Select Jumper For Com1 Port)
2.2.21 JCOM1 (RI# pin RI#/5V/12V Select jumper for COM1 port) Pin 1 JCOM1 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: 5V (Power COM) PH06N53BAZ000 HORNGTONG 3-4 Close: RI (Stand COM) (Default-Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 43: Satapwr (Sata Power Connector)
2.2.22 SATAPWR (SATA power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX Pin No. Definition www.gigaipc.com... -
Page 44: Sata0 (Sata 6Gb/S Connector)
2.2.23 SATA0 (SATA 6Gb/s connector) SATA Connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 45: M2E (M.2 Slot, 2230 E-Key)
PCIE CLOCKp PCIE CLOCKn SUSCLK Pin No. Definition Pin No. Definition PCIE Clock 3.3V PCIRST Request 3.3V PCIE wake up BT_Disable WLAN_DISABLE 3.3V 3.3V Pin No. Definition Pin No. Definition Connector PN Vendor 80152-8521 BELLWETHER PCIE_TXp APCI0095-P002A LOTES PCIE_TXn CL_RST www.gigaipc.com... -
Page 46: Mpcie (Mini Pcie Slot)
Pin No. Definition Pin No. Definition USB Dp PCIE WAKE 3.3V 3.3V 3.3V PCIE Clock SIM PWR Request SIM DATA PCIE Clock n SIM Clock PCIE Clock p SIM Reset 3.3V UIM VPP3 Connector PN Vendor WLAN_DISABLE AS0B221-S99Q-7H FOXCONN Reset www.gigaipc.com... -
Page 47: Battery (Battery Cable Connector)
2.2.26 BATTERY (Battery cable Connector) Pin 1 Battery cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 48: M2M_Cpu (M.2 Slot, 2280 M-Key)
PCI Reset PCIE Clock Request SSD LED PCIE Clock n PCIe Wake# 3.3V PCIE Clock p 3.3V 3.3V Pin No. Definition Pin No. Definition 3.3V SUSCLK Detect 3.3V 3.3V 3.3V PCIE1 RXn Connector PN Vendor PCIE1 RXp 2E0BC41-C85CM-LH FOXCONN www.gigaipc.com... -
Page 49: Chapter 3 - Bios
Chapter 3 Chapter 3 – BIOS www.gigaipc.com... -
Page 50: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 51: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 52: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 53: Tpm Configuration
3.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) www.gigaipc.com... - Page 54 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...
-
Page 55: Cpu Configuration
Enabled : Enables Turbo Mode (Default setting) Turbo Mode Disabled : Disables Turbo Mode Command CPU to enter into low power consumption mode when CPU is under idle mode. C states Enabled : Enables C states (Default setting) Disabled : Disables C states www.gigaipc.com... -
Page 56: Sata Configuration
Intel VMD feature helps you to control and manage NVMe PCIe SSD. / Enable VMD Enabled : Enables Intel VMD feature controller Disabled : Disables Intel VMD feature (Default setting) Serial ATA Port shows SATA HDD/SSD information shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 57: It8786 Super Io Configuration
Disabled : if Disabled, displays no configuration for the serial port Device settings : Serial Port 3 Display the specified Serial Port base I/O address and IRQ Configuration COM Port Mode : Serial Port 4 Choose RS-232, RS-422, or RS-485 feature Configuration www.gigaipc.com... -
Page 58: Hardware Monitor
Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed CPU Temperature Shows current CPU temperature System Shows current system temperature Temperature CPU Fan Speed Shows current CPU fan Speed SYS Fan Speed Shows current System fan Speed www.gigaipc.com... -
Page 59: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 60: Ami Graphic Output Protocol Policy
3.3.7 AMI Graphic Output Protocol Policy Item Description Choose default monitor output when there are more than one monitor plugged Output Select on the motherboard. www.gigaipc.com... -
Page 61: Network Stack Configuration
Disabled : Disables IPv6 HTTP Support Enabled : Enables IPv6 HTTP Support PXE boot wait time Wait time in seconds, or use ESC key to abort the PXE boot. Media detect count Number of times the presence of media will be checked. www.gigaipc.com... -
Page 62: Nvme Configuration
3.3.9 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 63: Offboard Sata Controller Configuration
3.3.10 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 64: Digital Io Port Configuration
Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com... -
Page 65: Tls Auth Configuration
Press [Enter] to configure advanced items : Server CA Configuration : Enroll Cert : Enroll Cert 1. Enroll Cert Using File 2. Cert GUID : Input digit character in 11111111-2222-3333-4444-1234567 890ab format. 3. Commit Changes and Exit 4. Discard Changes and Exit www.gigaipc.com... -
Page 66: Chipset
Enable/Disable Watchdog Timer function Watchdog Timer Enabled : Enables Watchdog Timer function Disabled : Disabled Watchdog Timer function (Default setting) Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com... -
Page 67: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 68 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 69 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...
-
Page 70: Boot
Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Shows the information of the storage that be installed in the system Boot Option #1 Choose/set the boot priority www.gigaipc.com... -
Page 71: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
