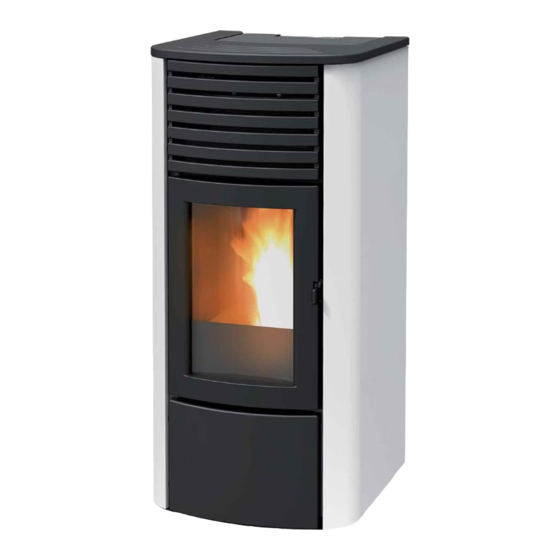

- Page 1 INSTALLATION GUIDE PELLET STOVE CLIO HYDRO 16 S2 CLIO HYDRO 23 S2 PART 1 - REGULATIONS AND ASSEMBLY Instructions in English...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ....................II INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION ......................9 3-DRAWINGS AND TECHNICAL FEATURES ..............19 4-INSTALLATION AND ASSEMBLY ................24 5-ASSEMBLING METAL STOVE SIDES ................28 6-REMOVING THE UPPER PANEL ................32 7-OPENING LOWER DOOR ..................33 8-INSTALLATION AND ASSEMBLY ................34 9-LOADING THE PELLETS ...................37 10-HYDRAULIC CONNECTION ..................39... -
Page 3: Introduction
No part of this manual may be translated into other languages, adapted and/or reproduced, even in part, in other mechanical and/or electronic form or media, for photocopies, recordings or other, without the prior written authorisation of MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The owner company reserves its rights according to law. -
Page 4: 1-Warnings And Warranty Conditions
1-WARNINGS AND WARRANTY CONDITIONS SAFETY WARNINGS • The installation, electrical connection, operating test and maintenance must only be carried out by a qualified operator. • Install the product in compliance with the laws and regulations in force. • Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator. - Page 5 1-WARNINGS AND WARRANTY CONDITIONS • Do not dry laundry on the product. Any drying racks or the like must be kept at a safe distance from the product. Fire hazard. • The product maintenance operations must be exclusively carried out by a qualified operator on a yearly basis.
- Page 6 1-WARNINGS AND WARRANTY CONDITIONS • Do not allow the product to come into contact with water, it contains live electrical parts. • Do not wash the product with water (or other liquids) as they could penetrate inside the unit, damaging the electrical insulation with the risk of electrocution. • Do not use detergents to wash the stove, they could damage the aesthetic parts of the product.
- Page 7 1-WARNINGS AND WARRANTY CONDITIONS • The sound pressure level of this appliance does not exceed 70 dB(A). • Live electrical parts: only power the product once it has been fully assembled. • Disconnect the product from the 230V power supply before performing any maintenance operations.
- Page 8 1-WARNINGS AND WARRANTY CONDITIONS INFORMATION: • Please contact the retailer or qualified personnel for any information, problem or malfunction. • Only use the fuel specified by the manufacturer. • When the product is switched on for the first time, it is normal for it to emit smoke due to the paint heating up for the first time. Therefore make sure the room it is installed in is well-ventilated.
- Page 9 1-WARNINGS AND WARRANTY CONDITIONS WARRANTY CONDITIONS For the duration, terms, conditions, limitations of the MCZ conventional warranty, please refer to the specific warranty card that is included with the product. Information for management of waste electrical and electronic equipment containing batteries and accumulators This symbol appears on the product, on the batteries, on the accumulators or on their packaging or on their documentation;...
- Page 10 1-WARNINGS AND WARRANTY CONDITIONS WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT The owner is the sole party responsible for demolishing and disposing of the product. This must be performed in compliance with laws related to safety and environmental protection in force in his/her country. At the end of its working life, the product must not be disposed of as urban waste.
-
Page 11: 2-Installation
2-INSTALLATION LEGENDA WHERE TO DISPOSE MATERIALS Metal Glass If there is any, to be disposed of separately based on the material used: Tiles or ceramics OUTER CLADDING Stone Glass ceramic (fire door): to be disposed of with inert or mixed waste If there is any, to be disposed of separately based on the material used: Tempered glass (oven door): to be disposed... - Page 12 The EC Declaration of Conformity, the Declaration of Performance required by EU Regulation 305/2011 and all other product certification documents can be downloaded by scanning the QR code on this page (also found on the product label) or by accessing the website page www.mczgroup.com/support/mcz Having specified the above, we highlight and report that: • This manual and technical data sheet, also available on our website, bear all of the specific indications and necessary and...
- Page 13 2-INSTALLATION The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations in force in the country of installation. PELLETS The pellet is obtained from natural dried wood sawdust (without paint). The compactness of the material is guaranteed by the lignin contained in the wood itself, without glue or binders.
- Page 14 2-INSTALLATION FOREWORD The heating system (generator + combustion air supply + combustion product expulsion system + any hydraulic/aeraulic system) must be installed in compliance with the laws and regulations in force , and carried out by a qualified technician, who must issue a declaration of conformity of the system to the system manager and shall undertake full responsibility for final installation and consequent good operation of the product.
- Page 15 2-INSTALLATION MINIMUM DISTANCES Observe the distances from flammable objects (sofas, furniture, wood panelling, etc..) as specified in the following diagram. If objects considered to be particularly sensitive to heat are present, such as furniture, curtains or sofas, as a precaution, increase the stove clearances substantially to avoid possible deterioration due to the effect of heat.
- Page 16 2-INSTALLATION In any case, ensure adequate distance to facilitate access during cleaning and extraordinary maintenance. If this is not possible, it must still be possible to distance the product from adjacent walls/elements. This operation must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration.
- Page 17 2-INSTALLATION Below 15kW: Air duct diameter Maximum length Maximum length (smooth duct) (corrugated duct) 50mm 60mm 80mm 100mm Above 15kW: Air duct diameter Maximum length Maximum length (smooth duct) (corrugated duct) 50mm 60mm 80mm 100mm Technical Dept. - All rights reserved - Reproduction prohibited...
- Page 18 2-INSTALLATION Preparing the smoke expulsion system The combustion product expulsion system is a particularly important element for the proper operation of the appliance and must be correctly sized according to EN 13384-1. Its creation/adaptation/verification must always be carried out by a legally qualified operator and must comply with the regulations in force in the country where the appliance is installed.
- Page 19 2-INSTALLATION Chimneypot The chimneypot, meaning the end part of the flue, must meet the following characteristics: • the smoke outlet section must be at least double the internal section of the chimney; • prevent the penetration of rain or snow; •...
- Page 20 2-INSTALLATION EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) 1. Flue installation with hole for the passage of the pipe increased by: • minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or •...
-
Page 21: 3-Drawings And Technical Features
3-DRAWINGS AND TECHNICAL FEATURES DRAWINGS AND CHARACTERISTICS STOVE DIMENSIONS CLIO HYDRO 16 S2 - CLIO HYDRO 23 S2 Ø48 Ø80 Ø80 Technical Dept. - All rights reserved - Reproduction prohibited... - Page 22 3-DRAWINGS AND TECHNICAL FEATURES TECHNICAL CHARACTERISTICS CLIO Hydro 16 S2 Energy Efficiency Class Nominal output power 16.1 kW (13846 kcal/h) Nominal power output (H 12.9 kW (11094 kcal/h) Minimum power output 4.9 kW (4214 kcal/h) Minimum power output (H 3.4 kW (2924 kcal/h) Efficiency at Max 93.7%...
- Page 23 3-DRAWINGS AND TECHNICAL FEATURES TECHNICAL CHARACTERISTICS CLIO Hydro 23 S2 Energy Efficiency Class Nominal output power 22.4 kW (19264 kcal/h) Nominal power output (H 18.0 kW (15480 kcal/h) Minimum power output 4.9 kW (4214 kcal/h) Minimum power output (H 3.4 kW (2924 kcal/h) Efficiency at Max 92.0% Efficiency at Min...
- Page 24 ACCORDING TO COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) MCZ GROUP SpA Manufacturer: Trademak: Model Identifier: CLIO HYDRO 16 S2 Indirect heating functionality: Direct heat output (space heat output): Indirect heat output (water heat output): 12,9 EN 14785:2006...
- Page 25 3-DRAWINGS AND TECHNICAL FEATURES INFORMATION REQUIREMENTS FOR SOLID FUEL LOCAL SPACE HEATERS ACCORDING TO COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) MCZ GROUP SpA Manufacturer: Trademak: Model Identifier: CLIO HYDRO 23 S2 Indirect heating functionality: Direct heat output (space heat output):...
-
Page 26: 4-Installation And Assembly
4-INSTALLATION AND ASSEMBLY INSTRUCTIONS FOR PACKAGING DISPOSAL The material that the appliance’s packaging is made of must be managed correctly, in order to make collection, reuse, recovery and recycling easier, where possible. The table below illustrates the possible components that the packaging is made of, and the relative instructions for correct disposal. DESCRIPTION CODE MATERIAL SYMBOL... - Page 27 4-INSTALLATION AND ASSEMBLY Handle the product with suitable means paying attention to the applicable safety regulations in force. Do not turn the packaging over and handle the majolica parts with care. The stoves are delivered in a single package with steel sides packaged together with the structure and placed at the side. Open the package, remove the cardboard, polystyrene and any straps and position the stove in the preset place making sure that it complies with the requirements.
- Page 28 4-INSTALLATION AND ASSEMBLY REMOVING THE FASTENING BRACKETS Remove the stoves from the pallet by removing the two screws “u” and the plate “s” from the stove foot. There are four brackets “s”.
- Page 29 4-INSTALLATION AND ASSEMBLY Position the stove and connect it to the flue pipe. Use the four adjustable feet (J) to get the stove correctly levelled so that the smoke outlet is lined up with the connecting pipe. If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the flue), take utmost care to make sure that the joint is not forced.
-
Page 30: 5-Assembling Metal Stove Sides
5-ASSEMBLING METAL STOVE SIDES On delivery, the stove has no metal cladding and with the top fitted, as shown in the image below. Take the box with the metal sides (figure below) and prepare them for installation. The sides are fitted with screws for fixing to the structure. - Page 31 5-ASSEMBLING METAL STOVE SIDES REMOVING THE TOP Remove any plastic clamp securing the top “F” to the stove’s frame. Then raise top “F” and put it in a safe place until its next use. Technical Dept. - All rights reserved - Reproduction prohibited...
- Page 32 5-ASSEMBLING METAL STOVE SIDES Take one of the metal sides “E” and insert the holes “u” on the bottom of the panel on the hooks “z” in the structure of the stove.
- Page 33 5-ASSEMBLING METAL STOVE SIDES Then move panel “E” towards the structure and secure it with the two screws “k”. Fit the panel on the other side in the same way. Technical Dept. - All rights reserved - Reproduction prohibited...
- Page 34 5-ASSEMBLING METAL STOVE SIDES UPPER FASTENING OF THE METAL PANEL After completing installation of the metal panels, place the top “F” back in the appropriate adjustable rubber pads in the structure of the stove.
-
Page 35: 6-Removing The Upper Panel
6-REMOVING THE UPPER PANEL In case of maintenance or operations panel “L” may be removed. Proceed as follows: • Remove the four screws “k” • remove panel “L” Technical Dept. - All rights reserved - Reproduction prohibited... -
Page 36: 7-Opening Lower Door
7-OPENING LOWER DOOR To open door “H” simply press the door towards the stove frame and release. To close it back up, press the door on the frame. -
Page 37: 8-Installation And Assembly
8-INSTALLATION AND ASSEMBLY REAR PANEL If maintenance must be performed on a component of the stove, the rear panel can be removed (if the distances from the walls allow it), otherwise, the maintenance can be performed by removing the side of the stove. To remove the rear panel, remove the seven rear screws “a”... - Page 38 8-INSTALLATION AND ASSEMBLY DOOR OPENING To open the firebox door “F”, insert the cold handle “Z” into the hole in the handle “P” and pull it towards you. Attention! Only open the door when the stove is switched off and cold. FIREBOX DOOR “F”...
- Page 39 8-INSTALLATION AND ASSEMBLY USB SOCKET There is a USB socket on the back of the stove, if a software update is required; the ceramic/metal parts do not have to be removed to reach the socket directly in the circuit board (pos. 5 in the PCB). Attention! The USB socket must be used by skilled technicians.
-
Page 40: 9-Loading The Pellets
9-LOADING THE PELLETS LOADING THE PELLETS Fuel is loaded from the upper part of the stove by lifting the door. Pour the pellets into the tank. This is easier if performed in two steps: Pour half of the contents into the tank and wait for the fuel to settle on the bottom. Then pour in the rest. - Page 41 9-LOADING THE PELLETS SAFETY WHAT TO DO IF SMOKE LEAKS INTO THE ROOM OR IN CASE OF EXPLOSION DAMAGING THE DEVICE: SWITCH IT OFF, VENTILATE THE ROOM AND IMMEDIATELY CONTACT THE INSTALLER/TECHNICIAN IN CHARGE OF ASSISTANCE. User Training In ALL cases, the technician in charge of installation and first-start-up MUST carry out a thorough handover of the appliance to the homeowner / end user.
-
Page 42: 10-Hydraulic Connection
10-HYDRAULIC CONNECTION PLUMBING SYSTEM CONNECTION IMPORTANT! The connection of the stove to the plumbing system must be carried out ONLY by specialised personnel who are capable of carrying out installation properly in compliance with current standards in the country of installation. The manufacturer will not be held responsible for damage to persons or property in the event of failed operation if the aforementioned warning is not complied with. - Page 43 10-HYDRAULIC CONNECTION DISCHARGE VALVE 3 bar The safety valve that can be inspected is found on the back of the stove, under the pump. It is MANDATORY to connect the safety drain to a rubber pipe that can withstand a temperature of 110°C (not supplied) and that reaches the outside for any water outlet. The manufacturer of the appliance is not liable for any flooding caused by the safety valves being triggered if these have not been joined properly to the outside of the product and to a proper collection and evacuation system.
- Page 44 10-HYDRAULIC CONNECTION CONNECTING THE SYSTEM Make the connections to the corresponding fittings shown in the diagram on the previous page. Make sure the pipes are not placed under tension or undersized. IT IS STRONGLY RECOMMENDED TO WASH THE ENTIRE SYSTEM BEFORE CONNECTING THE STOVE IN ORDER TO GET RID OF RESIDUES AND DEPOSITS.
- Page 45 10-HYDRAULIC CONNECTION END PIECE WITH A FILLING TAP (D) AND PRESSURE GAUGE (M) MANUAL VENT VALVE UNDER (ACCESSORY) THE TOP WATER CHARACTERISTICS The characteristics of the water used to fill the system are very important to prevent the build-up of mineral salts and the formation of incrustations along the pipes, in the boiler and in the heat exchangers.
-
Page 46: 11-Electrical Connection
11-ELECTRICAL CONNECTION ELECTRICAL CONNECTION First connect the power cable to the back of the stove and then to a wall socket. The main switch must only be activated to switch the stove on; otherwise, it is advisable to keep it switched off. It is recommended to disconnect the power cable when the stove is not used. - Page 48 Via La Croce n°8 33074 Vigonovo di Fontanafredda (PN) – ITALY Telephone: 0434/599599 a.s. Fax: 0434/599598 Internet: www.mcz.it e-mail: mcz@mcz.it 8901634402 REV 0 27/02/2020...
