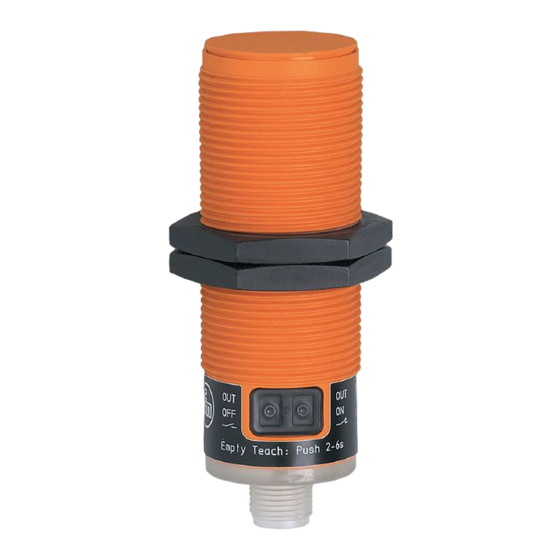

- Page 1 Operating instructions Capacitive sensor with adjustable switching delays KI0064...
-
Page 2: Table Of Contents
KI0064 Capacitive sensor Contents Preliminary note ............. -
Page 3: Preliminary Note
Capacitive sensor KI0064 1 Preliminary note You will find instructions, technical data, approvals, accessories and further information using the QR code on the unit / packaging or at www.ifm.com. 1.1 Symbols used Requirement Instructions Reaction, result [...] Designation of keys, buttons or indications... -
Page 4: Safety Instructions
KI0064 Capacitive sensor 2 Safety instructions • Read this document before setting up the product and keep it during the entire service life. • The product must be suitable for the corresponding applications and environmental conditions without any restrictions. • Only use the product for its intended purpose (Ò → Intended use). -
Page 5: Functions And Features
Capacitive sensor KI0064 3 Functions and features The device monitors the levels of dry bulk materials and liquids. The device is particularly suited for monitoring plastic granulates. The sensing face of the device is rated for temperatures up to 110°C and can therefore be mounted in direct contact with the sight glass (without air gap). -
Page 6: Installation
KI0064 Capacitive sensor 4 Installation For flush installation of non-flush units the sensor properties change and the sensor may remain permanently switched (loss of function). 4.1 Minimum distance for flush installation Sn: Sensing range Fig. 2: Minimum distance for flush installation 4.2 Minimum distance for non-flush installation... -
Page 7: Notes On Installation In Tanks
Capacitive sensor KI0064 4.4 Notes on installation in tanks u Mount the device as shown: In contact with the medium Fig. 5: Installation in contact with the medium u In case of liquids use a mounting adapter (e.g. E11033). Not in contact with the medium... -
Page 8: Electrical Connection
KI0064 Capacitive sensor 5 Electrical connection The unit must be connected by a qualified electrician. u Observe the national and international regulations for the installation of electrical equipment. u Disconnect power. u Connect the unit as follows: Miniature fuse Use a miniature fuse according to the technical data sheet, if specified. Recommendation: Check the safe functioning of the device after a short circuit. -
Page 9: Operating And Display Elements
Capacitive sensor KI0064 6 Operating and display elements LED ring yellow Programming buttons Sensing face... -
Page 10: Settings
KI0064 Capacitive sensor 7 Settings 7.1 Basic teach empty state Using the basic teach empty state, the device suppresses the installation environment. The basic teach empty state resets the device, an adjustment teach already carried out is deleted. u Empty the tank until the level is at least 20 mm below the device. -
Page 11: Switching Delays
Capacitive sensor KI0064 The modified basic teach empty state is also recommended if it has not been possible to carry out a basic teach empty state (e.g. if the sensor is set up on a full tank). The modified basic teach empty state can be repeated at any time, an adjustment teach full state already carried out is not affected. - Page 12 KI0064 Capacitive sensor If the unit does not react, it may be locked.
-
Page 13: Operation
Capacitive sensor KI0064 8 Operation u Check whether the unit operates correctly. u Bring about a unit response by taking suitable measures. LED display LED yellow out: switching output disabled LED yellow ON: switching output enabled... -
Page 14: Maintenance, Repair And Disposal
KI0064 Capacitive sensor 9 Maintenance, repair and disposal The operation of the unit is maintenance-free. To ensure correct functioning, please note the following: u Keep the sensing face and any clear spaces free from deposits and foreign bodies. It is not possible to repair the unit.
