Summary of Contents for IFM PV70 Series

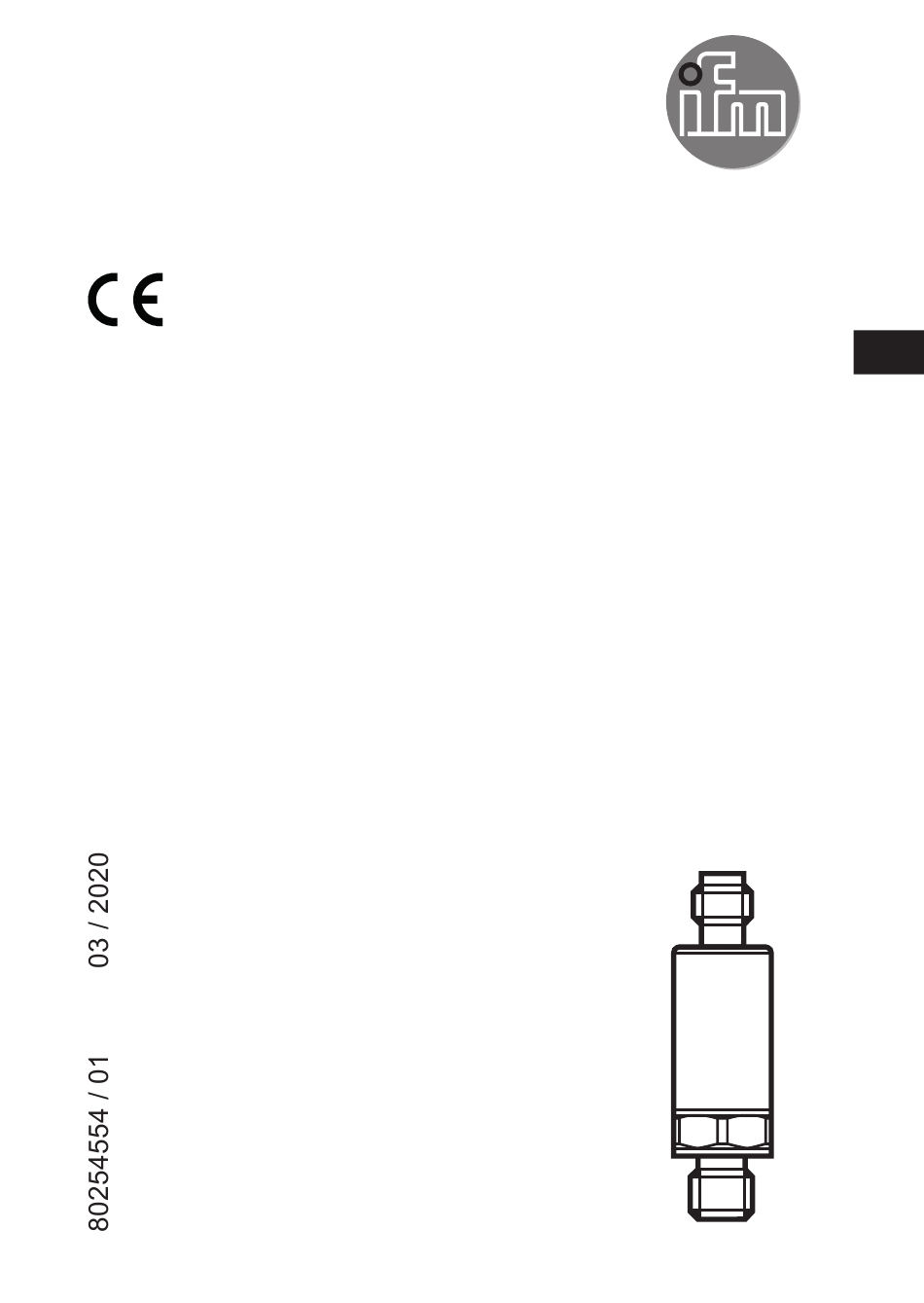

- Page 1 Operating instructions Electronic pressure sensor for industrial applications PV70xx...
-
Page 2: Table Of Contents
Contents 1 Preliminary note ....................2 2 Safety instructions ....................3 3 Functions and features ..................4 3.1 Applications ....................4 3.2 Use in hydraulic systems ................5 4 Function .......................5 4.1 Communication, parameter setting, evaluation ..........5 4.2 Switching function ..................5 4.3 IO-Link ......................6 5 Installation......................7 6 Electrical connection ....................7 7 Parameter setting ....................8 7.1 Parameter setting via PC ................8... -
Page 3: Safety Instructions
2 Safety instructions • The device described is a subcomponent for integration into a system. - The manufacturer of the system is responsible for the safety of the system. - The system manufacturer undertakes to perform a risk assessment and to create a documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. -
Page 4: Functions And Features
3 Functions and features The device monitors the system pressure of machines and installations. 3.1 Applications • Type of pressure: relative pressure Bursting Order number Measuring range Pressure rating pressure Pressure sensors with G¼ external thread PV7060 0...600 0...8700 1500 21755 2500 36255... -
Page 5: Use In Hydraulic Systems
Pressure Equipment Directive (PED): The units with a final value of the measuring range of 600 bar comply with the Pressure Equipment Directive. They are designed for group 2 fluids and manufactured and tested according to Module A. Use of group 1 fluids on request! 3.2 Use in hydraulic systems Restrictor in the process connection: In hydraulic systems, highly dynamic effects such as pressure peaks, cavitation... -
Page 6: Io-Link
In addition communication is possible via a point-to-point connection with a USB adapter cable (→ 7). The IODDs necessary for the configuration of the unit, detailed information about process data structure, diagnostic information, parameter addresses and the necessary information about the required IO-Link hardware and software can be found at www.ifm.com. -
Page 7: Installation
5 Installation Before installing and removing the unit: Make sure that no pressure is applied to the system. ► Insert the unit in a G¼ process connection. ► Tighten firmly. Recommended tightening torque: Pressure range in bar Tightening torque in Nm up to 400 25...35 up to 600... -
Page 8: Parameter Setting
7.1 Parameter setting via PC For parameter setting an IO-Link software is necessary (e.g. LINERECORDER DEVICE). IO-Link interfaces from ifm are available for the connection of the unit via the USB interface of a computer → www.ifm.com. ► Prepare computer, software and interface. -
Page 9: Parameter Setting Via The Memory Plug
7.2 Parameter setting via the memory plug A parameter set can be written / transferred to the unit via a memory plug (storage module) → www.ifm.com. ► Load suitable parameter set (e.g. using a PC) to the memory plug ► Connect memory plug between sensor and socket >... - Page 10 Damping of the switch point. Zero-point calibration HIPS Setting of the threshold for the overload counter HIPC Number of overload processes For more information see the IODD description (→ www.ifm.com) or the context-specific parameter descriptions of the used IO-Link software.
-
Page 11: Factory Setting
Factory setting User setting 25% VMR* 23% VMR* 75% VMR* 73% VMR* 0.06 HIPS HIPC * = The indicated percentage of the final value of the measuring range (VMR) of the corresponding sensor is set in bar. More information at www.ifm.com...
