- Page 1 DURAFIT GIANT (DFICA002) Commercial Treadmill Operating Instructions Manual Special tips: Before installation and operation, please read this operation manual carefully. Please save this manual for future reference.
-
Page 2: Table Of Contents
Table of Contents 1 Brief Description..............1 2 Main Technical Features.............1 3 Tips for safety................2-3 4 Installation...................3 5 Use and Operation............... 3-7 6 Maintenance................7-9 7 Guides for malfunction..............9-10 8 Warranty..................10-11 9 Error and self-inspection.............. 11 10 Installation Sketch..............12-14... -
Page 3: Brief Description

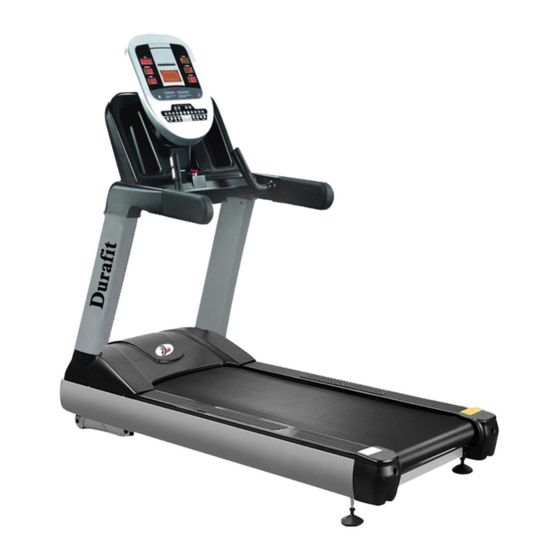

1. Brief Description DFICB001 motorized treadmill (diagram 1) can help complete your goal of keeping fit together with unique and elegant appearance. Easily read panel parameter. Easily operated folding system realizes space-saving. Auto speed range 1-22km/h and auto incline range0-18%. All makes it a hot commercial use fitness equipment. -
Page 4: Tips For Safety
3. Tips for Safety 3.1 Insert the power plug into the socket directly. Current load should be less than 15A. 3.2 The constant max weight is less than 180kgs. 3.3 Place your treadmill on the clean floor，not on the thick carpet, otherwise it will not convenient for ventilation. -
Page 5: Installation
3.16 when in running,we have to keep there is enough free space behind the treadmill ,usually as the rule,it should be length(2m) and the width should be the same as treadmill 3.17 please kindly add 20ml professional oil per time after 3days’ work or 20 hours’ running time. - Page 6 When the amplify is open, press this key to down the invoice. （ 5 ） “Time Window” It shows time.（range:00:00 -99:59） （ 6 ） “ ” Distance window It shows the distance.(range:0 km-99.9km) （ 7 ） “Speed Window” It shows speed. (range:1km/h-22km/h） （...
- Page 7 concerns about your results) Explanation: Bodyfat < 19: underweight. Bodyfat 19~25: normal Bodyfat 26~30: overweight Bodyfat > 30: obese （ 1 0 ） “incline-up” Press this key one by one or Press it continuously, you can choose the incline you need, except for the alarm condition.
- Page 8 Under running condition, press this key, speed can be speeded up to the one you need. （ 1 8 ） “speed-down” Under running condition, press this key, speed can be speeded down to the one you need. （ 1 9 ） “music”...
-
Page 9: Maintenance
6.Maintenance Identification ways for the degree of tightness of running belt and poly V-belt. When the running belt skips, please follow the steps as follows to make sure which belt needs to be adjusted, running belt or poly V-belt. a) Cut off power, screw off the bolt on cover of protection. Then take down the protecting cover from the treadmill b) Turn the speed to be around 3km/h, step on the running belt by pressure and try your best to make the running belt stop. - Page 10 b) If the running belt is deflected to the right, adjust the bolt on the right by turning it for half an circle clockwise, then adjust the bolt on the left by turning it for half an circle.(see diagram 3) c) If the running belt is deflected to the left, adjust the bolt on the left by turning it for half an circle clockwise, then adjust the bolt on the right by turning it for half an circle.(see diagram 4 d) After the adjustment, the running belt still keeps deflecting , please repeat the steps above.
-
Page 11: Guides For Malfunction
If you still can’t solve the problems after taking the solutions above, please contact our Customer Care @ contactus@durafit.in or 6383151885/7806811343 to resolve the issue through our Pan- India Service Network. 8.Warranty 8.1 We have assigned well-trained professionals at the dealers’. They are ready to serve for you at any time. -
Page 12: Error And Self-Inspection
a) Frame: lifetime b) control board: 2 years c) Motor: 3 years d) Other parts: 1 year 8.4 Condition beyond Manufacturer’s warranty: If the product you purchase has the problems as follows, the manufacturer’s warranty is not effective: a) Improper operating, negligence, accident b) Wrong adjustment of running belt and poly V-belt c) Unauthorized take-down d) Improper maintenance... - Page 13 - 11 -...
- Page 14 - 12 -...
- Page 15 Proofreading has been carefully done to the manual, if there are printing mistakes, please kindly understand. If pictures and the real product doesn’t match, please take the product as the final and correct one. If any improvement on function and specification, please kindly understand if you are not informed.
