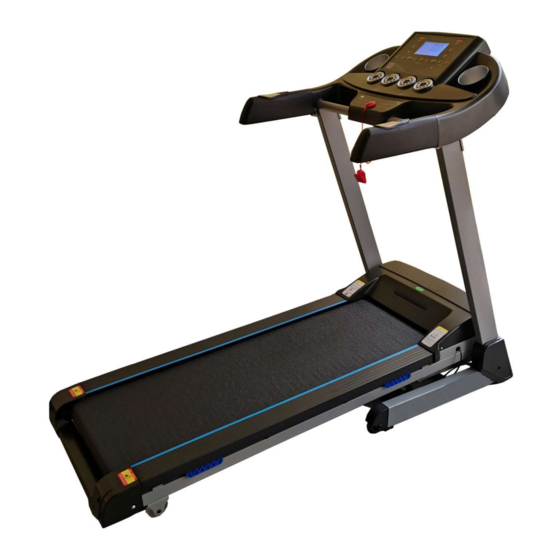

- Page 1 DURAFIT DURAFIT TIGER TIGER USER GUIDE world-class futuristic products in the fitness industry CONTACT: 6379905512 / 6383151885 EMAIL: contactus@durafit.in WEBSITE: https://www.durafit.in/ C A U T I O N R E A D T H I S M A N U A L B E F O R E U S I N G Y O U R...
-
Page 2: Special Tips
Special tips: Before installation and operation, please read this operation manual carefully. 2. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. 3. Please save this manual for future reference. “Today I will do what others won’t, so tomorrow I can accomplish what others can’t.”... - Page 3 Table of Contents Main technical Features Important Precaautions Workout Guidelines Assembly Treadmill Operations Maintainence Recycling Information Common Errors Warranty Certifications Company Passed ISO9001:2000 Quality System Certification Most of our products have been passed European Union CE.RoHS, Germany TUV.GS,SGS Certification,and they are approved qualified two consecutive years for the sampling inspection performed by National Athletic Sports Goods Inspection Center.
-
Page 4: Important Precautions
Important Precautions THE SECURITY KEY HAS A MAGNET WHICH MUST BE PUT IN THE DISPLAY. AT THE END OF THE LACE THERE IS A CLAMP WHICH SHOULD BE ATTACHED TO THE CLOTHES.THE TREADMILL WILL START WORKING ONLY IF THE KEY IS PLACED IN THE DISPLAY.THIS IS ESSENTIAL. - Page 5 4. Keep the equipment in an enclosed area, away from dust or humidity. Don’t store it in a garage, indoor backyard or near the water. Humidity, dust and water could lead to a malfunction of the equipment, annulling its guarantee. 5.
- Page 6 12. If your equipment is provided with a security key, please understand the produce before using it. The security key has a magnet which must be put in the display. At the end of the lace there is a clamp which should be attached to the clothes.
- Page 7 19. A correct lubrication of the treadmill with silicon oil or Teflon is REALLY IMPORTANT. This lubrication must be performed regularly depending on each person, even before its first use. The lubrication must be carried out this way: disconnect the equipment of the electricity supply (in case you have one), pull up the tapestry from the side with one hand and spread the oil on the board.
-
Page 8: Main Technical Features
28. The accessories can be different to the other models. 29. This electronic product can't be thrown under any circumstances into the municipal rubbish bins. With the aim of preserving the environment, this product must be recycled according to the applicable law of your country. - Page 9 Emergency stop key with smooth Safety key stop system Advanced belt system 1.8 mm thickness Speed Range 1-14 km/hr Music System Yes (Aux ) Input voltage 220V±10% 50/60 HZ Frequency Input current ≤8A Temperature 4 0℃ ∽ 68/58 Gross Weight/Net Weight “If you want something you’ve never had, you must be willing to do something you’ve never done.”...
- Page 10 3. Assembly Main Part name Main Frame 1 Set Plastic Cover 1 Pair Fittings M8*20 M8*45 ST4*15 M8 Nut Flat washer Multi Wrench 5mm Wrench 6mm Wrench Security Key User’s Manual MP3 Wire Silicone oil “If you want something you’ve never had, you must be willing to do something you’ve never done.”...
- Page 11 STEP-1: 1. Carry out the machine from the package by two persons and place it lightly on flat floor, and put other fittings beside the machine. Lift up the stand tube and electronic watch according to the picture (make sure not to press the signal wire) 2.
-
Page 12: Workout Guidelines
STEP-3: 1. Use 2PCS ST4X15 screws to fasten the plastic cover at bottom of stand tube. 2. Put on the safety, turn on the power switch, then can start machine. 4. Workout Guidelines BEWARE: Before starting to use this or any exercise programs, consult your doctor. - Page 13 If your equipment is provided with a pulse sensor, you must keep in mind this isn’t a medical instrument. Several factors can vary the accuracy of the heart rate interpretations. The pulse sensor is just a help for the work outs, determining the general tendencies of the heart rate. PROGRAM WITH WARM UP WORKOUTS: WARM UP: Start stretching and slightly activating the muscles between 5 and 10 minutes.
-
Page 14: Treadmill Operation
5. Treadmill Operation “To give anything less than your best is to sacrifice the gift.”... - Page 15 “To give anything less than your best is to sacrifice the gift.”...
- Page 16 “To give anything less than your best is to sacrifice the gift.”...
- Page 17 6. Maintainence This product must be earthed. If the power cord is damaged, it must be replaced with a manufacturer recommended power cord. DO NOT TANGLE THE POWER CORD Regular maintainence of the treadmill STORAGE: Keep your equipment in a enclosed place, away from dust or humidity.
- Page 18 b) Stop the running belt and fold the treadmill. c) Turn over the running belt at the back of the main frame. Insert the lubricant pot as deep as possible into the middle of the running belt. Apply the lubricant onto the inner side of the running belt.
-
Page 19: Recycling Information
TIGHTEN THE BELT: (if the belt slips on the treadmill when walking). Start treadmill and increase the speed to 3MPH.Using the 6mm Wrench , turn both bolts 1/4 clockwise. If the belt is properly tight to walk, you must be able to pull up each side of the belt 5 or 7 cm off the platform. Be careful and maintain the belt aligned. -
Page 20: Common Errors
7. Common Errors “To give anything less than your best is to sacrifice the gift.”... -
Page 21: Warranty
8. Warranty We have one year quality warranty to the products. Within the warranty period, we provide the FREE replacement parts. If caused by incorrect assembly, incorrect use or change of parts failures, our company takes no responsibility. You should show our products series no. and relative pictures or information before getting the warranty. - Page 22 OUR OTHER MERCHANDISE CYCLES AND ELLIPTICALS ‘Action is the foundational key to all success.’...
- Page 23 OUR OTHER MERCHANDISE WEIGHTS AND ACCESSORIES ‘Well done is better than well said.’...
- Page 24 TO BUILD AN EXTENSIVE PRODUCT PORTFOLIO, PROVIDE THE BEST CUSTOMER EXPERIENCE Make your body clock Make your body clock Make your body clock work for you! work for you! work for you! Scan the QR code...
