FinDreams Battery

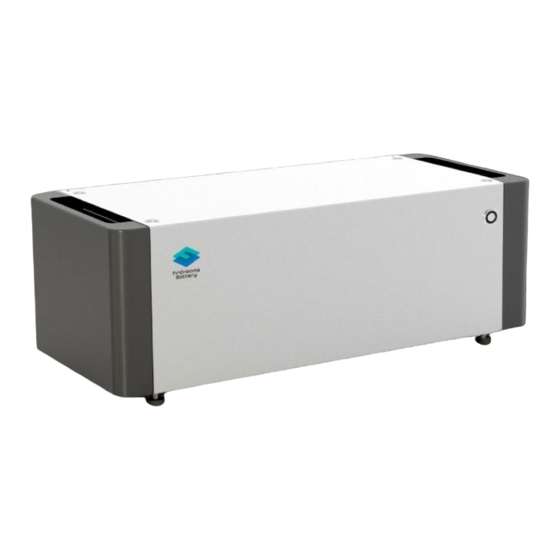

FD-LV5.0 Battery Module
User Manual
EN- Manual Dec-2023
Version02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FinDreams FD-LV5.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BYD FinDreams FD-LV5.0

  • Page 1 User Manual Copyright©2023 BYD Co., Ltd. All Rights Reserved. BYD reserves the right to modify the technical datasheet and apperance of the product in the catalog without prior advice to the users. No part of this document can be copied or reproduced without BYD permission.
  • Page 2 Limited Warranty You can download the latest Limited Warranty from the Internet at www.bydenergy.com. All the information in this document is the property of BYD Company Limited. No part of this document could be repro- Technical Information duced in any way for business use. Internal use is allowed.
  • Page 3: Table Of Contents

    Content 5.2. Installation...............24 6. Electrical Connection............28 Legal Provisions..............1 6.1. Overview of the Connection Area........28 1. Information on this Document..........5 6.2. Connection Diagram............29 6.2.1. One Battery Module...............29 1.1. Validity................6 6.2.2. One Tower & Multiple Towers..........30 1.2. Target Group..............6 6.3. Connecting the PE............31 1.3.
  • Page 4: Information On This Document

    • Knowledge of how batteries work and are operated. BYD shall not be liable if any of the following situations occur. • Knowledge of how an inverter works and is operated. •...
  • Page 5: Declaration Of Conformity

    1.6. Levels of Warning Messages or fire. Transport requirements: The following levels of warning messages may occur when • Before shipment, the batteries must be inspected to ensure handling the battery module. that they are intact, and that there is no unusual smell, smoke, DANGER fire, etc.
  • Page 6: Designation In The Document

    2. Safety 1.8. Designation in the Document DISCLAIMER Term Explanation BYD shall not be liable for any functional failures, component Discharge Battery output power for load. damages, personal safety accidents or property losses su ered Charge Store electrical energy. by the following reasons: •...
  • Page 7: Important Safety Instructions

    Accidental inhalation: Evacuate the contaminated area, and The battery module could be connected to the PC through data cable for maintenance and firmware updating. seek medical help immediately. Eye exposure: Rinse eyes with flowing water for 15 minutes and The battery module must only be used as stationary equipment. seek medical help immediately.
  • Page 8: Warning Of Overvoltages

    2.2.4. Warning of Overvoltages is harmful to skin and eyes so contact should be avoided. • Do not stand, lean or sit on the battery. DANGER • Measure the voltage at the contact point before contacting any conductor surface or terminal, in a move to confirm that Danger to life due to electric shock in case of overvoltages there is no risk of electric shock.
  • Page 9: Notice Of Property Damage

    Technolgical E-mail: www.byd.com.cn Development Zone,Guangxi You are kindly requested to use the battery which is delivered from BYD COMPANY LIMITED in strict accordance with the specification and remarks Prior Notice of Usage include at the end of the document.
  • Page 10: Symbols On The System

    4.2. Battery Module Description 4.4. Symbols on the System Symbol Explanation Observe the documents D. Hanger Protective Cover Observe all documents supplied with the system. WEEE designation E. DC Connector* Power Button Do not dispose of the system together with the F.
  • Page 11: Rating Label

    4.5. Rating label Idle (the battery is neither Constantly charging nor discharging). Lithium Ion Battery FD-LV5.0 green Model: Green Flashing green The battery is charging. Green slowly Flashing green 0.5S The battery is discharging. Green quickly 0.5S Flashing The battery firmware is 4.6.
  • Page 12: Installation

    5. Installation al standards for lithium-ion product. • When installing the equipment in the basement, it is neces- sary to ensure ventilation and air exchange. Do not put flamma- 5.1. Instruction ble, explosive materials around the equipment. Avoid water 5.1.1. Requirements for Installation retention.
  • Page 13: Tools

    5.1.4. Tools 5.2. Floor Installation The tools in the following table could be needed during the Qualified Person installation. CAUTION Risk of injury due to weight of the battery module Screwdriver Knife Hydraulic Clamp Gradienter Injuries may result if the battery module is lifted incorrectly or dropped while being transported or installed.
  • Page 14 2.Install the feet to the battery module. When stacking 2 or more 5.Install the Anchor Bolt in the wall. modules, only the bottom one installs the foot. Safety of Drilling The following issues need to be taken into account when drilling Battery Module Tower( 1~4 modules ) holes in walls:...
  • Page 15: Electrical Connection

    6. Battery module floor Installation 7. Tighten protective covers on both sides. ① Fasten hangers to the battery module by screws. ② Then fix the battery module to the wall. Battery Module Tower( 1~4 modules ) Battery Module 6.Tower( 1~4 modules ) floor Installation ①...
  • Page 16: Connection Diagram

    6.2.2. One Tower & Multiple Towers 6.2. Connection Diagram 6.2.1.One Battery Module Inverter Inverter Terminal Resistor Grounding DC Cable Inverter Cable Data Cable Grounding Grounding DC Cable Inverter Cable Data Cable Terminal Resistor Grounding...
  • Page 17: Connecting The Pe

    6.3. Connecting the PE 6.4. Data Cable Connection 6.4.1. Data Cable Connection between Inverter and Battery Grounding Module The grounding wire must be installed first in the process of installing; when removing the equipment, the grounding wire Additionally required mounting material (not included in the must be removed at last.
  • Page 18: Cover The Terminal Resistor

    Our compatible inverters’ communication ports with Battery The connection diagram could be read below. Module designation could be read below. Data cable requirements: The length and quality of cable a ect the quality of the signal. Module Solis Deye VICTRON Megarevo Observe the following cable’s requirements.
  • Page 19 Additionally required mounting material (not included in the Battery Module Cable Connection scope of delivery): ① Connect ground cable Two DC cables ② Connect data cable Cable requirements: ③ Connect DC cable • Conductor cross-section:one options are available, 16mm.Please choose the correct one according to application and also the requirements of the inverter manufacturer.
  • Page 20: Commissioning

    7. Commissioning Inverter 7.1. Operation 7.1.1. Switch on the Battery Module 1. After the battery and inverter are installed, the equipment starts up in this order: Battery →Switch*→ Inverter. * Turn on the air switch between battery and inverter if there is any. 2.
  • Page 21: Protective Devices

    8. Decommissioning 7.3. Protective Devices The battery module could protect itself (switch o )if the FD-LV5.0 battery module Configuration List is not complied. QUALIFIED PERSON If external protective devices are needed, please follow the local, state, provincial, federal, or national laws, regulations, CAUTION and instructions from the inverter manufacturer.
  • Page 22: Troubleshooting

    6. Switch on and configure the battery module. FD-LV5.0 battery module Compatible Inverter List. If the problem 7. Start the inverter. still cannot be solved, contact with BYD local after-sales service within 48 hours. NOTICE Damage to the battery module due to under voltages •...
  • Page 23: Led Light Designation For Errors

    11. Storage 10.2. LED Light Designation for Errors The battery module should be stored in an environment with a Constantly red An error has occurred: temperature range between -20°C~+50°C, and charged regular- Short-circuit ly according to the table below with no more than 0.5 C (A C-rate Cell failure is a measure of the rate at which a battery is discharged relative BMS communication failure...
  • Page 24: Maintenance & Replacment

    • The equipment must be powered down before maintaining, atmospheres. and the safety precautions in this manual and other relevant • For more information, please contact BYD. documents must be strictly followed. • During the process of maintenance, try to avoid unrelated personnel entering the site.
  • Page 25: Technical Parameters

    Address: Bruchtannenstraße 28, 63801 Kleinostheim, Germany Operating Temperature Charge 0~50℃ & Discharge -20~50℃ www.eft-systems.de Protection Class IP20 Storage Humidity 5%~95% BYD US Service Altitude < 4000m bboxservice@byd.com Certification CE / IEC62619 / UN38.3 Telephone: +1(833)338-8721 Compatible Inverter Solis/ Deye / Victron/ Megarevo BYD Global Service bboxservice@byd.com...
  • Page 26: Appendix

    Appendix Module VICTRON Connection with VICTRON Module Solis VICTRON Module Connection with Solis Module Solis Module Megarevo Connection with Megarevo Module Deye Module Megarevo Connection with Deye Module Deye...
