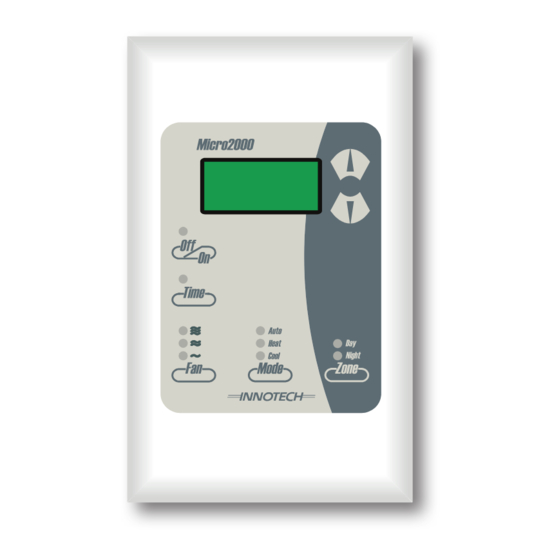

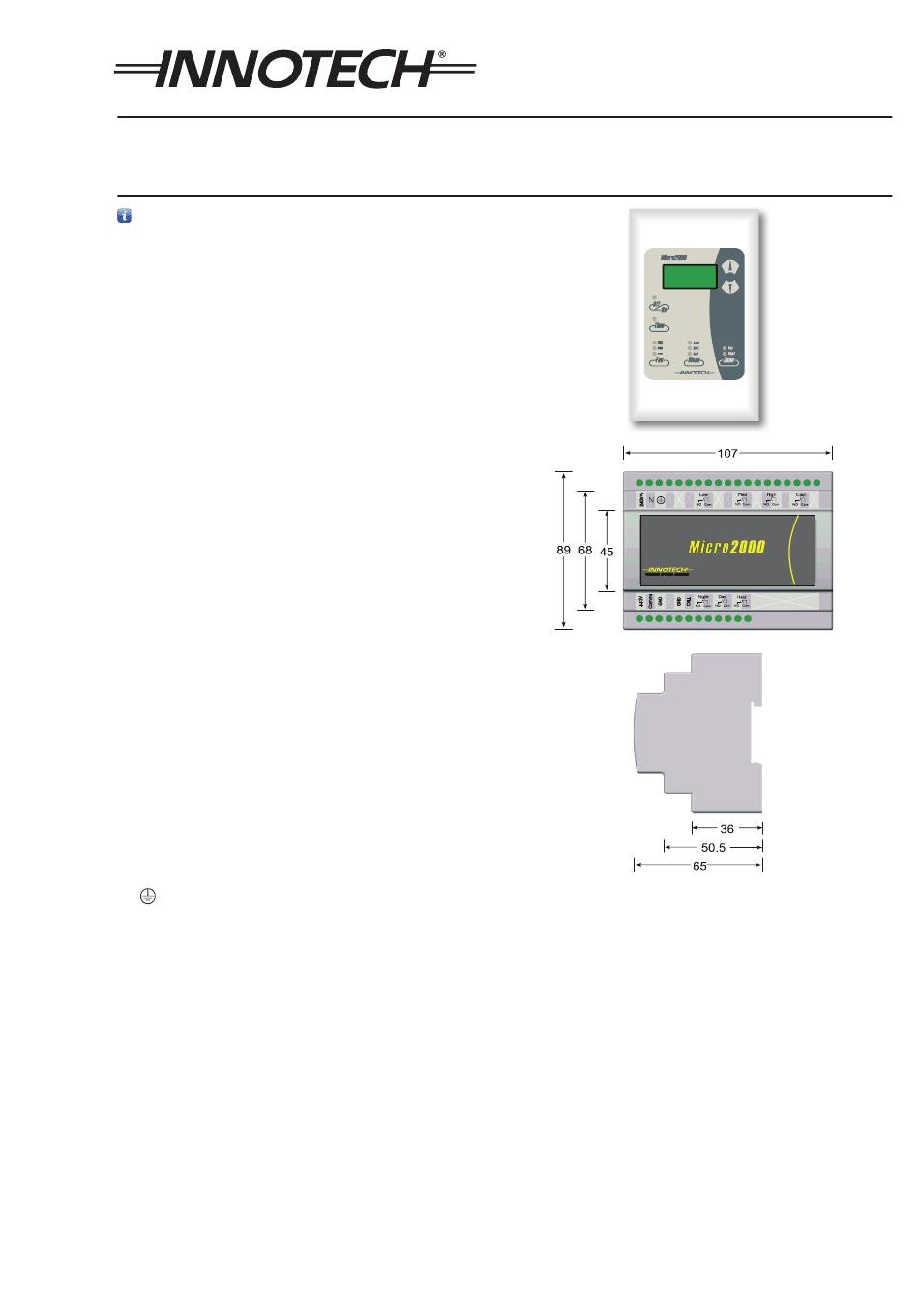

Innotech Micro2000 M2K06 Manual

Models:
M2K06 3 Speed FAN, 1 COOL, 1 HEAT & 2 Zone Controller, 7 day - 4
Event Time Clock or Timer, with Condenser Water Pump
Interlock
The Clock is not battery backed. Time and Date will need to
be set every time power is cycled if the Time Clock function is
enabled. Schedules and Parameters are saved even if power
is lost.

Specifications

Power Supply
• Voltage: 240VAC ±10% @ 50/60Hz
• Power Consumption: 7VA max
Inputs
• Universal Input - 10kΩ thermistor and Switched Contact
• Digital Input for Switched contact
Outputs
Relay # 1: Voltage free relay contacts:
Normally Open
Relay # 2, 3, 4: Voltage free relay contacts:
Normally Open
Relay # 5, 6, 7: Voltage free relay contacts:
Normally Open
Connection Between Controller and Control Station
• 4 way connection via 3 core plus screen cable
Control Station Terminal Identification
• IN 1 Night Zone Temperature and External Start
• IN 2 Day Zone Temperature and External Start
• IN 3 Verify Signal feedback input
• GND Common for Inputs and Cable Shield
• +12V Power from Controller
• Comms Comms to Controller
• GND Ground from Controller
Controller Terminal Identification
240 Volt Power connection to Control Unit:
• Earth
• N Neutral supply
• 240V~ Mains 240VAC Supply
Output Relays
• NO Normally open contact
• COM Common contact
Comms Terminals
• +12V Power to Control Station
• Comms Comms from Control Station
• GND Ground to Control Station
Temperature Ratings
• Storage: 0 to 50°C non-condensing
• Operating: 0 to 40°C non-condensing
16A resistive
6A inductive
10A resistive
6A inductive
2A resistive
0.5A inductive
© MASS ELECTRONICS Pty Ltd 2008
M2K06
Micro2000 Controller

Application

The Innotech M2K06 Controller is designed to provide complete control
of air conditioning systems for commercial applications, where control
over two zones (eg: Day / Night) is required. Specifically for applications
where a condenser pump interlock system is required.

Features

• LED Display of Temperature and Program functions
• Control Station fits standard electrical wall plates
• Two core screened cable simplifies connection between the control
station and controller
• Adjustable Proportional Band, Dead Zone, Compressor Restart Time
and Setpoint Range
• Able to operate as 1 cool, 1 electric heating or as reverse cycle heating
or cooling
• 7 Day 24hr Real Time Clock or Adjustable Timer function
• Programmable Schedules, 4 events per day
• Two Zone (Day / Night) control with option of 1 or 2 temperature
sensors
• Adjustable auto zone change over times
• External A/C fault and Start/Zone change inputs
• All adjustments from the control station
DS 9.06
August 2013
