Innotech MS1-05 Manual

Models:
MS1-05: 1 Speed FAN, 2 COOL & 2 HEAT Controller
Specifications
Power Supply
Voltage: 240VAC ±10% @ 50/60Hz
Power Consumption: 7VA Max.
Input
10kΩ thermistor temperature sensor - 0°C to 50°C range
Switched contact for Timeclock input
Switched contact for After Hours operation
Switched contact for A/C Devices Disable
Switched contact for Heat/Cool Device Disable
Outputs
Relay 1 to 5 Voltage free relay contacts:
Normally Open: - 16A resistive
- 6A inductive
Connection between Controller and Control Station
5 way connection via 4 core plus screen cable
Control Terminal Identification
TH1 Temperature Sensor Input
TH2 Temperature Sensor Input (10kΩ thermistor)
SHLD Cable Shield for Temperature Sensor
DI#n+ Digital Input - positive
DI#n- Digital Input - negative
P+ 12VDC to Control Station
P- 0VDC to Control Station
C+ RS485 Comms + to Control Station
C- RS485 Comms - to Control Station
SHLD Wall Panel Cable Shield
Input Terminal Identification
240V Power connection to Control Station:
E Earth
N Neutral supply
240V Mains 240VAC Supply
Output Relays
NO Normally Open contact
Com Common contact
Temperature Ratings
Storage: 0-50°C non-condensing
Operating: 0-40°C non-condensing
Enclosure
The control is provided in three parts. The wall mounted Control
Station, the Remote Controller and a Bead Type Return Air Detector.

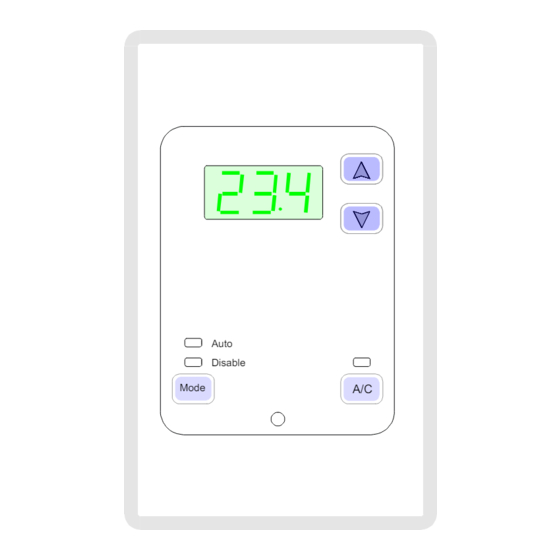

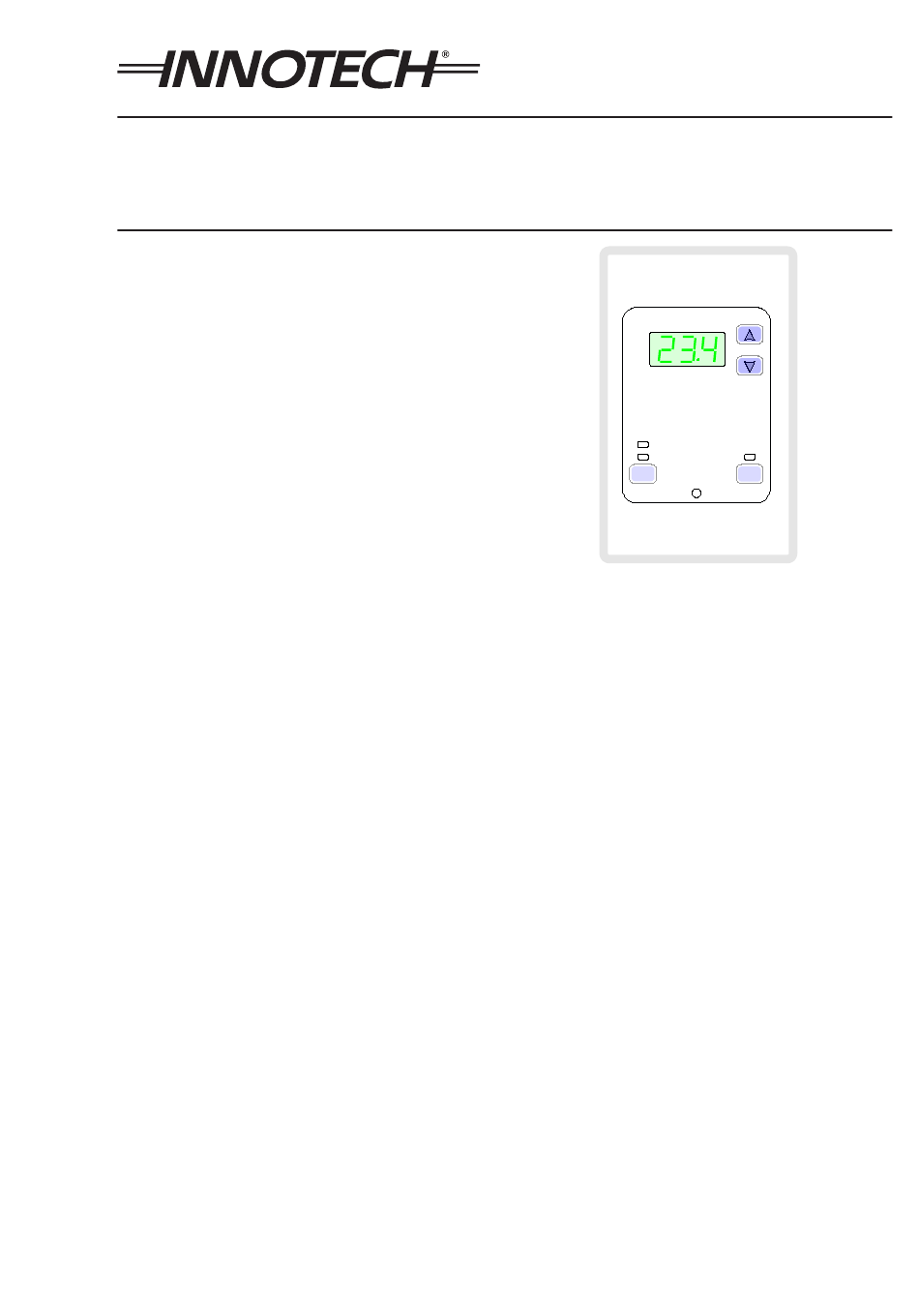

Control Station
HPM or Clipsal style switchplate
Dimensions: 115mm x 72mm x 30mm
Controller
Plastic enclosure manufactured from an ignition resistant grade of
ABS which meets the requirements of AS2420.
Colour: Grey
Dimensions: 107mm x 89mm x 69mm
Application
The INNOTECH Microstat Controller is designed to be used in
commercial applications to provide complete control for air
conditioning systems.
Features
• LED Display of Temperature, Set Point and Program Functions
• Control Station fits standard electrical wall plates
• Four core screened cable simplifies connection between the
Control Station and Controller
• Adjustable Proportional Band, Dead Zone, Compressor Off Time
and Setpoint Range
• Able to operate as 2 cool, 2 electric heating or as reverse cycle
heating or cooling
• Remote disable, Timeclock Override, After Hours functions and
Heat/Cool disable functions.
• Display auto-dims when the lights are out
• Configurable Power On settings
• All adjustments are made from the Control Station
© MASS ELECTRONICS Pty Ltd 2005
August 2013
MS1-05
Microcontroller
Auto
Disable
Mode A/C
DS 2.72
