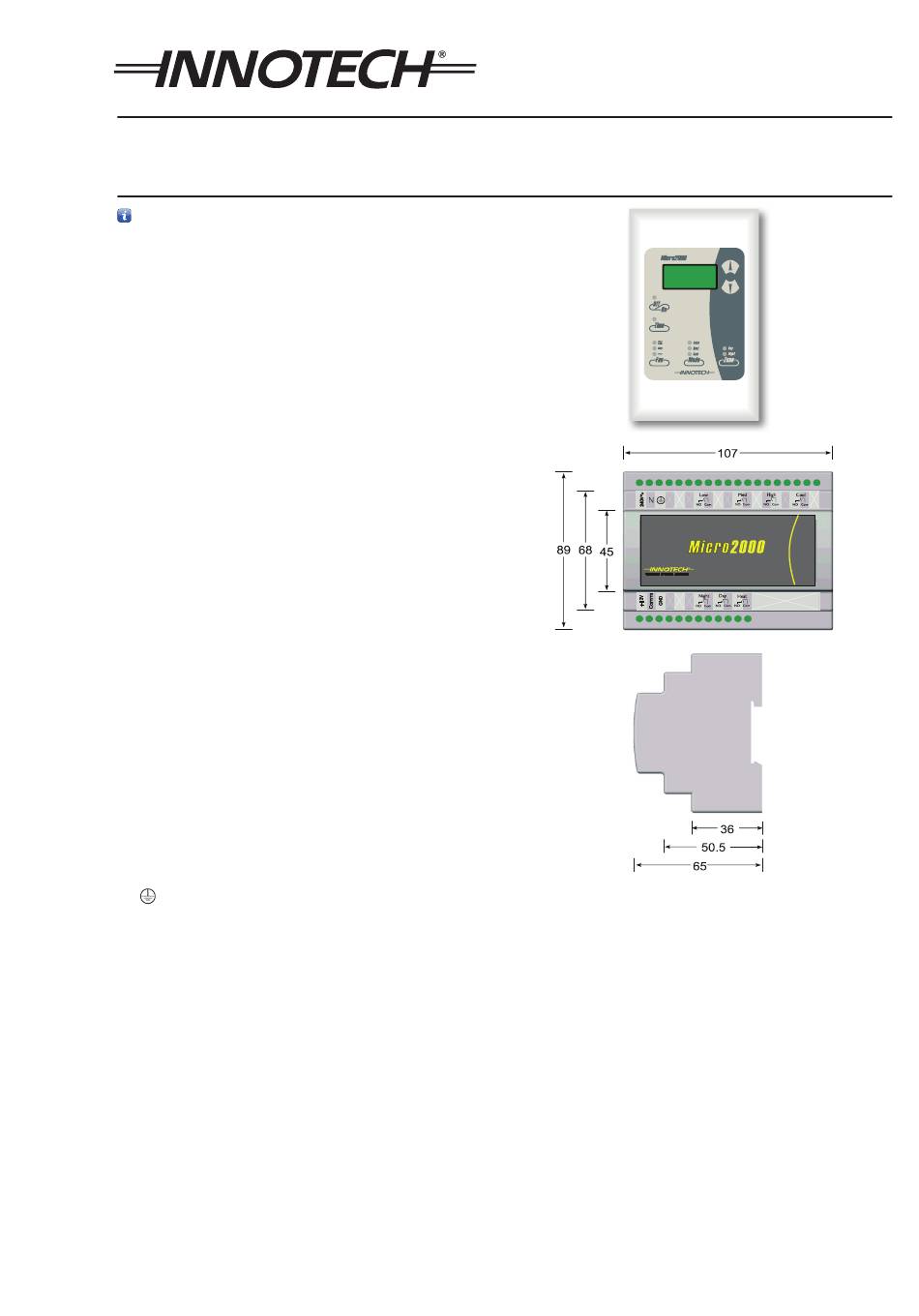

Models:
M2K05:
3 Speed FAN, 1 COOL, 1 HEAT & 2 Zone Controller,
7 day - 4 Event Time Clock or Timer
The Clock is not battery backed. Time and Date will need to
be set every time power is cycled if the Time Clock function is
enabled. Schedules and Parameters are saved even if power
is lost.
Specifications
Power Supply
• Voltage:
240VAC ±10% @ 50/60Hz
• Power Consumption:
7VA max
Inputs
• 10kΩ thermistor temperature sensor for air temperature (5°C
to 35°C range)
• Switched contact
Outputs
Relay # 1:
Voltage free relay contacts:
Normally Open
Relay # 2, 3, 4: Voltage free relay contacts:
Normally Open
Relay # 5, 6, 7:
Voltage free relay contacts:
Normally Open
Connection Between Controller and Control Station
• 4 way connection via 3 core plus screen cable
Control Station Terminal Identification
• IN 1
Day Zone Temperature and External Start
• IN 2
Night Zone Temperature and External Start
• GND
Common for Inputs and Cable Shield
• +12V
Power from Controller
• Comms
Comms to Controller
• GND
Ground from Controller
Controller Terminal Identification
240 Volt Power connection to Control Unit:
•
Earth
• N
Neutral supply
• 240V~
Mains 240VAC Supply
Output Relays
• NO
Normally open contact
• COM
Common contact
Comms Terminals
• +12V
Power to Control Station
• Comms
Comms from Control Station
• GND
Ground to Control Station
Temperature Ratings
• Storage:
0 to 50°C non-condensing
• Operating:
0 to 40°C non-condensing
16A resistive
6A inductive
10A resistive
6A inductive
2A resistive
0.5A inductive
© MASS ELECTRONICS Pty Ltd 2008
M2K05
Micro2000 Controller
Application
The Innotech M2K05 Controller is designed to provide complete control
of air conditioning systems for commercial applications, where control
over two zones (eg: Day / Night) is required.
Features

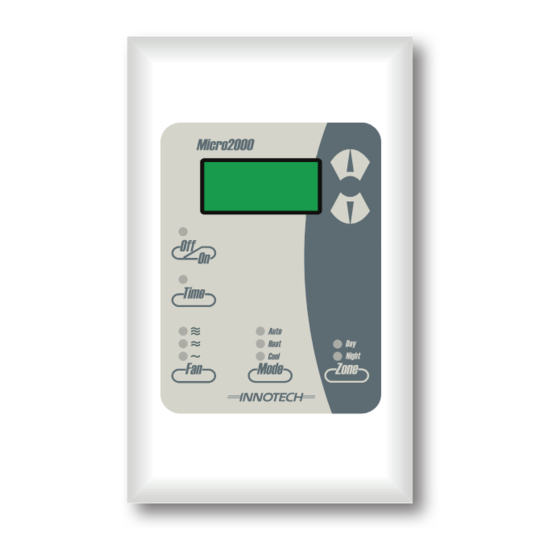

• LED Display of Temperature and Program functions
• Control Station fits standard electrical wall plates
• Two core screened cable simplifies connection between the control
station and controller
• Adjustable Proportional Band, Dead Zone, Compressor Restart Time
and Setpoint Range
• Able to operate as 1 cool, 1 electric heating or as reverse cycle heating
or cooling
• 7 Day 24hr Real Time Clock or Adjustable Timer function
• Programmable Schedules, 4 events per day
• Two Zone (Day / Night) control with option of 1 or 2 temperature
sensors
• Adjustable auto zone change over times
• External A/C fault and Start/Zone change inputs
• All adjustments from the control station
DS 9.05
August 2013
