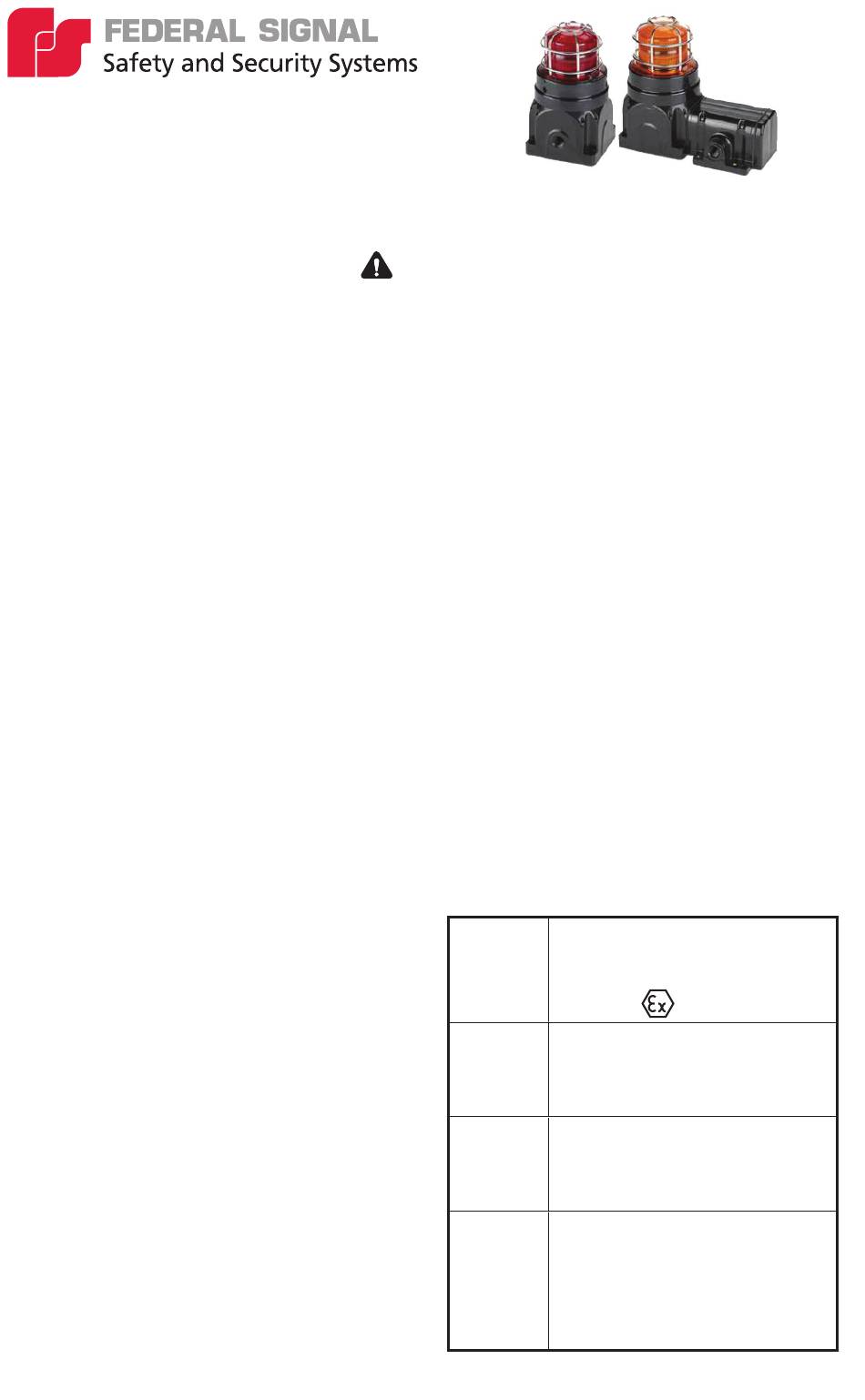

Model G-STR Strobe Beacon
For Use in Hazardous Locations
25500185 Rev B8 0324
Limited Warranty: This product's limited warranty can be
found at www.fedsig.com/SSG-Warranty.
SAFETY MESSAGES TO INSTALLERS AND USERS
It is important to follow all instructions shipped with
this product. This beacon is to be installed by a trained
electrician who is thoroughly familiar with and will follow
all applicable national and local codes in the country of
use.
This beacon should be considered a part of the warning
system and not the entire warning system.
The selection of the mounting location for the beacon,
its controls, and the routing of the wiring are to be
accomplished under the direction of the facilities engineer
and the safety engineer. Listed below are some other
important safety instructions and precautions you should
follow:
Read and understand all instructions before
installing or operating this equipment.
To avoid electrical shock hazards, do not connect
wires when power is applied. Failure to observe this
warning may lead to serious injury or death.
Never alter the unit in any manner. Safety in
hazardous locations may be endangered if additional
openings or other alterations are made in units
specifically designed for use in these locations.
Do not connect this beacon to the system when
power is on.
After installation, ensure that all threaded joints are
properly tightened.
Keep the unit tightly closed when in operation.
After installation, test the beacon system to ensure
that it is operating properly.
After testing is complete, provide a copy of this
instruction sheet to all personnel.
Brass inserts have the potential to store charge
when they are not plugged. Consideration should be
taken to prevent these from becoming a sparking
hazard.
The lens guard has the potential to store charge.
Consideration should be taken to prevent this from
becoming a sparking hazard.
Establish a procedure to routinely check the beacon
system for proper activation and operation.
Maximum flash frequency is 90 FPM.
This equipment is suitable for use in Class I, Division
2, Groups A, B, C, D; Class II, Division 2, Groups F and
G; Class III or non-hazardous locations only.
:
The purchaser should make the manufacturer aware
of any external effects or aggressive substances to
which the equipment may be exposed.
WARNING: EXPLOSION HAZARD — Do not
disconnect the equipment unless power has been
switched off unless the area is known to be non-
hazardous.
WARNING: EXPLOSION HAZARD — Do not remove or
replace the fuse when energized.
Failure to follow all safety precautions and instructions
may result in property damage, serious injury, or death to
you or others.
With respect to the potential electrostatic charging hazard
as mentioned in the certificate "Specific Conditions of
Use," under normal conditions of use, these devices
are for fixed installations and not generally in contact
with people. The risk of ignition is low. In addition,
maintenance, cleaning, and extreme environmental
factors (e.g., high velocity dust-laden atmospheres or
high-pressure steam) should be taken into account by
the end user using local Explosive Atmosphere (Ex)
Electrical installation design, selection, inspection, and
maintenance Codes and Standards. Cleaning of the
devices should be done only with a damp cloth.
Certificate
ATEX Cert No.: Baseefa15ATEX0154X
Nos.
IECEx Cert No.: IECEx BAS 15.0103X
UKEX Cert No.: SGS23UKEX0085X
ATEX Coding:
Protection
Ex db IIC T3 Gb
(21 joule)
Ex db e IIC T3 Gb
Ex tb IIIC T200°C Db IP66
(Tamb= -55°C to +70°C)
Protection
Ex db IIC T4 Gb
(15 joule)
Ex db e IIC T4 Gb
Ex tb IIIC T135°C Db IP66
(Tamb= -55°C to +70°C
Standards
EN60079-0:2018, EN60079-1:2014, EN IEC
60079-7:2015+A1:2018, EN60079-28:2015,
EN60079-31:2014; IEC60079-0:2017 7th Ed,
IEC60079-1:2014-06 7th Ed,
IEC60079-7:2017 5.1 Ed, IEC60079-28:2015
2nd Ed, IEC60079-31:2013 2nd Ed.
Table 1 Certifications
II 2 G D

Advertisement

loading
Need help?

Need help?

Do you have a question about the G-STR-024-D-C and is the answer not in the manual?

Questions and answers

Summary of Contents for Federal Signal Corporation G-STR-024-D-C

  • Page 1 Model G-STR Strobe Beacon For Use in Hazardous Locations 25500185 Rev B8 0324 Limited Warranty: This product’s limited warranty can be • This equipment is suitable for use in Class I, Division found at www.fedsig.com/SSG-Warranty. 2, Groups A, B, C, D; Class II, Division 2, Groups F and G;...
  • Page 2 The 24 Vdc Visual Strobe models with a clear lens are Listed by Underwriters Laboratories (UL) for use in fire alarm applications including hearing-impaired signaling. These models have the following nomenclature: • G-STR-024-D-C • G-STR-024-T-C • G-STR-024-E-C These models have a flash rate of 60 FPM and an electrical rating of 1.75 A maximum at 24 Vdc.
  • Page 3: Wiring The Device

    enclosures and is for use in gas atmospheres. The Figure 4 Front view of Ex de surface mount product is Ex tb marked for use in dust atmospheres. 4X COUNTER-BORED HOLES TO FIT M8 SOCKET-HEAD Mounting the G-STR Beacon CAP SCREWS ATTACH THE BEACON SECURELY: To prevent injury, this 105.9 mm (4.17 in)
  • Page 4 • Painting and surface finishes, other than those Tools needed: applied by Federal Signal Corporation, are not • 1.5 mm A/F hexagon key permitted. • 2 mm flat-tip screwdriver • Cable termination should be in accordance with specifications applying to the application. Federal •...
  • Page 5 Insert the PCB into the enclosure and fully tighten Wiring the Ex de Models the PCB captive screw. Place the cover on the housing and tighten it by CIRCUIT BOARD DAMAGE: The DC beacons are polarity turning it clockwise. sensitive, and MAY BE DAMAGED by incorrect electrical To ensure O-ring compression, the cover must be hookup.
  • Page 6 Maintaining the Beacon Refer to the “Certification” section for any applicable Specific Conditions of Use. SAFETY MESSAGES FOR MAINTENANCE PERSONNEL : Listed below are some important safety instructions Replacing the Strobe Tube and precautions you should follow: • Read and understand all instructions before EXPLOSION HAZARD: To maintain the flameproof operating this system.
  • Page 7: Maintenance And Service

    To ensure O-ring compression, the cover must be Table 2 Replacement parts fully seated against the housing when the threads Description Part Number are tightened. Turn the M3 set screw on the side of Lens Guard K859500821-01 the housing until the screw contacts the housing. Lens, Amber K859500814 Reconnect power to the beacon.
  • Page 8 Table 4 Choosing cable-entry devices for Equipment in Potentially Explosive Atmospheres Models Ex Atmospheres Cable Entry Devices (cable glands, stopping plugs, etc. G-STR-XXX-D-X Cable entry devices shall be equipment certified as flameproof. To maintain the (Ex db surface mount) ingress protection of the flameproof beacon enclosure, we recommend the cable entry device be IP66 certified G-STR-XXX-E-X For the flameproof beacon enclosure, cable entry devices shall be equipment...
  • Page 9 Balise stroboscopique Modèle G-STR Conçue pour être utilisée dans des emplacements dangereux • La fréquence de clignotement maximale est de 25500185 FR Rév. B8 0324 90 clignotements/min. Garantie limitée : la garantie limitée de ce produit peut être • Cet équipement est adapté à une utilisation en Classe consultée sur le site www.fedsig.com/SSG-Warranty.
  • Page 10 Underwriters Laboratories (UL) pour être utilisés dans le cadre de l’alarme incendie, y compris la signalisation destinée aux malentendants. Ces modèles comportent la nomenclature suivante : • G-STR-024-D-C • G-STR-024-T-C • G-STR-024-E-C Ces modèles ont une fréquence de clignotement de Lors de la création de certaines combinaisons d’appareils, il est...
  • Page 11 Montage de la balise G-STR Figure 4 Vue avant du montage en surface Ex de 4X TROUS AVERTISSEMENT CONTRE-PERCÉS POUR ACCUEILLIR DES SÉCURISEZ LA BALISE : pour éviter toute blessure, VIS À TÊTE CYLINDRIQUE M8 cet appareil doit être solidement fixé à la surface de montage, conformément aux instructions d’installation.
  • Page 12 • La peinture et les finitions de surface autres que celles presse-étoupe approprié pour l’application. Les filetages d’entrée appliquées par Federal Signal Corporation ne sont du presse-étoupe sont M20-1,5 x 6H. pas autorisées. Outils nécessaires : • La terminaison du câble doit être conforme aux spécifications •...
  • Page 13 Connectez le fil de terre au pôle du bornier Câblage des modèles Ex de marqué GND (MASSE). AVIS Insérez la PCB dans le boîtier et serrez à fond la vis captive de la PCB. DOMMAGE DE LA CARTE DE CIRCUIT IMPRIMÉ : les balises en courant continu sont sensibles à...
  • Page 14 Entretien de la balise Nettoyage du boîtier Le boîtier doit être nettoyé périodiquement à l’aide d’un chiffon CONSIGNES DE SÉCURITÉ DESTINÉES AU PERSONNEL humide pour maintenir une sortie lumineuse maximale. D’ENTRETIEN  : vous trouverez ci-dessous quelques La lentille du stroboscope de couleur en polycarbonate doit consignes de sécurité...
  • Page 15: Maintenance Et Entretien

    Insérez le nouveau tube stroboscopique dans la douille. Kit tube stroboscopique, 21 J, K859501402-230 Assurez-vous que le tube est bien installé. PCBA 240 Vcc Kit du sous-ensemble interne du tube 15J (G-STR-_15J) Placez le couvercle sur le boîtier et serrez-le en le tournant (comprend un tube stroboscopique, un assemblage de circuit dans le sens des aiguilles d’une montre.
  • Page 16 Tableau 4 Choix des dispositifs d’entrée de câbles pour les équipements dans les atmosphères potentiellement explosives Modèles Atmosphères Ex Dispositifs d’entrée de câble (presse-étoupes, bouchons d’arrêt, etc.) G-STR-XXX-D-X Les dispositifs d’entrée de câble doivent être des équipements certifiés (montage en surface antidéflagrants.
