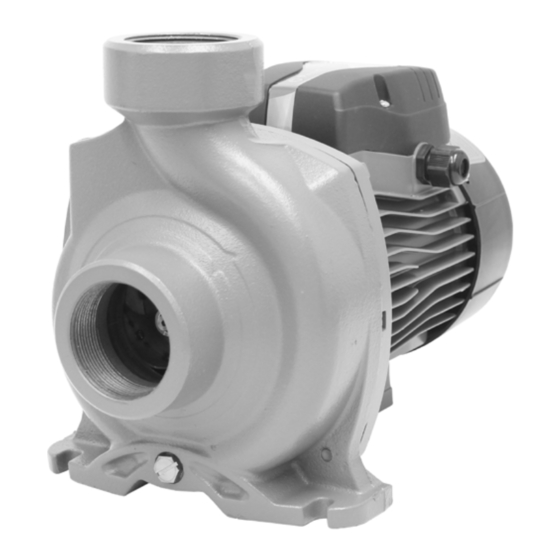

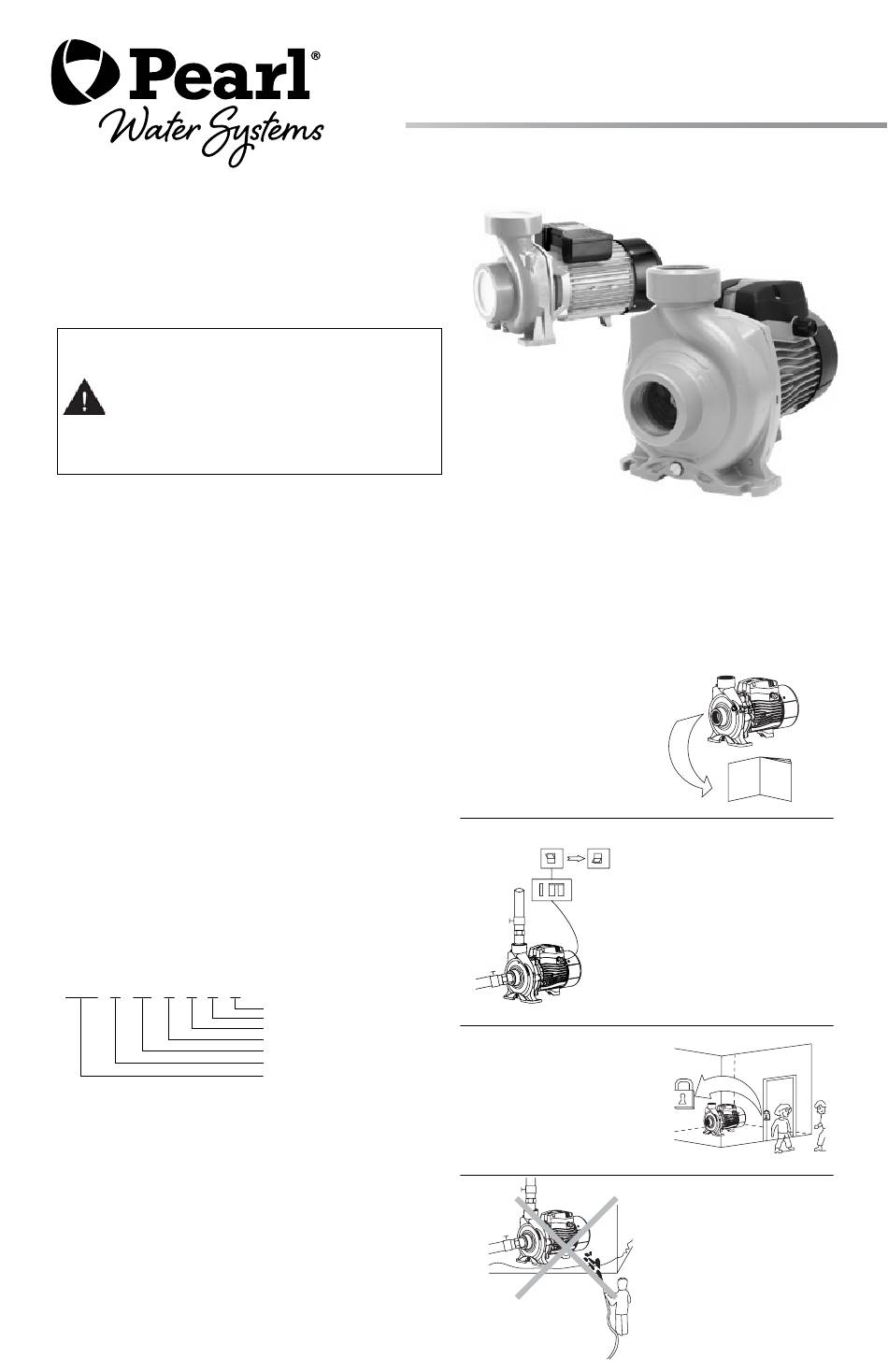

Pearl CQPL Installation And Operating Instructions Manual

TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR MAJOR
PROPERTY DAMAGE, READ AND FOLLOW ALL SAFETY
INSTRUCTIONS IN THE MANUAL AND ON THE PUMP.
Before installation, you should carefully
read this manual, and pay attention to
safety cautions and instructions in this
manual. Our factory is not responsible
or reliable for paying compensation for
personal injury, pump damage, and other
property losses caused by violation of
safety cautions.
1. GENERAL INFORMATION
1.1 These pumps are used for household water supply,
equipment support, pipeline pressurization, garden watering,
vegetable greenhouse watering, fish farming and poultry
raising, industrial and mining, water supply and drainage for
enterprises and high-rise buildings, central air conditioner and
centralized heating circulation systems, etc.
1.2 These pumps are used to transfer clean water and other
non-corrosive liquids with low viscosity; do not transport
inflammable, explosive, gasified liquids, and liquids containing
solid particles or fibers. The pH value should be within 6.5-8.5.
Note:
These pumps can also be used as an automatic pressure
system, which can be accomplished through an external device,
such as an electronic pressure regulator, pressure tank, etc.
This is how it works: Once the equipment is turned on, the
pump will start automatically with the opening of a tap. Once
the tap is closed, the pump will shut off automatically. If the
pump is used to fill an elevated tank, install an electric float
switch inside the tank, and the pump will automatically start
and stop according to the tank's water level.
2. MODEL DESCRIPTION
CQP L 05 A 1 6 S
3. TECHNICAL DATA
Max. Flow: 1800L/min
Max. Head: 75m
Output power: 0.25~11kW
Max. Suction: 8 m
Insulation grade: F
Protection grade: IPX4
Max. ambient temperature: +40
Max. liquid temperature: +60
INSTALLATION AND OPERATING INSTRUCTIONS
Features S = Standard
Hertz 5=50Hz, 6=60Hz
Phase 1= Single phase, 3= Three phase
Voltage A=115V, C=230V, F=110/220V
HP x 10
L= High Flow, H= Higher Flow
Series Centrifugal Pump
CQPL-CQPH
High flow centrifugal water pumps
4. IMPLEMENTATION STANDARDS
IEC/EN 60335-1 Household and similar electrical appliances-
-safety Part1: General requirements.
IEC/EN 60335-2-41 Household and similar electrical
appliances--safety Part2-41: Particular requirements for pump.
2006/42/EC Machinery Directive.
5. SAFETY PRECAUTIONS
5.1 To ensure the normal and
safe operation of the electric
pump, read this manual
carefully before use.
ON
OFF
1 1
1 1
0 0 0 0
5.3 Do not touch the electric
pump while it is working;
do not wash, swim near the
working area, or let livestock
into the water to avoid
accidents.
l
M a n u a
5.2 The electric pump should
have reliable grounding to
prevent short circuits; It
should also be equipped with
a leakage protection switch
for safety. Be careful not
to wet the power plug; the
socket should be connected
in a damp-proof area.
5.4 Avoid splashing pressured
water into the electric pump.
Prevent the pump from being
immersed in water.
