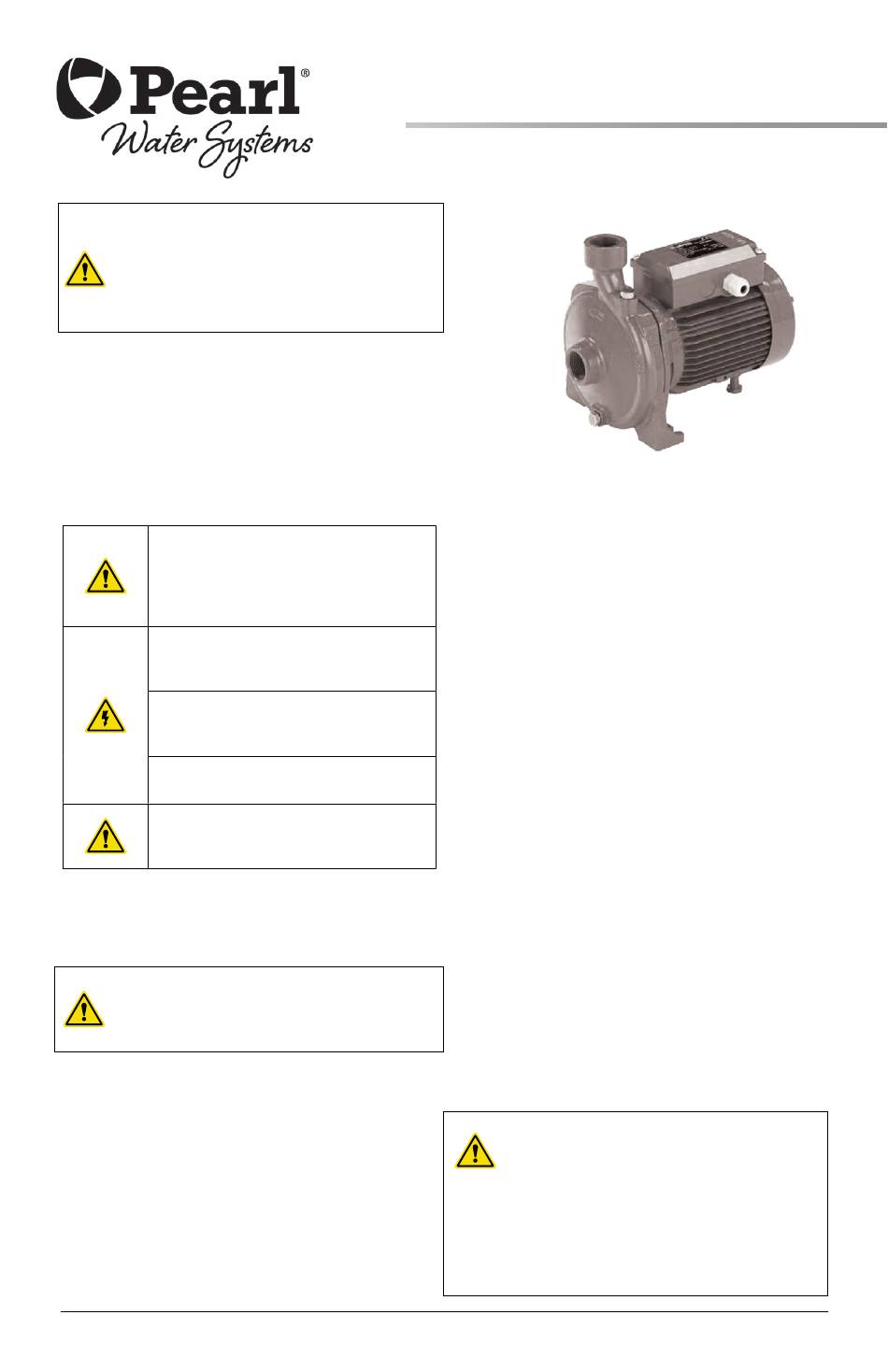

Pearl CEC Installation And Operating Instructions

Close coupled pumps with threaded ports

Advertisement

Quick Links

Before installation, you should carefully read
this manual, and pay attention to safety
cautions and instructions in this manual.
Our factory is neither responsible for nor is
reliable for paying compensation for personal
injury, pump damage and other property
losses caused by violation of safety cautions.
1. SAFETY INSTRUCTIONS
TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR MAJOR
PROPERTY DAMAGE, READ AND FOLLOW ALL SAFETY
INSTRUCTIONS IN MANUAL AND ON PUMP.
THIS MANUAL IS INTENDED TO ASSIST IN THE INSTALLATION
AND OPERATION OF THIS UNIT AND MUST BE KEPT WITH THE
PUMP.
This is a SAFETY ALERT SYMBOL. When you
see this symbol on the pump or in the manual,
look for one of the following signal words and
be alert to the potential for personal injury or
property damage.
Warns of hazards that WILL cause serious
personal injury, death or major property
damage.
Warns of hazards that CAN cause serious
personal injury, death or major property
damage.
Warns of hazards that CAN cause personal
injury or property damage.
INDICATES SPECIAL INSTRUCTIONS WHICH
ARE VERY IMPORTANT AND MUST BE
FOLLOWED.
THOROUGHLY REVIEW ALL INSTRUCTIONS AND WARNINGS
PRIOR TO PERFORMING ANY WORK ON THIS PUMP. MAINTAIN
ALL SAFETY DECALS.
UNIT NOT DESIGNED FOR USE WITH
HAZARDOUS LIQUIDS OR FLAMMABLE
GASES. THESE FLUIDS MAY BE
PRESENT IN CONTAINMENT AREAS.
1.2 Authorized operators
The product is intended for use by expert operators divided into
end users and specialized technicians. (see the symbols above).
NOTICE:
It's forbidden, for the end user, carry out operations which must
be done only by specialized technicians. The manufacturer
declines any liability for damage related to the non-compliance
of this warning.
PEARL CEC
Close coupled pumps with threaded ports
INSTALLATION AND OPERATING INSTRUCTIONS
1.3 Warranty
For the product warranty refer to the general terms and condi-
tions of sale.
NOTICE:
The warranty covers only the replacement and the repair of the
defective parts of the goods (recognized by the manufacturer).
The Warranty will not be considered in the following cases:
- Whenever the use of the device does not conform to the
instructions and information described in this manual.
- In case of changes or variations made without authorization
of the manufacturer.
- In case of technical interventions executed by a non-
authorized personnel.
- In case of failing to carry out adequate maintenance.
1.4 Technical assistance
Any further information about the documentation, technical
assistance and spare parts, shall be requested from: PD Water
Systems.
2. DESCRIPTION AND SPECIFICATIONS
The CEC (closed-coupled) are single impeller, end suction,
centrifugal pumps for water circulation, booster service, liquid
transfer, spraying systems, jockey pump and general service
pumping.
Pump impellers are enclosed design for high efficiency,
threaded directly on the motor shaft.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.
CEC
1
