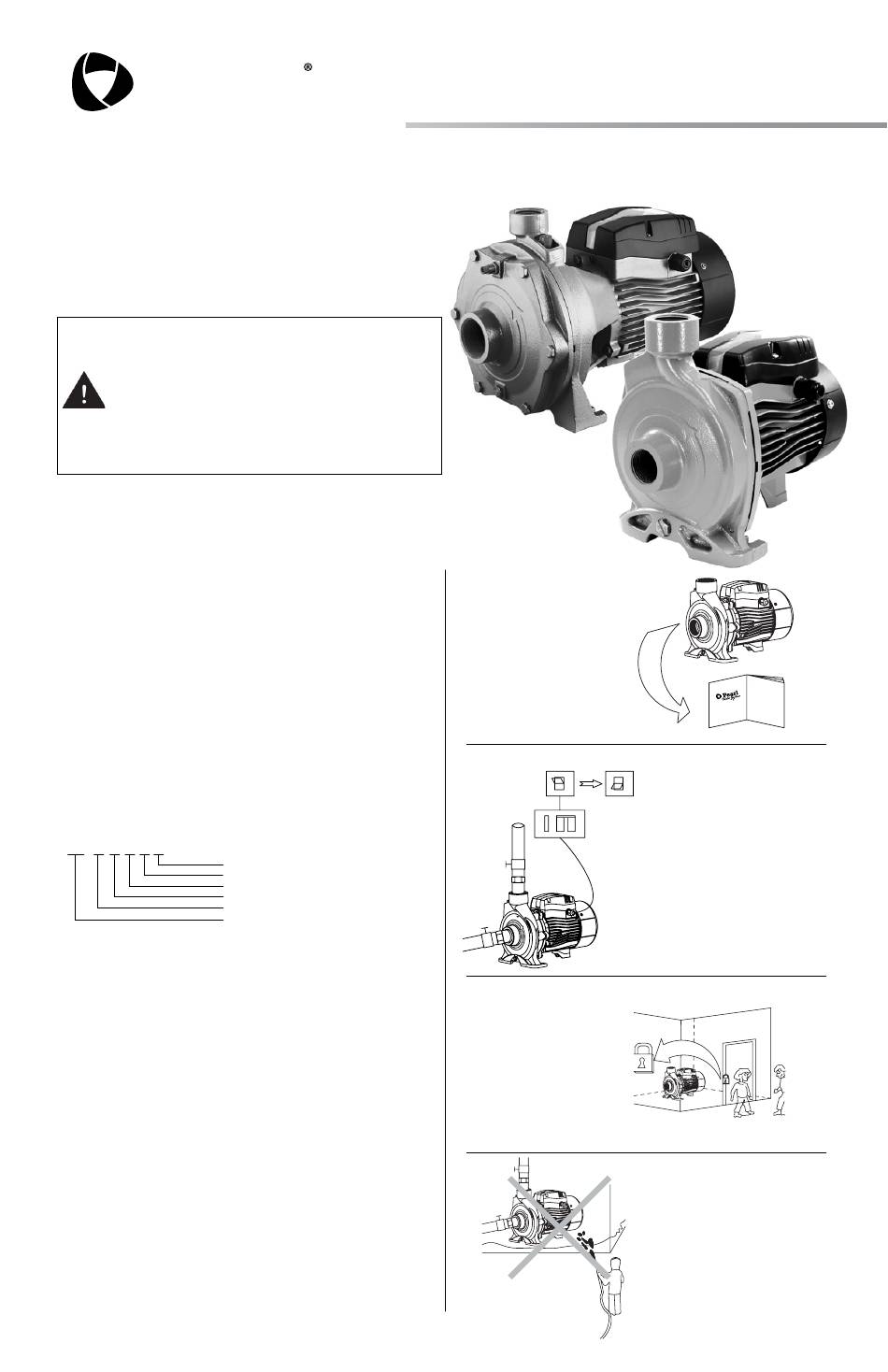

Pearl CEP-C2P Installation And Operating Instructions Manual

Pearl
Water Systems
TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR MAJOR
PROPERTY DAMAGE, READ AND FOLLOW ALL SAFETY
INSTRUCTIONS IN THIS MANUAL AND ON THE PUMP.
Before installation, you should carefully read
this manual, and pay attention to safety
cautions and instructions in this manual. Our
factory is not responsible or reliable for paying
compensation for personal injury, pump
damage, and other property losses caused by
violation of safety cautions.
1. GENERAL INFORMATION
1.1These pumps are used for household water supply,
equipment support, pipeline pressurization, garden watering,
vegetable greenhouse watering, fish farming and poultry
raising, industrial and mining, water supply and drainage for
enterprises and high-rise buildings, central air conditioner and
centralized heating circulation systems, etc.
1.2 These pumps are used to transfer clean water and other
non-corrosive liquids with low viscosity; do not transport
inflammable, explosive, gasified liquids and liquids containing
solid particles or fibers. The pH value should be within 6.5-8.5.
2. MODEL DESCRIPTION
CEP 05 A 1 6 S
Features S=Standard
Hertz 5=50hz, 6=60Hz
Phase 1=Single phase, 3=Three phase
Voltage A=115V, C=230V, F=110/220V
HPx10
Series Centrifugal Pump
3. TECHNICAL DATA
Max. Flow: 1800L/min
Max. Head: 75m
Output power: 0.25~11kW
Max. Suction: 8 m
Insulation grade: IP44
Protection grade: F
Max. ambient temperature: +40
Max. liquid temperature: +60
4. IMPLEMENTATION STANDARDS
IEC/EN 60335-1 Household and similar electrical appliances-
-safety Part1: General requirements.
IEC/EN 60335-2-41 Household and similar electrical
appliances--safety Part2-41: Particular requirements for the
pump. 2006/95/EC Low voltage directive
INSTALLATION AND OPERATING INSTRUCTIONS
5. SAFETY PRECAUTIONS
5.1 To ensure the normal and
safe operation of the electric
pump, read this manual
carefully before use.
5.3 Do not touch the electric
pump while it is working;
do not wash, swim near the
working area or let livestock
into the water to avoid
accidents.

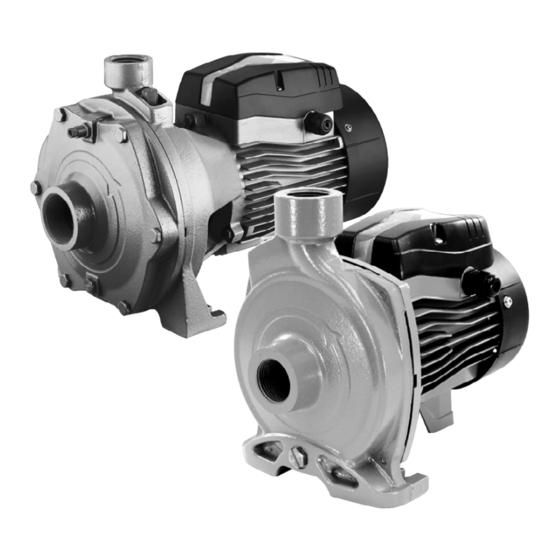

CEP-C2P
centrifugal water pumps
M a n u a
ON OFF
1 1 1 1
5.2 The electric pump should
0 0
0 0
have reliable grounding to
prevent a short circuit; it
should also be equipped with
a leakage protection switch
for safety. Be careful not
to wet the power plug; the
socket should be connected
in a damp-proof area.
5.4 Avoid splashing pressured
water into the electric pump.
Prevent the pump from being
immersed in water.
