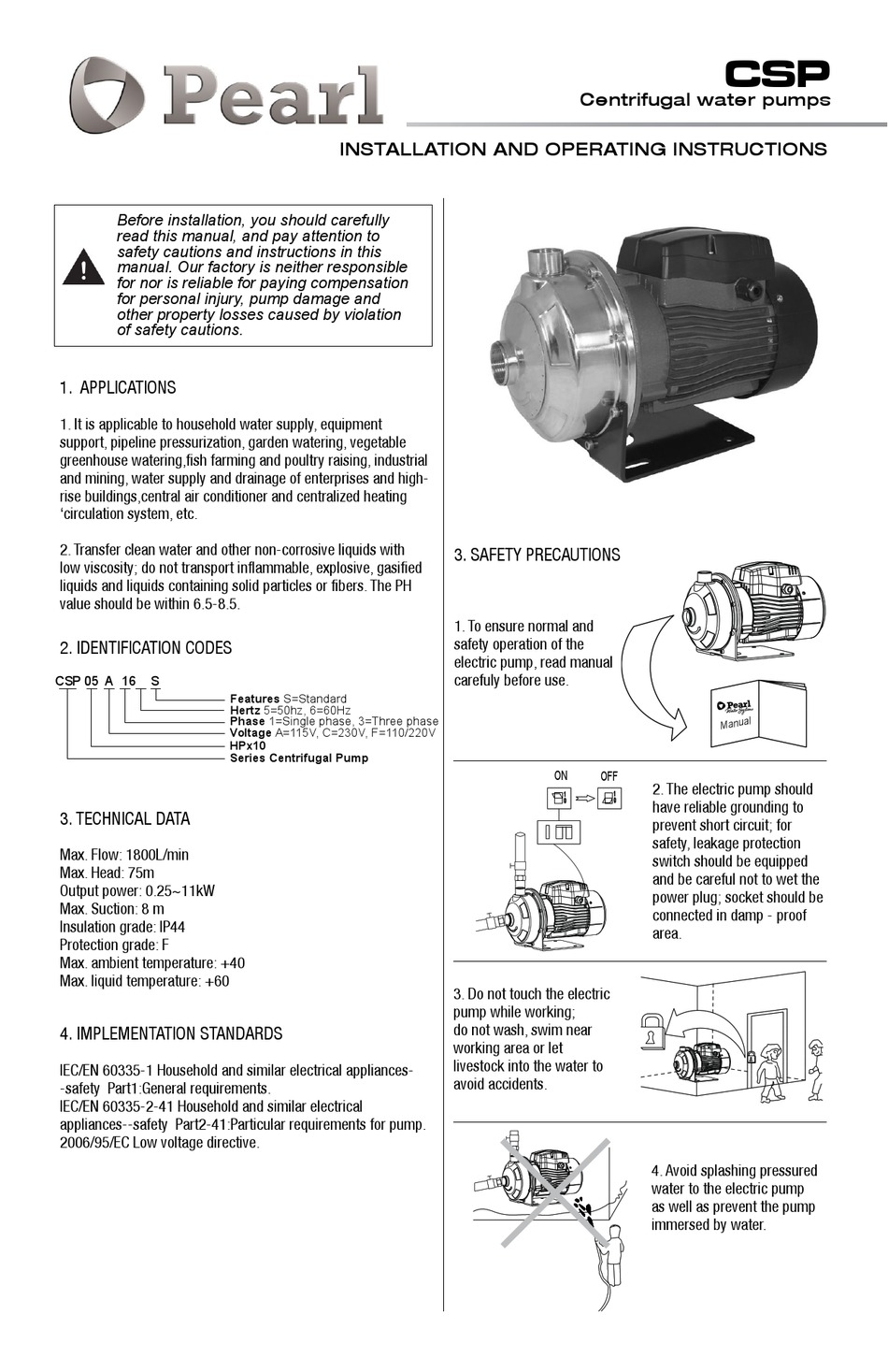

Pearl CSP Installation And Operating Instructions

Before installation, you should carefully
read this manual, and pay attention to
safety cautions and instructions in this
manual. Our factory is neither responsible
for nor is reliable for paying compensation
for personal injury, pump damage and
other property losses caused by violation
of safety cautions.
1. APPLICATIONS
1. It is applicable to household water supply, equipment
support, pipeline pressurization, garden watering, vegetable
greenhouse watering,fish farming and poultry raising, industrial
and mining, water supply and drainage of enterprises and high-
rise buildings,central air conditioner and centralized heating
'circulation system, etc.
2. Transfer clean water and other non-corrosive liquids with
low viscosity; do not transport inflammable, explosive, gasified
liquids and liquids containing solid particles or fibers. The PH
value should be within 6.5-8.5.
2. IDENTIFICATION CODES
CSP 05 A 16 S
3. TECHNICAL DATA
Max. Flow: 1800L/min
Max. Head: 75m
Output power: 0.25~11kW
Max. Suction: 8 m
Insulation grade: IP44
Protection grade: F
Max. ambient temperature: +40
Max. liquid temperature: +60
4. IMPLEMENTATION STANDARDS
IEC/EN 60335-1 Household and similar electrical appliances-
-safety Part1:General requirements.
IEC/EN 60335-2-41 Household and similar electrical
appliances--safety Part2-41:Particular requirements for pump.
2006/95/EC Low voltage directive.
INSTALLATION AND OPERATING INSTRUCTIONS
Features S=Standard
Hertz 5=50hz, 6=60Hz
Phase 1=Single phase, 3=Three phase
Voltage A=115V, C=230V, F=110/220V
HPx10

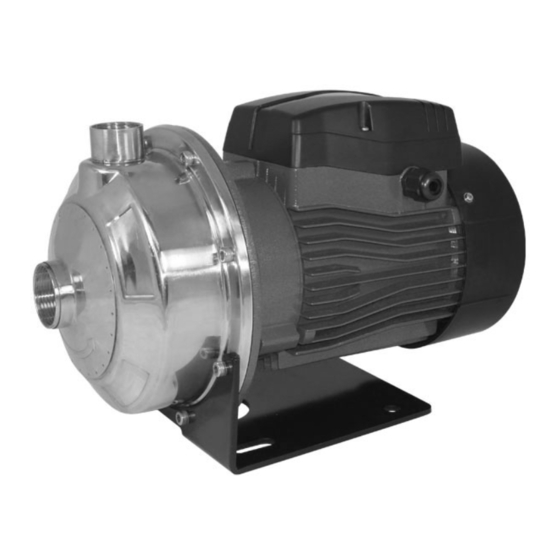

Series Centrifugal Pump
Centrifugal water pumps
3. SAFETY PRECAUTIONS
1. To ensure normal and
safety operation of the
electric pump, read manual
carefuly before use.
ON OFF
1 1 1 1
0 0 0 0
3. Do not touch the electric
pump while working;
do not wash, swim near
working area or let
livestock into the water to
avoid accidents.
CSP
l
M a n u a
2. The electric pump should
have reliable grounding to
prevent short circuit; for
safety, leakage protection
switch should be equipped
and be careful not to wet the
power plug; socket should be
connected in damp - proof
area.
4. Avoid splashing pressured
water to the electric pump
as well as prevent the pump
immersed by water.
