I M PO R TANT ! KE EP T HI S U SE R'S M ANUAL IN
A SA FE PL ACE F OR F UTU RE RE FER ENCE !
INSTRUCTION MANUAL FOR
STROLLER AND CARRY COT –
PARTS OF SET "LINEA" 3 IN 1
This stroller
has been manufactured in accordance with
the Product Safety Directive 2001/95/EU of the European Parliament and
The Council and with European standard EN 1888-1 +А1:2022 "Child care
articles. Wheeled child conveyances. Part 1: Baby strollers and carry cot",
EN 1888-2+А1:2022 "Child care articles. Wheeled child conveyances. Part
2: baby strollers for children from 15 kg to 22 kg" and EN 1466: 2023 "Child
care articles. Carry cots and stands. Safety requirements and test methods"
and the regulations of national law, including Consumer Protection Law.
Advertisement
Related Manuals for Chipolino LINEA
Summary of Contents for Chipolino LINEA
- Page 1 A SA FE PL ACE F OR F UTU RE RE FER ENCE ! INSTRUCTION MANUAL FOR STROLLER AND CARRY COT – PARTS OF SET “LINEA” 3 IN 1 This stroller has been manufactured in accordance with the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standard EN 1888-1 +А1:2022 “Child care...
- Page 2 FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT: CAUTION! WARNINGS! WARNING! NEVER LEAVE YOUR CHILD UNATTENDED! WARNING! USE THE CARRY COT ONLY FOR A CHILD, WHO CANNOT SIT UNAIDED, ROLL OVER AND CANNOT PUSH ITSELF ON ITS HANDS AND KNEES! MAXIMUM WEIGHT OF THE CHILD: 9 KG! ...
- Page 3 Do not overload the stroller! Always balance your stroller in a way to keep it stable and prevent the risk of tip-over! Stroller and carry cot are intended for use for one child at a time! Do not use any spare parts or other components, which are not approved by the producer! The producer does not take any responsibility for the safety of the child when you have not used the proper and original spare parts, approved and provided by him! Do not apply any changes or modifications to the stroller’s construction! Contact the dealer or an authorized repair service for advice and/or repair instead! Car seat does not replace a carrycot or a bed. Should your child need to sleep, then he should be placed in a suitable cot or bed. Check periodically and discontinue the usage, if you find worn out or loose joints, damaged or missing parts! There is a risk of injury of the child! Do not allow children younger than 3 years near the stroller during the assembly or disassembly, in order to prevent the risk of injury or swallowing of small parts! Do not place in the product any additional strings, cords or objects (toys, pillows, etc.) in order to avoid the risk of strangulation! Do not position the product near objects that may pose strangulation risk, such as strings, blinds or curtain cords, etc.
-
Page 4: Main Features
MAIN FEATURES Seat unit is suitable for newborn babies and children aged up to 4 years or weighing up to 22 kg (whichever comes first); Carry cot is suitable for one child aged less than 6 months and weighting not more than 9 kg. It can be used separately or attached to stroller’s frame; Car seat for babies with height from 40 up to 87 cm and weight ≤ 13 kg., model LINEA. It is safe and compatible with stroller’s frame; 5-point safety harness system; Seat unit can be installed in 2 modes – mother facing mode and motion facing mode; Adjustable canopy; Adjustable leg rest. MAIN PARTS... - Page 5 1. Folding button 8. Storage basket 2. Canopy 9. Button for front wheels removal 3. Recline of seat button 10. Button for rear wheels removal 4. Цип на сенника 11. Parking device 5. Button for front bumper bar removal 12. Front bumper bar 6. Leg rest adjustment button 13. Handle 7. Seat release button 14. Seat Frame – 1 pc. Front wheels – 2 pcs. Rear wheels – 2 pcs. ASSEMBLY INSTRUCTIONS AND FUNCTIONS This stroller is supplied partially assembled. In order to complete the assembly, you do not need any tools. WARNING! Follow exactly the instructions given and check the pictures. WARNING! After each operation, make sure that you have followed the instructions correctly.
- Page 6 1 – UNFOLDING THE STROLLER Take out the folded frame out of the box . Unlock the fixing (c) and open the frame until you reach the position shown in figure . Move the slider (a) and at the same time press button (b) Open fully the stroller and . Unfold the canopy as well . WARNING! By fixing of stroller in open position you must hear a click sound. 2 – ASSEMBLY AND REMOVAL OF FRONT WHEELS Place the front wheel to the frame opening and press (a) until you hear a „click”. Make sure that the wheels are well fixed by trying to pull them out.
- Page 7 7 – RESTRAINT SYSTEM (5-POINT SAFETY HARNESS) WARNING! ALWAYS USE THE RESTRAINT SYSTEM (SAFETY BELTS), TO AVOID FALLING OR SLIPPING OF THE CHILD! Use the safety belts for newborn babies and for babies, who can sit alone and unaided and can push her/himself on hands or knees as well! 7-2 – Join the two parts (1 and 2), as shown in the figure.
-

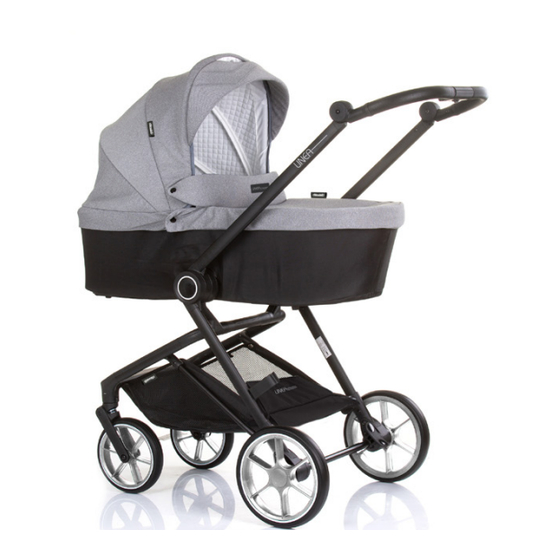

Page 8: Carry Cot
13-1 – Folding of stroller when it is in motion direction Fold the canopy. Set the backrest in position „II“, at the handle level. Press the button for recline and fold the seat forwards. Move the folded seat upwards to handle. Move the slider (a) and at the same time press the button (b), fold the handle inwards. and After folding the handle, press down until the stroller folds. Lock with the fixing (c). 13-2 – Folding of stroller when it is in reverse to motion direction (facing the parent) Fold the canopy. Press the seat recline button, fold and move the seat to the handle. Move the slider (a) and at the same time press the button (b). Fold the handle inwards. Press down the handle until stroller folds. - Page 9 15 – INSTALLATION OF CAR SEAT ON THE FRAME OF STROLLER WARNING! THE CAR SEAT MUST ALWAYS BE INSTALLED IN FACE TO FACE MODE! Note: For your comfort before installation of carry cot or cat seat, always apply the parking device. 15-1 - The car seat model „LINEA” may be installed on the frame using adaptors (1). Install the adaptors to the car seat (if they are not pre-installed). By fixing you must hear a click sound. To remove the adaptors from the car seat , press the button for removal (A) and pull the adaptor down. 15-2 – Push the canopy with your hand to fold it (2) and or pull it to open it (3). 15-3 – Press the buttons (B) at both sides of car seat and move the handle forth or back to required position. By fixing you must hear a click sound. 15-4 – Install the car seat with adaptors on the frame. When it is fixed you will hear a „click“. To remove the car seat, you, must press the buttons for removal at both sides (5) of frame and take it out of the frame. “click”...
- Page 10 “click” (а) (а) “click” (а) “click” (а) (а) “click”...
- Page 11 (а) “click” (а) (а) “click” “click” а...
- Page 12 (а) (а) 13-1...
- Page 13 (а) 13-2 “click” C E G 14-1 14-2...
- Page 14 14-3 “click” 14-4 14-5 “click” 15-1 “click” 15-2 15-3 “click” 15-4...
- Page 15 CARE AND MAINTENANCE GUIDELINES The brakes and wheels wear out faster than other parts. Replace them when necessary. Regularly oil the moving parts. Use silicone oil or silicone spray for oiling. Clean and oil all dirty metal and plastic parts regularly. Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap. Do not use aggressive detergents, solvents, bleach or spirits to clean your stroller. Always leave the stroller to fully dry after cleaning before you use it or store it. Mold could form if you keep your stroller moist. Always store your stroller indoors in clean and dry place. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals. Stroller fabric Carry cot fabric composition: polyester composition: polyester Lining and filling: 100 % polyester...
- Page 16 Bulgaria, Plovdiv, str. Golyamokonarskoshosse 1 www.chipolino.com...
