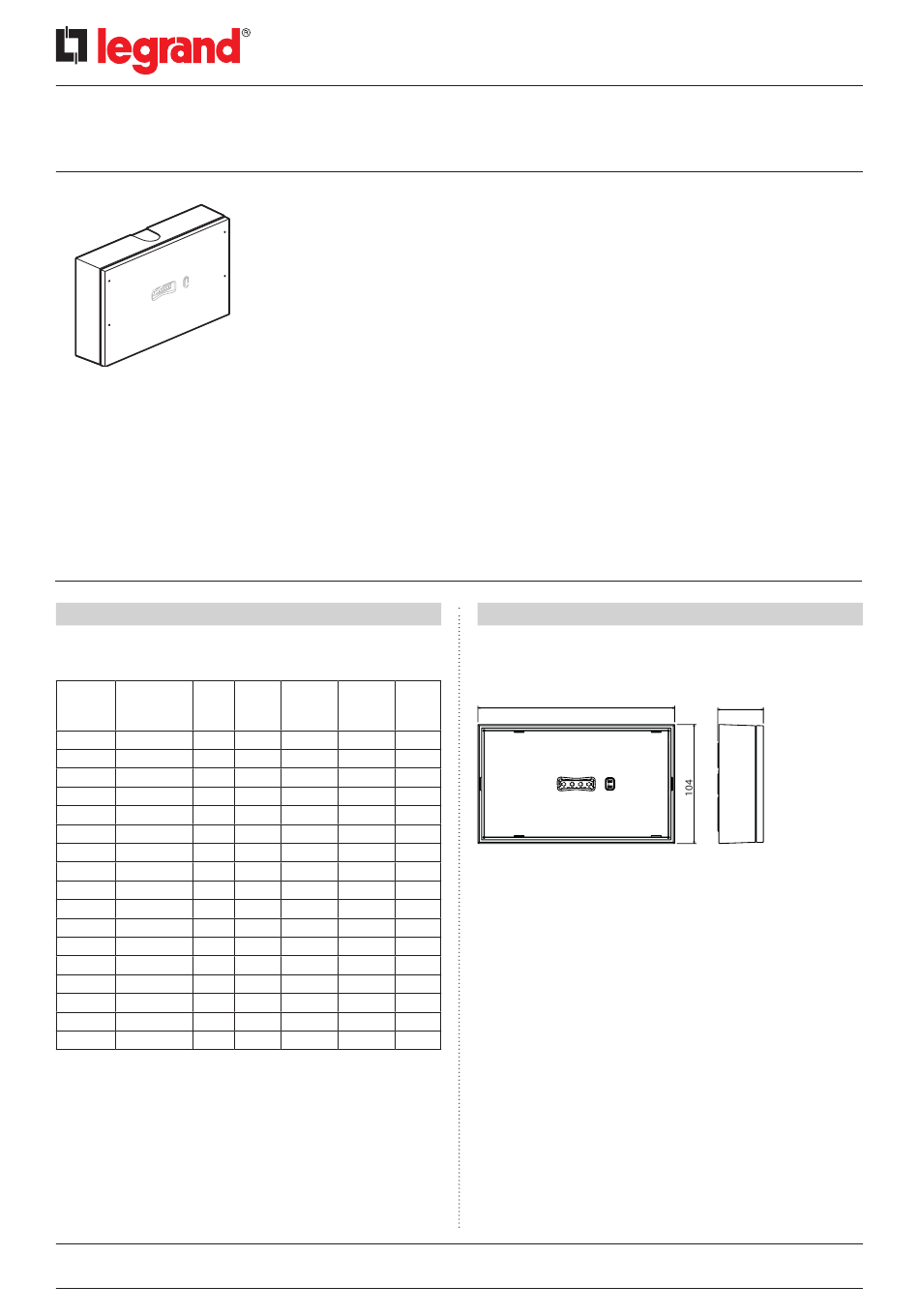

LEGRAND URA NEXT Manual

Emergency lighting luminaires with LEDs
URA NEXT
230 V standard: 6 600 00/01/02/03/04/05/06/07/08/22/24/25/26/27/28
120 V standard: 6 600 13/15

1. DESCRIPTION

IP 42 - IK 07 emergency lighting luminaires with LEDs
Class II: 0
Cat. No. Flux/ Mode M pwr
standby
power
6 600 00 50 lm/1 hr NM
6 600 01 70 lm/1 hr NM
6 600 02 100 lm/1 hr NM
6 600 03 160 lm/1 hr NM
6 600 04 200 lm/1 hr NM
6 600 05 350 lm/1 hr NM
6 600 06 500 lm/1 hr NM
6 600 07 200 lm/2 hrs NM
6 660 08 350 lm/2 hrs NM
6 600 13 160 lm/1 hr NM
6 600 15 350 lm/1 hr NM
6 600 22 100 lm/1 hr M
6 600 24 200 lm/1 hr M
6 600 25 350 lm/1 hr M
6 600 26 500 lm/1 hr M
6 600 27 200 lm/2 hrs M
6 600 28 350 lm/2 hrs M
Technical data sheet: S000118528EN-2
NM pwr Batteries No. of
cons. cons. LEDs
(W)
- 1.45 Ni-Cd 2
- 1.45 Ni-Cd 2
- 1.45 Ni-Cd 2
- 2.2 Ni-Cd 4
- 2.2 Ni-Cd 4
- 1.2 Ni-MH 8
- 0.19 LFP 4
- 1.2 Ni-MH 6
- 0.19 LFP 4
- 0.8 Ni-Cd 4
- 0.3 Ni-MH 8
1.9 - Ni-Cd 4
2.1 - Ni-Cd 4
1.9 - Ni-MH 8
1.5 - LFP 4
1.9 - Ni-MH 6
1.5 - LFP 4
Updated: 16/12/2022
Cat. No(s): 6 600 00/01/02/03/04/05/06/07/08/
13/15/22/24/25/26/27/28
CONTENTS
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
6. Compliance and approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
7. Equipment and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1. DESCRIPTION (CONTINUED)
• Dimensions
172
• Technical characteristics
Power supply:
. all catalogue numbers except 6 600 13/15: 230 V± - 50/60 Hz
. 6 600 13/15: 110-127 V± - 50/60 Hz
Equipped with screw terminals 2.5 mm
Class II: 0
Operating temperature: 0°C to +40°C
Connection to remote control 0 039 00 for setting to rest mode during
intentional mains power breaks.
Remote control input terminals protected against connection errors.
Conforming to standards: UNE EN 60598-2-22: 2014 + AMD: 2020
Awarded ENEC EN 60 598 2-22 quality mark and AENOR quality mark
Product for surface mounting on walls or ceilings and flush mounting in
ceilings with accessory 6 601 90.
Page
40
max.
2
Created: 06/09/2021
1/6
