LEGRAND 0 648 88 Quick Start Manual

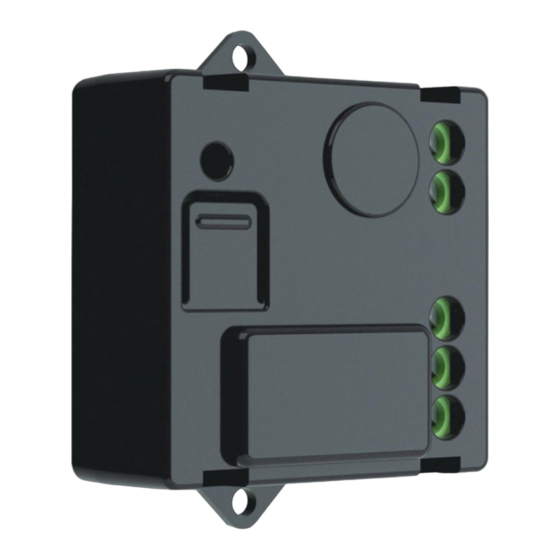

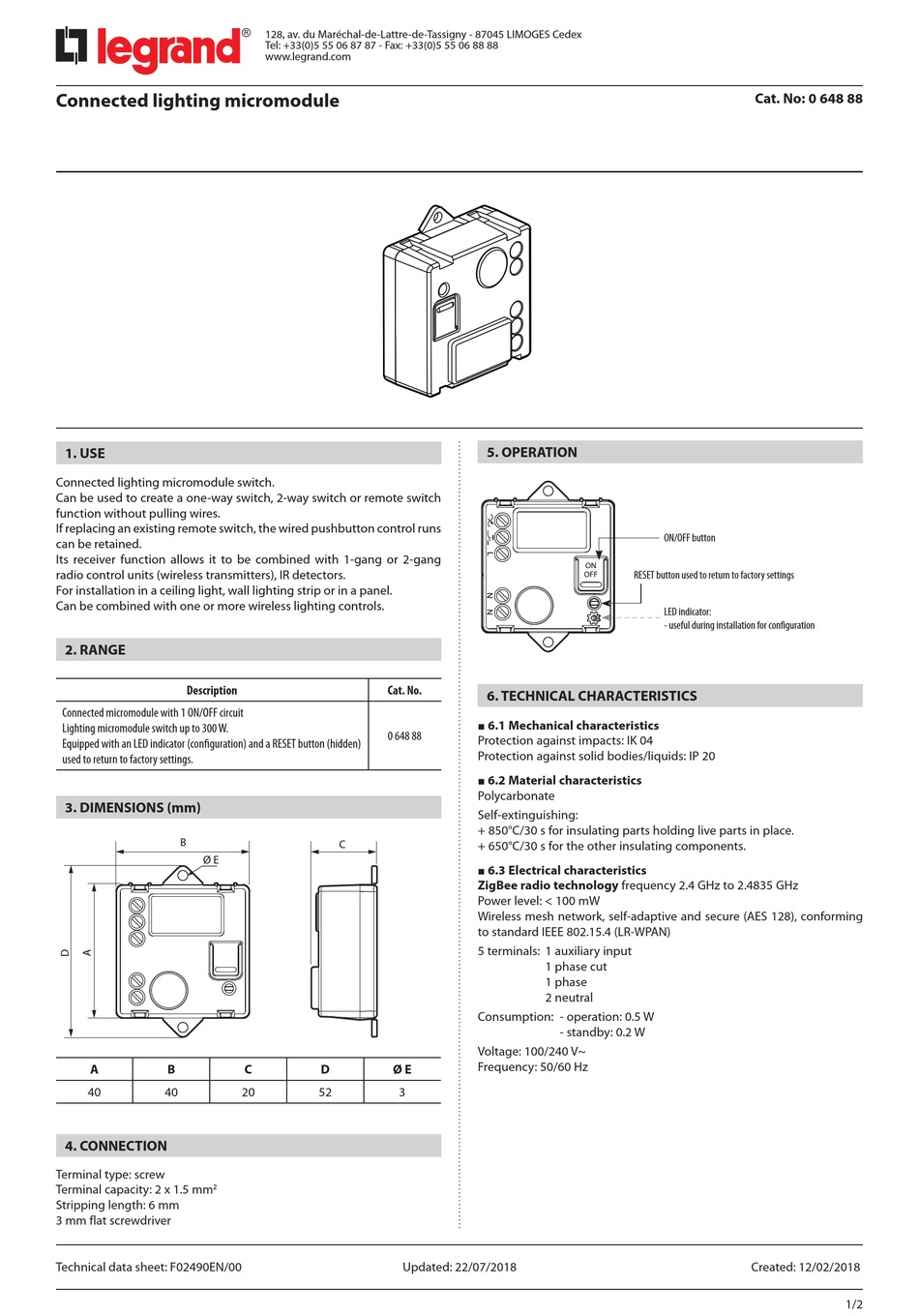

Connected lighting micromodule
1. USE
Connected lighting micromodule switch.
Can be used to create a one-way switch, 2-way switch or remote switch
function without pulling wires.
If replacing an existing remote switch, the wired pushbutton control runs
can be retained.
Its receiver function allows it to be combined with 1-gang or 2-gang
radio control units (wireless transmitters), IR detectors.
For installation in a ceiling light, wall lighting strip or in a panel.
Can be combined with one or more wireless lighting controls.
2. RANGE
Description
Connected micromodule with 1 ON/OFF circuit
Lighting micromodule switch up to 300 W.
Equipped with an LED indicator (configuration) and a RESET button (hidden)
used to return to factory settings.
3. DIMENSIONS (mm)
B
Ø E
A B
40 40
4. CONNECTION
Terminal type: screw
Terminal capacity: 2 x 1.5 mm
2
Stripping length: 6 mm
3 mm flat screwdriver
Technical data sheet: F02490EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
Cat. No.
0 648 88
C
C D Ø E
20 52 3
Updated: 22/07/2018
5. OPERATION
ON
RESET button used to return to factory settings
OFF
6. TECHNICAL CHARACTERISTICS
 6.1 Mechanical characteristics
Protection against impacts: IK 04
Protection against solid bodies/liquids: IP 20
 6.2 Material characteristics
Polycarbonate
Self-extinguishing:
+ 850°C/30 s for insulating parts holding live parts in place.
+ 650°C/30 s for the other insulating components.
 6.3 Electrical characteristics
ZigBee radio technology frequency 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
Wireless mesh network, self-adaptive and secure (AES 128), conforming
to standard IEEE 802.15.4 (LR-WPAN)
5 terminals: 1 auxiliary input
1 phase cut
1 phase
2 neutral
Consumption: - operation: 0.5 W
- standby: 0.2 W
Voltage: 100/240 V~
Frequency: 50/60 Hz
Cat. No: 0 648 88
ON/OFF button
LED indicator:
- useful during installation for configuration
Created: 12/02/2018
1/2
