H-2293, H-5154

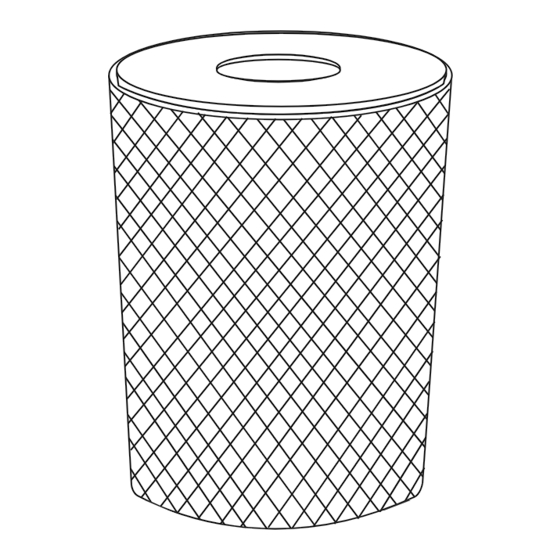

THERMOPLASTIC
TRASH CANS
TOOLS NEEDED
Electric Drill
3/8" Masonry
Receptacle Base
x 1
MOUNTING RECEPTACLE
Ensure all parts are present before assembly.
1.
If mounting receptacle to concrete, set receptacle
base in place and mark ground for drilling through
receptacle mounting holes. (See Figure 1)
NOTE: It is recommended to mount receptacle.
If not mounting or using other surface mounts
(not included), proceed to step 5.
PAGE 1 OF 3
Hammer
Drill Bit
Liner x 1
1-800-295-5510
uline.com
Goggles
PARTS
H-2293 Funnel Lid x 1
Anchor Set x 4
ASSEMBLY
Figure 1
OR
H-5154 Bonnet Lid x 1
Cable Band x 2
Cable x 1
0521 IH-2293
Advertisement
Table of Contents
Related Manuals for U-Line H-2293
Summary of Contents for U-Line H-2293
- Page 1 TRASH CANS TOOLS NEEDED Electric Drill 3/8" Masonry Hammer Goggles Drill Bit PARTS H-2293 Funnel Lid x 1 H-5154 Bonnet Lid x 1 Receptacle Base Liner x 1 Anchor Set x 4 Cable Band x 2 Cable x 1 ASSEMBLY...
- Page 2 ASSEMBLY CONTINUED WARNING: Wear eye protection when NOTE: Thread washer and nut onto anchor bolt. completing step 2. Nut should be tightened halfway between end of bolt and top of anchor sleeve. (See Figure 4) 2. Using a 3/8" diameter masonry drill bit, drill four holes 2½"...
- Page 3 ASSEMBLY CONTINUED 6. Holding the cable band, loop the end of cable 8. Repeat steps 5-7 with the opposite side of the cable through the hook on the underside of the trash can attaching to the edge of the receptacle base in lid.
