H-2171, H-2172

H-2173, H-2174

H-2298, H-2299

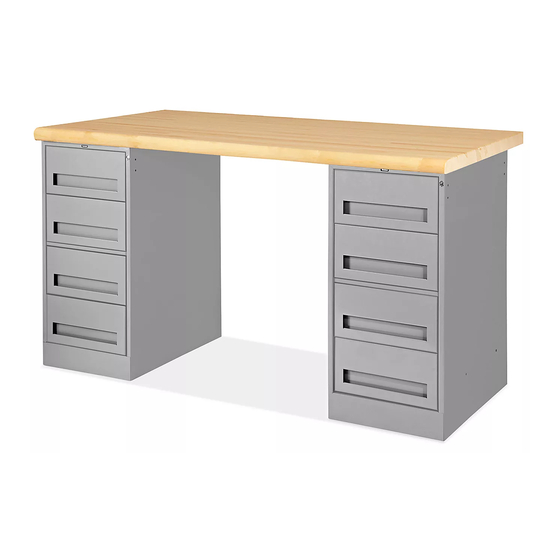

MODULAR

WORKSTATIONS

Place bench top on a smooth, non-marring surface

with top side facing down.

2. Partially insert eight #14 x ¾" hex head slotted

wood screws into predrilled holes in top, leaving

approximately 1⁄8" between top and screw heads.

Use holes located 61⁄2" from the front and back

edges and 131⁄2" apart. (See Figure 1)

3. Remove top two drawers or open cabinet doors.

Figure 1

PAGE 1 OF 2

1-800-295-5510

uline.com

HardWare

#14 x 3⁄4" Wood Screws x8

Wood or Laminate top assembLy

¼" - 20 x 5⁄8" Bolts x16

4. Place cabinets squarely 30" apart for 60" tops, or 42"

apart for 72" tops.

5. Set top assembly on cabinets, placing bolt heads in

keyhole slots, and then slide forward. (See Figure 2)

6. Position top so that ends of top are flush with cabinet

sides and tighten all screws.

Replace drawers or close cabinet doors.

Figure 2

0714 IH-2171

Page 1 H-2171, H-2172 π H-2173, H-2174 1-800-295-5510 H-2298, H-2299 uline.com MODULAR WORKSTATIONS HardWare #14 x 3⁄4" Wood Screws x8 ¼" - 20 x 5⁄8" Bolts x16 Wood or Laminate top assembLy Place bench top on a smooth, non-marring surface 4. Place cabinets squarely 30" apart for 60" tops, or 42"...
Page 2 steeL top assembLy Place bench top on a smooth, non-marring surface Figure 3 with top side facing down. 2. Four channels are supplied with top. Loosely attach two channels to ends of top with four ¼" - 20 x 5⁄8" bolts, leaving approximately 1⁄8" between bolt heads and channel.
