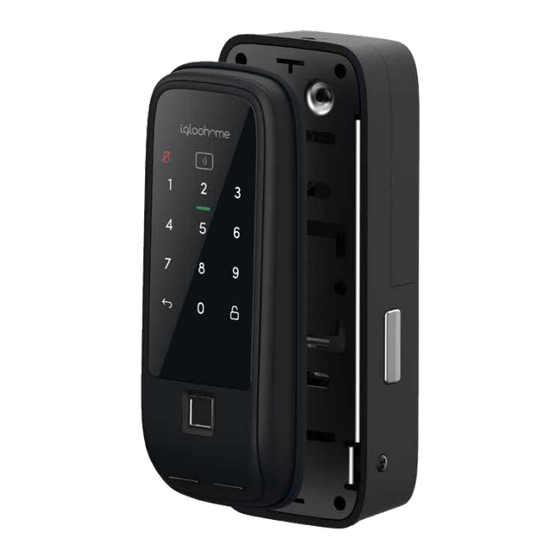

- Page 1 RM2 & RM2F Product Design Document Ver_0.2 Product Size: Front: 178.51mm x 72.59mm x 23mm Back: 197mm x 77mm x 40.2mm Updated on 04/07/2023 Prepared by Sid Butalia Industrial Designer...
-
Page 2: Table Of Contents
Content / Checklist Description Page Change Summary / 更新点 Overview Design Concept Front Body Design Back Body Design Touchplate Design Graphics Back Body Design Graphics Technical Drawing Overview Serial Number Sticker Label Design Summary... -
Page 3: Overview Design Concept
Overview Design Concept Front Body Back Body (Not to Scale) Paper size: A3 Scale: N.A Measurement Unit: mm... -
Page 4: Front Body Design
Front Body Design (Carry over from RW1) Changes for R50 to RW1/RM2/F Front: 1_ Replace the battery icon 2_ Replace the tank logo to igloohome logo in Chrome Finishing. 3_ Change the chrome metal rim to Pantone Black 6C. 4_ Replace the RFID icons in Chrome Finishing. -
Page 5: Back Body Design
18_ Change the main body color to Pantone Black 6C and retain the matte texture 19_ Retain the Chrome finish- ing and color of the bolt 20_ Add the igloohome logo in Pantone Cool Gray 8C PANTONE PANTONE Cool Gray 8 U BLACK 6C RGB 147 149 152... -
Page 6: Touchplate Design Graphics
Touchplate Design Graphics 2.85mm 2.85mm 72.59 PANTONE 25mm Cool Gray 8 U 4.691mm RGB 147 149 152 All Logo: HEX/HTML #939598 CMYK 20 11 12 32 25mm X 4.691mm Paper size: A3 Scale: 1:1 Measurement Unit: mm... -
Page 7: Back Body Design Graphics
Back Body Graphics 35.8mm 33.5mm PANTONE Cool Gray 8 U 35mm Centered 6.567mm RGB 147 149 152 HEX/HTML #939598 CMYK 20 11 12 32 6.82mm Company Logo: 35mm X 6.567mm PANTONE Cool Gray 8 U 4.17mm 5.51mm RGB 147 149 152 HEX/HTML #939598 CMYK 20 11 12 32 Button Logo: 4.17mm X 5.51mm Paper size: A3... -
Page 8: Technical Drawing Overview
Technical Drawing Overview 72.59 23.63 40.20 Paper size: A3 Scale: 1:1 Measurement Unit: mm... -
Page 9: Serial Number Sticker Label Design
Serial Number Sticker Label Design Serial Number sticker Ideal Material for Sticker label, Size: 30mm x 9.5mm Laminated Sticker / 层压贴纸 Font: So a Pro -Bold VA: -25 30mm 40mm - Serial number & barcode Serial No.: RW1-2010000001 9.5mm are sample for illustration 15mm purpose only. -
Page 10: Summary
Summary 72.59 23.63 40.20 30mm PANTONE Serial No.: RW1-2010000001 Cool Gray 8 U 9.5mm 35mm 6.567mm 40mm RGB 147 149 152 HEX/HTML #939598 CMYK 20 11 12 32 Do not print the Black outline 不要打印黑线 15mm Company Logo: 35mm X 6.567mm 15mm RW1X-BB-XXXXXX Approved by CPO: 15mm Anthony Chow... - Page 11 FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
