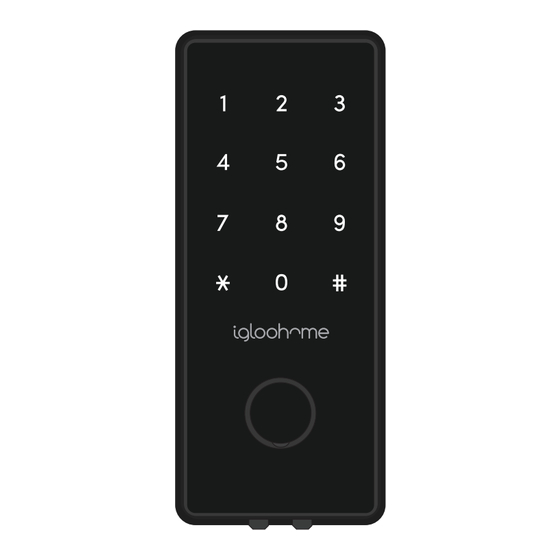

Igloohome Deadbolt 2S Installer/User Manual
Digital door lock
Hide thumbs
Also See for Deadbolt 2S:
- Installer/user manual (28 pages) ,
- Installer/user manual (41 pages) ,
- User manual
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Igloohome Deadbolt 2S
Summary of Contents for Igloohome Deadbolt 2S
- Page 1 Installers & User guide Deadbolt 2S. Version 0.2 05/18...
- Page 2 As our igloohome app is frequently updated, there may be changes to this manual. Please refer to our website igloohome.co/support for the latest version of the manual.
-
Page 3: Table Of Contents
Table of Contents What’s Included Specifications Requirements Lock Anatomy Prepare Door for Installation Prepare Lock for Installation Installation Instructions Test Lock Prepare the Door Frame Pairing Features Unlocking Locking Lock Tutorial Lock Behaviour Troubleshoot... -
Page 4: What's Included
What’s Included Back Plate Back Assembly Back Assembly Front Assembly Rubber Gasket & Rubber Gasket AA Alkaline Batteries x4 Strike Plate Housing & Bolt Assembly Screw Holder Strike Plate Keys x5 5mm (13/64”) 8mm (5/16”) Bolt Screw x2 Bolt Screw x2 Door Sensor &... -
Page 5: Specifications
Specifications Model igloohome Smart Deadbolt 2S Material Zinc Alloy, ABS Current Rating (Standby) ~30uA Current Rating (Active) ~200mA Batteries 4 x AA Alkaline (Non - Rechargeable) Unlock Mechanism Bluetooth, PIN code, Physical Keys, Thumbturn Front Side Back 60mm (2-23/64”) 11mm (7/16”) 51mm (2-1/64”) -
Page 6: Requirements
Requirements Door Thickness 35mm (1-3/8”) Height Clearance 60mm (2-3/8”) 20mm (25/32”) >110mm (4-21/64”) for 60mm (2-3/8”) backset >120mm (4-23/32”) for 70mm (2-3/4”) backset Recommended Gate Clearance Door Edge Clearance 9V Battery Clearance... -
Page 7: Lock Anatomy
Lock Anatomy Outer Body Battery Cover Release Touch Screen Keypad Battery Cover Key hole Cover (Remove cover to access Thumbturn physical key unlock) 9V Jumpstart... -
Page 8: Prepare Door For Installation
* Please ensure that there is an existing handle on your door for push - pull access. * Not for: metal gates, glass doors or sliding doors. If you are unsure if your door is suitable, send us web links to your door pictures to info@igloohome.co... - Page 9 How to use the Drill Sheet Drilling (Door) Fold here Make sure this is before drilling aligned to the centre holes for side of door edge 25mm (1”) Spade Bit 54mm (2-1/8”) Hole Saw Door edge Chiselling Put the bolt tongue in & Depth: chisel around the edge 4.5mm (11/64”)
-
Page 10: Prepare Lock For Installation
Prepare Lock For Installation Set Back Assembly for Left / Right Installation Left Installation Right Installation Set the toggle to ‘L’ for Set the toggle to ‘R’ for left-side installation. right-side installation. Remove Battery Cover from the Back Assembly Top View of Battery Cover Press the button on the top of the battery cover, and pull outwards. -
Page 11: Installation Instructions
Installation Instructions Measure If you are replacing your current deadbolt lock, industry standards are 60mm (2-3/8”) or 70mm (2-3/4”) backset. To determine which backset length you should use, so measure the distance (x) between the center of 54mm (2-1/8”) hole to door edge. 54mm (2-1/8”) Hole... - Page 12 Insert bolt and front assembly into door edge The ‘+ ‘ hole on the backset should be in the middle of the hole. Screw Holder Screws Please ensure that tailpiece is in vertical position. 15mm (19/32”) Secure the Front Assembly using the Back Plate. To do this, place the Back Plate (ensuring the correct side placement).
- Page 13 Screw it to the Front Assembly using the three 40mm (1-37/64”) screws. Screws 43mm (1-11/16”) Door Sensor Installation Adjust the position of the door sensor according to the door handling (left or right installation). Use the 2 x 5 (13/64) mm screws to secure the door sensor to the back plate. Left Installation Right Installation Screws...
- Page 14 Fit in the Rubber Gasket Insert the front assembly cable through the rectangular hole on the rubber gasket. The hole should be on the right side of the rubber gasket. Door Sensor Cable goes through the arched hole on the Rubber Gasket Assembly Cable Left Installation...
- Page 15 Connect Assembly Cable Connect the sensor cable to the Back Assembly then connect the assembly cable from the Front assembly through the 54mm hole to the Back Assembly. Ensure that the wire is installed properly and securely. Door Sensor Cable Assembly Cable Fit Back Assembly to the Door Tailpiece...
- Page 16 Secure the Back Assembly Screws 8mm (5/16”) 20mm (25/32”) Insert 4 AA Alkaline Batteries Before closing the battery case lid.
- Page 17 Close the battery case lid Push the battery case lid inwards to close. Side View...
-
Page 18: Test Lock
Tailpiece and/or thumbturn Left-Right toggle incorrectly set incorrectly set Troubleshoot: Try Setting the Troubleshoot: Dissemble lock left-right toggle on your back and install it again. assembly to the correct side. (See Pg. 10) Still experiencing issues? Go to igloohome.co/support for more help... -
Page 19: Prepare The Door Frame
Prepare the Door Frame Mark out where the bolt tongue locks then Ensure to align the lock to the door frame drill a corresponding hole on door frame. and mark it down. Chisel to fit the strike plate in as well. Door Frame 20mm... -
Page 20: Pairing
New users 1. Upon Login > Add a new igloohome lock > Select your Product > Pair Lock to App > Next 2. Enter your lock name > Confirm > Create New Home > Name Your Home > Submit >... -
Page 21: Features
Features PIN / Bluetooth Unlock Bluetooth Master Key Master PIN Code The igloohome Smart Deadbolt 2S The igloohome Smart Deadbolt 2S unlocks with Bluetooth via the app. unlocks with a permanent Master PIN Code. Decoy PIN Code User PIN Code... -
Page 22: Unlocking
Unlocking To unlock the door igloohome App Bluetooth Basic Unlock PIN Code / Decoy PIN Code Home Main Door Thumbturn Physical Key Basic Issue access Logs Legend PIN Code Bluetooth Guest Key Key in your PIN code and press ‘#’... -
Page 23: Locking
Locking To lock the door Timer Re-Lock Sensor Re-Lock ‘#’ Key (Recommended Accessory) Thumbturn Physical Key Legend ‘#’ Key Physical Key Press and hold ‘#’ Use the physical key to lock the door Timer Re-Lock Thumbturn Refer to Lock Tutorial - Step 7 Use thumbturn at the back of lock Sensor Re-Lock (Recommended Accessory) Automatic locking after door closes... -
Page 24: Lock Tutorial
Lock Tutorial - on Deadbolt 2S - on igloohome App Default factory PIN code In the factory mode (before pairing), the PIN to unlock is * 1234567890 # Setting Master PIN code Before proceeding, turn on your Bluetooth and ensure that you are within Bluetooth range of the lock. - Page 25 Lock Tutorial - on Deadbolt 2S - on igloohome App Edit PIN codes Once PIN code is generated, user must key the generated code onto the Keybox keypad followed by # to activate the code before proceeding. To change the PIN, enter: Press * >...
- Page 26 > Access Type : Bluetooth Key > Enter Access Details > Create Key To receive a Bluetooth Key, Download the igloohome app from iTunes or Google Play store and register/login to your account (a) To receive key via QR code, go to Home > Visits >...
-
Page 27: Lock Behaviour
Lock Behaviour Sensor Re-lock Security Lockout Mode Privacy Lockout Mode Press the Privacy Lockout button located 5 consecutive invalid PIN codes Activated by below the thumb turn on the back of the lock till you hear a long beep Wait for 5 Minutes Press Privacy Lockout Button Disable By Bluetooth Unlock... -
Page 28: Troubleshoot
