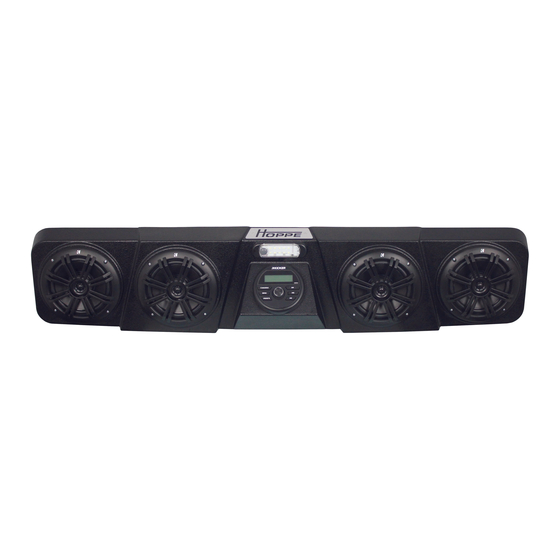

Hoppe AUDIO MINI Installation Instructions & Owner's Manual
Off-road sound system for polaris rzr pro xp / pro xp 4 / turbo r / turbo r 4 models
Hide thumbs
Also See for AUDIO MINI:
- Installation instructions & owner's manual (21 pages) ,
- Installation instructions manual (18 pages) ,
- Installation instructions and owner's manual (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hoppe AUDIO MINI
Summary of Contents for Hoppe AUDIO MINI
- Page 1 INSTALLATION INSTRUCTIONS / OWNER’S MANUAL: AUDIO MINI OFF-ROAD SOUND SYSTEM FOR POLARIS RZR PRO XP / PRO XP 4 / TURBO R / TURBO R 4 MODELS www.hoppeindustries.com 22667 FM 15 Troup, TX 75789 (262) 552-2770...
- Page 2 It is critical that proper eye wear, ear protection, and protective clothing is worn throughout the top installation. When you receive your Audio Mini off-road sound system, please check to ensure that all parts and hardware are included. If there are any parts missing or if you have any questions concerning the system at this time call Hoppe at (262)-552-2770 Mon-Thur.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION 1 – Tools Required .................... 4 SECTION 2 – About your Audio Mini sound system ............4 2.1 Applicable Year Models: ..................4 2.2 Audio Equipment Details: ..................4 2.3 Warranty: ........................5 2.4 Care and Maintenance: ..................... 5 2.5 Warnings: ........................ -
Page 4: Section 1 - Tools Required
SECTION 2 – About your Audio Mini sound system 2.1 Applicable Year Models: This Audio Mini off-road sound system is designed to fit the following Polaris RZR / RZR 4 models: 2020-2024 RZR Pro XP (all versions) ... -
Page 5: Warranty
2.3 Warranty: Your Audio Mini comes equipped with a 1 year limited warranty covering the light, the stereo equipment, and the plastic enclosure. The date of warranty coverage will be determined by the registration date of the warranty card or online warranty registration. -
Page 6: Warnings
2.5 Warnings: This off-road system adds up to 25 lbs. to your vehicle and is located up high on the roll cage. This increases the vehicle’s center of gravity and changes the vehicle dynamics and handling characteristics. Use extra caution as you learn the driving characteristics of your vehicle with your new off-road sound system installed. -
Page 7: Section 3 - Pre-Installation Inspection
SECTION 3 – Pre-Installation Inspection Included in your off-road sound system are the following components: Pre-assembled Audio Mini off-road sound system (All speakers and electronics come preinstalled with interior wire harness.) Chassis wire harness Mounting brackets Hardware bag ... -
Page 8: Section 4 - Installation
3. Place the provided loop clamps in the approximate mounting locations on the outside roll bars. The Audio Mini brackets will mount to the loop clamps and be tightened in the following steps. Be aware of the orientation of the loop clamps on the cage. - Page 9 It will be fully secured in the following steps. Verify correct orientation of the mounting bracket. See Figure 5. Note: Driver side shown. (Passenger side similar) Figure 5: Mounting location of the Audio Mini bracket. Revision - 9 of 17...
- Page 10 25 lbs. Since you will have to lift and bolt each end, it is helpful to have an assistant for this step. See Figure 7 and Figure 8. Figure 7: Install the ¼”-20 bolts and washers to mount the Audio Mini to the brackets. Revision -...
- Page 11 Torque the bolts to 40 ft.-lbs. See Figure 2. 10. Tighten both loop clamp bolts to secure them to the frame and the Audio Mini mounting brackets. See Figure 6. Torque the bolts to 25 ft.-lbs.
- Page 12 Figure 10: Open the center dash storage compartment. 12. Remove the storage compartment from the dash. Remove the grommet to pull the wire out of the storage compartment. See Figure 11. REMOVE GROMMET Figure 11: Remove the storage compartment. 13. Plug the chassis harness into the factory accessory port on the busbar. Secure the relay upright as shown in Figure 12.
- Page 13 ZIP TIE UPRIGHT Figure 12: Accessory busbar connection and relay orientation. 14. Route the mating connector under the dash, with the factory harness, toward the opening at the base of the driver’s front down tube (A-pillar). See Figure 13 and Figure 14.
- Page 14 A-pillar to the mating connector on the Audio Mini. Place zip ties and the zip tie base at indicated locations. Use the provided alcohol wipe to clean the cage before applying the zip tie base. See Figure 15 and Figure 16.
- Page 15 UP INSIDE OF TUBE UNDER A-PILLAR COVER Figure 15: Harness routing path through opening up the A-pillar. Revision - 15 of 17...
- Page 16 Figure 16: Harness A-pillar routing to the Audio Mini. 16. Tighten all zip ties, and secure the chassis harness to the factory harness under the dash. 17. Reinstall the rubber grommet and wire into the center dash storage compartment before installing it back in place. See Figure 11. Reinstall your roof if it was loosened or removed.
- Page 17 18. You are now ready to enjoy the music and lighting provided by your Audio Mini off-road sound system. Basic operation works as follows: Turn the vehicle ignition switch on to power up the stereo system. (You must press the power button for first time connections or if the power was previously turned off manually.)
