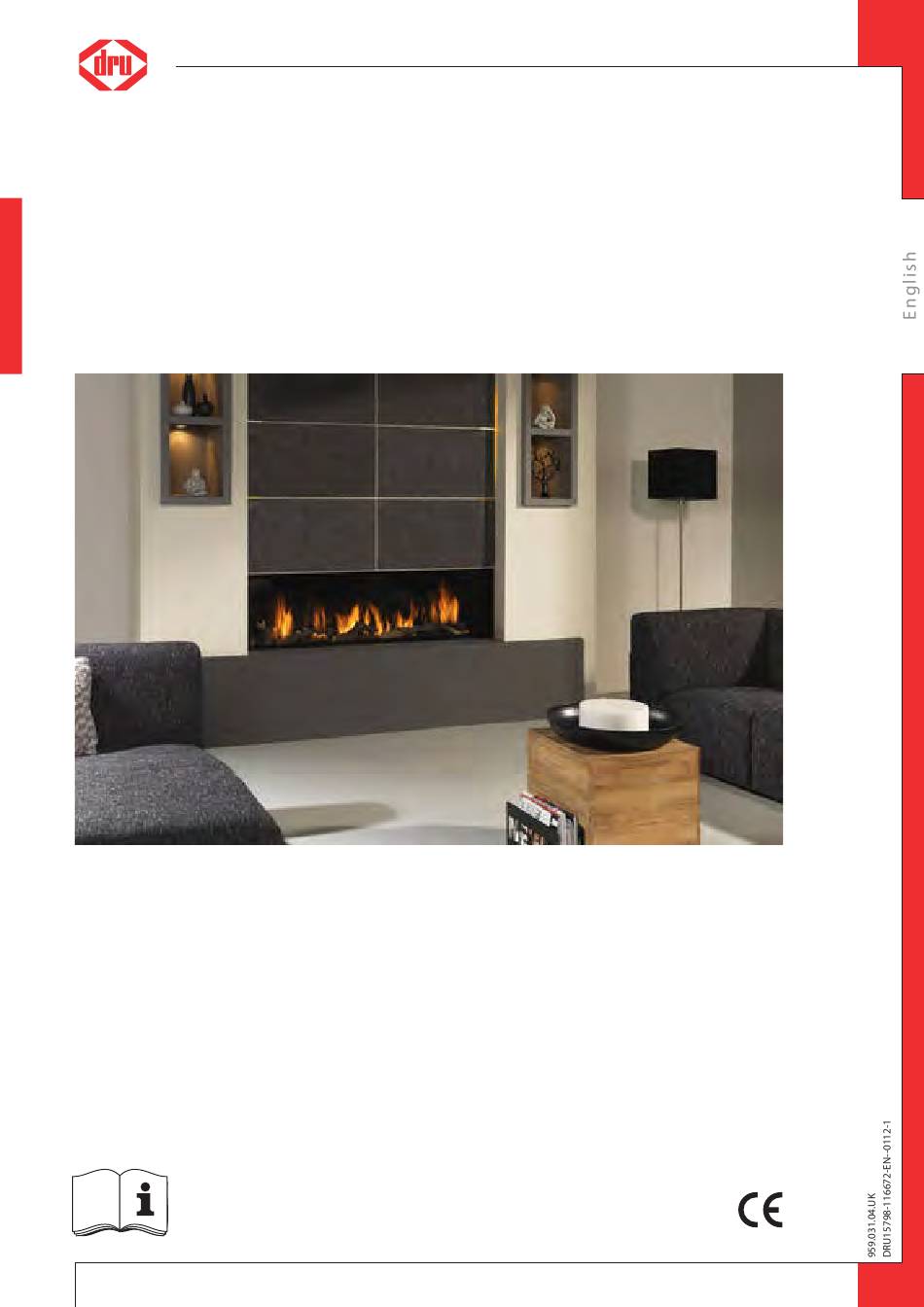

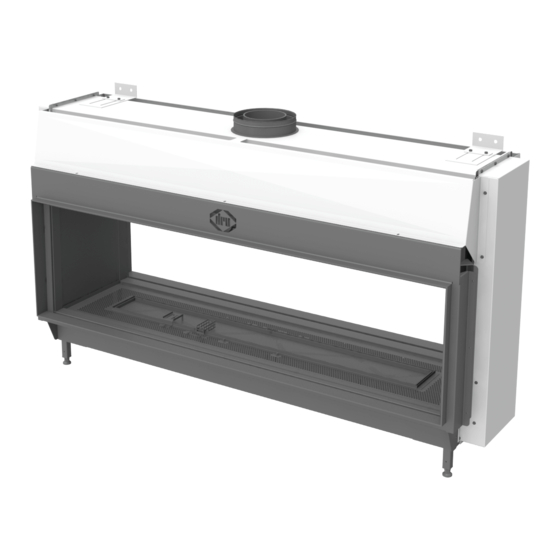

  • Page 1 Metro 150 XT Metro 150 XT Tunnel G20/G25/G31 Installation manual (GB/IE) Store this document in a safe place...

  • Page 2: Table Of Contents

    I NS T AL L A TI O N MA N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions/safety instructions during installation 3.4 Second thermocouple safety 3.5 Oxypilot safety 4. Removing the packaging 5.

  • Page 3: Introduction

    Please, read and use this installation manual carefully and completely, prior to installing this appliance. If you use the DRU Powervent system®, the DRU Smartvent system® or the DRU Maxvent system®, you must carefully and fully read and use the accompanying installation manual as well, prior to its installation.

  • Page 4: Safety

    CE label; Ø if you are installing an appliance with a closed combustion: only use the concentric systems supplied by DRU; Ø if you are installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text;...

  • Page 5: Removing The Packaging

    I NS T AL L AT I ON M A N U A L Removing the packaging Note the following items when removing the packaging: Ø Check the appliance and accessories for damages (during transport). Ø If necessary, contact your supplier. Ø...

  • Page 6: Installation

    I NS T AL L A TI O N MA N U A L Installation Read this manual carefully to ensure the proper and safe installation of the appliance. !Caution Install the appliance in the order described in this chapter. Ø...

  • Page 7: Placing A Built-In Appliance With Control Hatch

    !Tip You should preferably apply the ventilation holes on both sides of the chimney breast. You can use DRU ventilation elements. Prior to completely closing the chimney breast, check whether the discharge / concentric system is placed correctly.

  • Page 8: Placing The Control Hatch

    A number of components are placed in the control hatch, such as data plate, gas control, receiver belonging to the ® remote control and, if applicable, the control panel of the DRU Maxvent system or the components belonging to ®...

  • Page 9: Flue Gas Discharge System In Appliances With Open Combustion

    (see section 5.8.4). !Caution Only use the concentric system supplied by DRU This system has been tested in combination with the appliance. DRU cannot guarantee a proper and safe operation of other systems and does not accept any responsibility or liability for this;...

  • Page 10: Construction Of The Concentric System

    I NS T AL L A TI O N MA N U A L 5.8.2 Construction of the concentric system Depending on the construction of the concentric system, the appliance will have to be further adjusted with possibly a restrictor slide or air inlet guide. See Tables 4 and 6 for determining the correct adjustment and section 5.9, Adjustment of the appliance, for the method of working.

  • Page 11: Connection Existing Chimney

    The surrounding space is used to supply combustion air. The following requirements apply when connecting to an existing chimney: only allowed when used in combination with the special DRU chimney kit. The installation regulation is also supplied;...

  • Page 12: Additional Instructions

    I NS T AL L A TI O N MA N U A L 5.9 Additional instructions Ø Secure the appliance against the wall using the wall brackets (B) and rawplugs supplied (see Appendix 3, fig. 1). 5.10 Glass panes !Caution Avoid damaging the glass panes during removal/placing;...

  • Page 13: Adjustment Of The Appliance

    I NS T AL L AT I ON M A N U A L 5.11 Adjustment of the appliance The appliance has to be set in such a way that it works correctly in combination with the discharge system applied. For that purpose, a restrictor slide is placed and/or the air inlet guide is removed.

  • Page 14: Placing The Wood/Pebble Set

    I NS T AL L A TI O N MA N U A L 5.12 Placing the wood/pebble set The appliance is supplied with a wood set or a pebble set. The vermiculite that is used to fill the burner is black when using the wood set and has a natural colour when using the pebble set.

  • Page 15: Wireless Remote Control

    Place the receiver in its intended holder under the appliance or in the control hatch according to Appendix 3, fig. 39. If you want to use an adapter, only an adapter supplied by DRU will guarantee a proper operation of the receiver.

  • Page 16: Final Inspection

    I NS T AL L A TI O N MA N U A L 7. Final inspection In order to check whether the appliance is working properly and safely, you must perform the following inspections before the appliance is used. 7.1 Gastightness All connections must be gastight.

  • Page 17: Main Burner

    I NS T AL L AT I ON M A N U A L 7.3.2 Main burner The pilot burner should ignite the main burner within a couple of seconds, and without popping. !Caution The main burner(s) must cross the full burner smoothly and without popping and continue to burn. Ø...

  • Page 18: Maintenance

    I NS T AL L A TI O N MA N U A L 8. Maintenance The appliance must be inspected once per year by a skilled installer in the field of gas-fired heating, and repaired if necessary. Check at least whether the appliance is working properly and safely. !Caution Always close the gas tap during maintenance work;...

  • Page 19: Delivery

    I NS T AL L AT I ON M A N U A L Delivery You must explain to the user how to operate the appliance. You must give him/her instructions on putting it in operation, the safety measures, the operation of the remote control and annual maintenance (see the User Manual).

  • Page 20: Appendix 1 Diagnosis Of Malfunctions

    I NS T AL L A TI O N MA N U A L Appendix 1 diagnosis of malfunctions Fires with electronic ignition, fault finding: Ignition and burning Start 2.10 Do(es) main burner(s) 2.06 Pilot can be lit. 2.08 Does main burner ignite ignite smoothly and across 2.01 Can pilot be lit? Does it stay alight?
  • Page 21 Flame transfer main burner proper flue terminal used (no slots allowed) Is flame transfer main burner Make should be 'DRU' Flames: too high terminal correctly sited on roof or wall relative to Line pressure Flame must heat 2nd couple within obstructions.
  • Page 22 IN S TA L L A TI O N M A N U A L Malfunction search diagram atmospheric gas-fired heating appliance with electronic ignition: Starting up cycle Start 1.05 Short beeps, 1sec after another, 1.01 Does receiver beep? 1.03 One long 5 second beep, followed by clicking noise of gas (possibly preceded by 7 short valve opening, possibly followed...
  • Page 23 I NS T AL L AT I ON M A N U A L Appendix 2 Table 1: Parts included with the delivery Part Number Wood set / pebble set Control hatch Control hatch manual Installation manual User manual Decorative strip left Decorative strip right Decorative strip below Gauge for restrictor slide...
  • Page 24 IN S TA L L A TI O N M A N U A L Table 2: Technical data Product name Metro 150 XT + Tunnel Type of appliance Built-in Combustion Closed combustion Supply and discharge system Concentric 200/130 Flame protection version...
  • Page 25 I NS T AL L AT I ON M A N U A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G31...
  • Page 26 IN S TA L L A TI O N M A N U A L Permissibility and conditions concentric system with roof terminal Table 5: Determining permissibility concentric system G20/G25/G31 Total number of meters Total no. of meters vertical and/or sloping pipe length horiz.
  • Page 27 I NS T AL L AT I ON M A N U A L Appendix 3 Figures 1504 1504 1686 1686 1500 1500 38C-1499/1 38C-1509/0 Metro 150 XT Metro 150 XT Tunnel min. 15 max. 100 min. 400 Metro 150 min. 435 Metro 150 Tunnel Tot. min. 200 cm²...
  • Page 28 I NS T AL L A TI O N MA N U A L 38c-1078...
  • Page 29 I NS T AL L AT I ON M A N U A L...
  • Page 30 IN S TA L L A TI O N M A N U A L 38c-1511 38C-1692 38C-1662/0 38P-0167...
  • Page 31 I NS T AL L AT I ON M A N U A L 38p-0022 38p-0023 3 8 P - 0 1 1 3 38P-0169...
  • Page 32 IN S TA L L A TI O N M A N U A L 38P-0168...
  • Page 33 I NS T AL L AT I ON M A N U A L...
  • Page 34 IN S TA L L A TI O N M A N U A L 38c-1657 /0 38P-0175 38P-0176...
  • Page 35 I NS T AL L AT I ON M A N U A L 38p-0180 38p-0181 38p-0179 SECTION A-A SCALE 1 : 20 38p-0182 38C-1663/0...
  • Page 36 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
