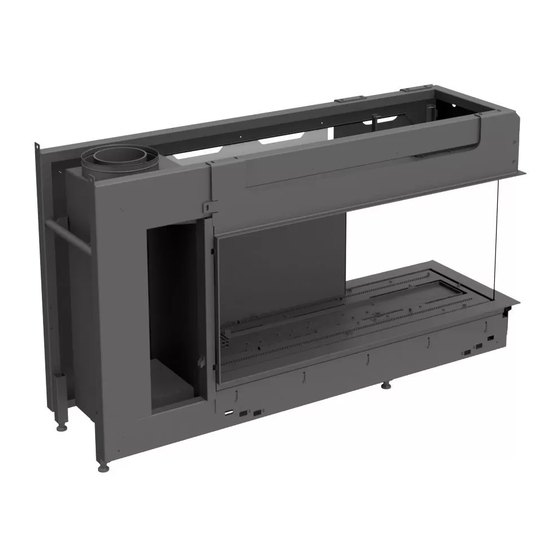

Dru Metro 100XT Tunnel 41 RCH Installation Manual

Hide thumbs Also See for Metro 100XT Tunnel 41 RCH:
Table of Contents

Advertisement

Quick Links

Download this manual
Metro 100XT 41 RCH
Metro 100XT Tunnel 41 RCH
G20/G25/G25.3 (Natural gas) G31 (Propane)
Installation manual (UK/IE)
Store this document in a safe place
UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Metro 100XT Tunnel 41 RCH and is the answer not in the manual?

Questions and answers

Related Manuals for Dru Metro 100XT Tunnel 41 RCH

Summary of Contents for Dru Metro 100XT Tunnel 41 RCH

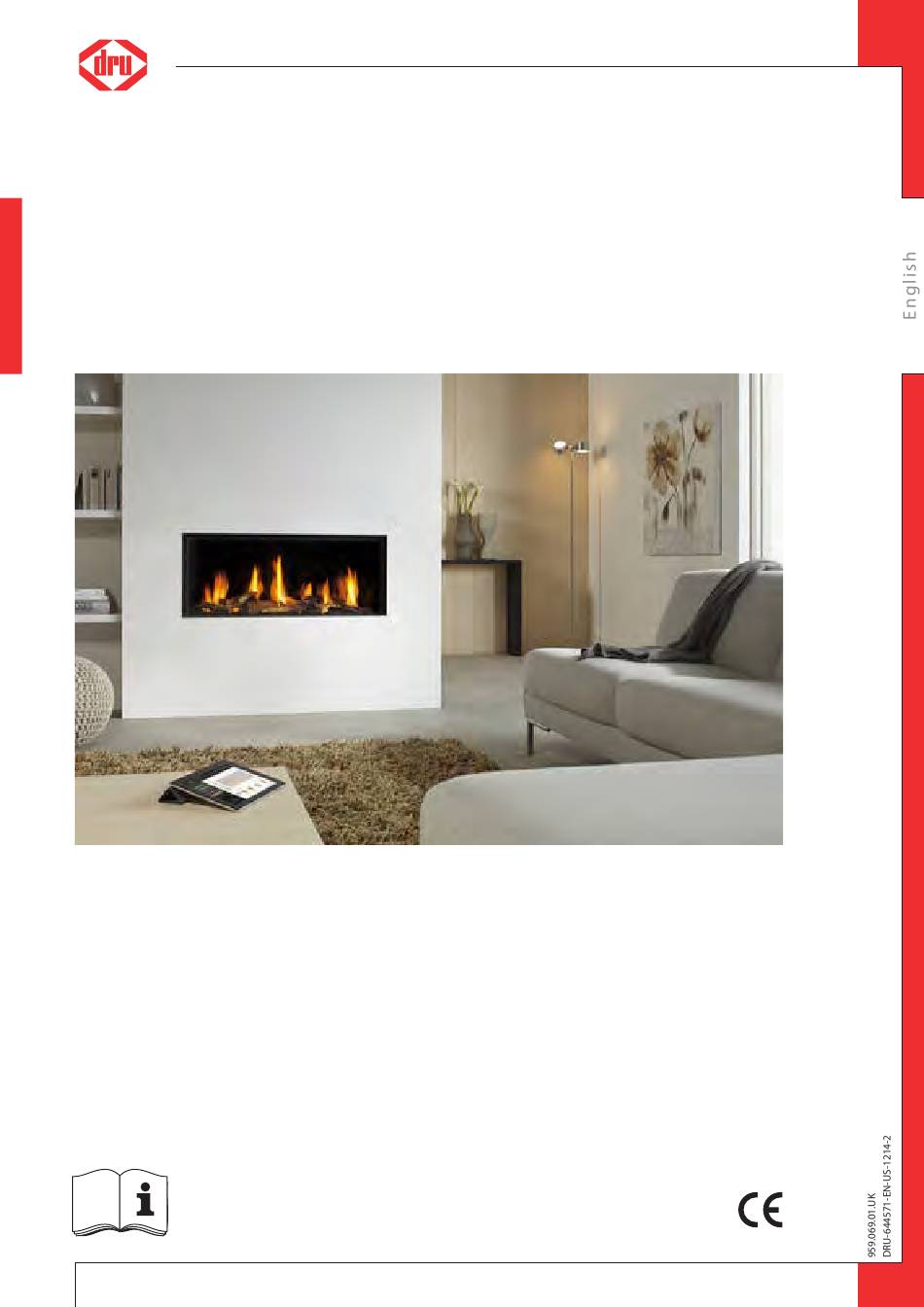

  • Page 1 Metro 100XT 41 RCH Metro 100XT Tunnel 41 RCH G20/G25/G25.3 (Natural gas) G31 (Propane) Installation manual (UK/IE) Store this document in a safe place...

  • Page 2: Table Of Contents

    I NS T AL L A TI O N MA N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4. Removing the packaging 5.

  • Page 3: Introduction

    Please, read and use this installation manual carefully and completely, prior to installing this appliance. If you use the DRU Powervent system® or the DRU Smartvent system®, you must carefully and fully read and use the accompanying installation manual as well, prior to its installation.

  • Page 4: Safety

    CE label; Ø if you are installing an appliance with closed combustion: only use the concentric systems supplied by DRU; Ø if you are installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text;...

  • Page 5: Principle Of Ignition Cycle

    I NS T AL L AT I ON M A N U A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The appliance is off and will be switched on by means of the remote control. The receiver will get the signal to start the ignition process.

  • Page 6: Installation

    It is possible to operate one or more lamps (in case of several lamps, a maximum of 8A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36).

  • Page 7: Placing A Built-In Appliance

    5.5 Placing a built-in appliance (if applicable) Not all built in appliances by DRU are supplied with a control hatch. If it is not included, this control hatch is available separately. We recommend using the Dru control hatch at all times. In this chapter, it is assumed that the appliance is used with a control hatch.

  • Page 8: Placing The Control Hatch

    The dimensions of the control hatch; see Placing the control hatch section 5.7; • The Dru control hatch is not supplied with all appliances. Nevertheless, we recommend only using a Dru control hatch, if available, except in the case of B appliances.
  • Page 9 I NS T AL L AT I ON M A N U A L Ø Mount the bracket with components to the inner frame (A). Proceed as follows: • Unwind the cables. This will, amongst other things, prevent a poor operation of the ignition. •...
  • Page 10 !Caution • Only use the concentric system supplied by DRU This system has been tested in combination with the appliance. DRU cannot guarantee a proper and safe operation of other systems and does not accept any responsibility or liability for this;...
  • Page 11 The surrounding space is used to supply combustion air. The following requirements apply when connecting to an existing chimney: • only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery; •...

  • Page 12: Additional Instructions

    I NS T AL L A TI O N MA N U A L 5.10 Additional instructions • If the appliance is connected to natural gas (G25/G25.3 only in the Netherlands), the primary aeration must be !Caution changed by moving the adjustable rings (see section 5.12.3). •...

  • Page 13: Placing The Glass Pane

    I NS T AL L AT I ON M A N U A L 5.11.2 Placing the glass pane The glass pane is fitted by using the above procedure in reverse order (see appendix 3, fig. 6 up to 11). Avoid/remove fingerprints on the glass pane, as they will burn into the glass.

  • Page 14: Restrictor Slide

    I NS T AL L A TI O N MA N U A L 5.12 Setting the appliance The appliance has to be set in such a way that it works correctly in combination with the concentric system. For that purpose, a restrictor slide is placed and/or the air inlet guide is removed. The conditions for application with wall terminal and roof terminal are stated in appendix 2, tables 4, 5 and 6.

  • Page 15: Placing The Wood, Pebble And Broken Glass Sets

    I NS T AL L AT I ON M A N U A L 5.13 Placing the wood, pebble and broken glass sets The appliance is supplied with a wood, pebble or broken glass set. The vermiculite that is used to fill the burner is black in case of the wood and broken glass sets. In the case of the pebble set, the vermiculite has a natural colour.

  • Page 16: Control

    I N ST A L L A T I ON M A NU AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling a receiver.

  • Page 17: Final Inspection

    Such a connection can only be established with a communication module (see Appendix 3, fig. 35 (W)). This module can be ordered from DRU. This communication module translates the ‘modbus’ protocol from the Domotics system into a wireless signal to the receiver.

  • Page 18: Gas Pressure/Line-Pressure

    I NS T AL L A TI O N MA N U A L 7.2 Gas pressure/line-pressure The burner pressure is set at the factory; see data plate. The line-pressure in house installations must be checked, because it can be wrong. !Caution Ø...

  • Page 19: Flame Picture

    I NS T AL L AT I ON M A N U A L Ø Check operation of the main burner from a cold condition. Ø If sparks are determined between the ignition electrodes, the main burner should burn within a few seconds. !Tip The flame picture and a good flame transfer can only be properly judged if the glass window is installed.

  • Page 20: Delivery

    I NS T AL L A TI O N MA N U A L Delivery You must explain to the user how to operate the appliance. You must give him/her instructions on putting it into operation, the safety measures, the operation of the remote control and the annual maintenance (see the User Manual).

  • Page 21: Appendix 1 Malfunctions

    I NS T AL L AT I ON M A N U A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact...
  • Page 22 IN S TA L L A TI O N M A N U A L Error messages Error code Problem Possible cause Remedy Ionization pin Replace the ionization (follow-up) defective (measure ionization current when 0) ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself.

  • Page 23: Appendix 2 Tables

    I NS T AL L AT I ON M A N U A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Installation manual User manual Wood set / Pebble set / Broken glass set Glow material Restrictor slide Remote control Mains lead...
  • Page 24 IN S TA L L A TI O N M A N U A L Table 2: Technical data Product name Metro 100XT 41 RCH / Metro 100XT Tunnel 41 RCH Type of appliance Built-in Combustion Closed combustion Supply and discharge system...
  • Page 25 I NS T AL L AT I ON M A N U A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3/G31...
  • Page 26 IN S TA L L A TI O N M A N U A L Table 5: Determining permissibility concentric system with roof terminal G20/G25/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length horiz. pipe length no bends 2 bends 3 bends...

  • Page 27: Appendix 3 Figures

    I NS T AL L AT I ON M A N U A L Appendix 3 Figures 1061 1247 1000 38C-2081 /0 Metro 100XT RCH41 1061 1247 1000 38C-2082 /0 Metro 100XT RCH41 Tunnel...
  • Page 28 I NS T AL L A TI O N MA N U A L Tot. min. 200cm 38C-2086 /0...
  • Page 29 I NS T AL L AT I ON M A N U A L 38C-1868 d /0 1x90° 1x90° 38c-744zm 38c-744zl 0 - 3 m 0 - 8m 1x90° 1x90° 38c-744w 38c-744zo 0 - 1m...
  • Page 30 IN S TA L L A TI O N M A N U A L 38C-2083 /0 38C-1897 /0...
  • Page 31 I NS T AL L AT I ON M A N U A L MAX 1CM 38C-1899 /0 38C-1898 /0 38C-1901 /0 38C-1900 /0...
  • Page 32 IN S TA L L A TI O N M A N U A L 38c-2084 /0 38c-2085 /0 38c-2087 /0...
  • Page 33 I NS T AL L AT I ON M A N U A L 38P-0432 38P-0502 38P-0504 38P-0503 38p-0022 38p-0023 38P-0028 /1...
  • Page 34 IN S TA L L A TI O N M A N U A L 38p-0494 38p-0496 /1...
  • Page 35 I NS T AL L AT I ON M A N U A L 38P-0525 /0...
  • Page 36 IN S TA L L A TI O N M A N U A L 38P-0526 /0...
  • Page 37 I NS T AL L AT I ON M A N U A L 38p-0527 /0 Tunnel 38p-0528 /0 38p-0501...
  • Page 38 IN S TA L L A TI O N M A N U A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router 38p-0320 /0 – 0 – 3V...
  • Page 39 I NS T AL L AT I ON M A N U A L     І     І     І     І     І  ...
  • Page 40 IN S TA L L A TI O N M A N U A L 38C-2064...
  • Page 41 I NS T AL L AT I ON M A N U A L...
  • Page 42 IN S TA L L A TI O N M A N U A L...
  • Page 43 I NS T AL L AT I ON M A N U A L...
  • Page 44 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
