Dru Metro 100 XT Tunnel Installation Manual

G20/g25/g25.3 natural gas
Hide thumbs Also See for Metro 100 XT Tunnel:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Metro 100 XT
Metro 100 XT Tunnel
G20/G25/G25.3 Natural gas
Installation manual (UK/IE)
Store this document in a safe place
UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Metro 100 XT Tunnel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dru Metro 100 XT Tunnel

Summary of Contents for Dru Metro 100 XT Tunnel

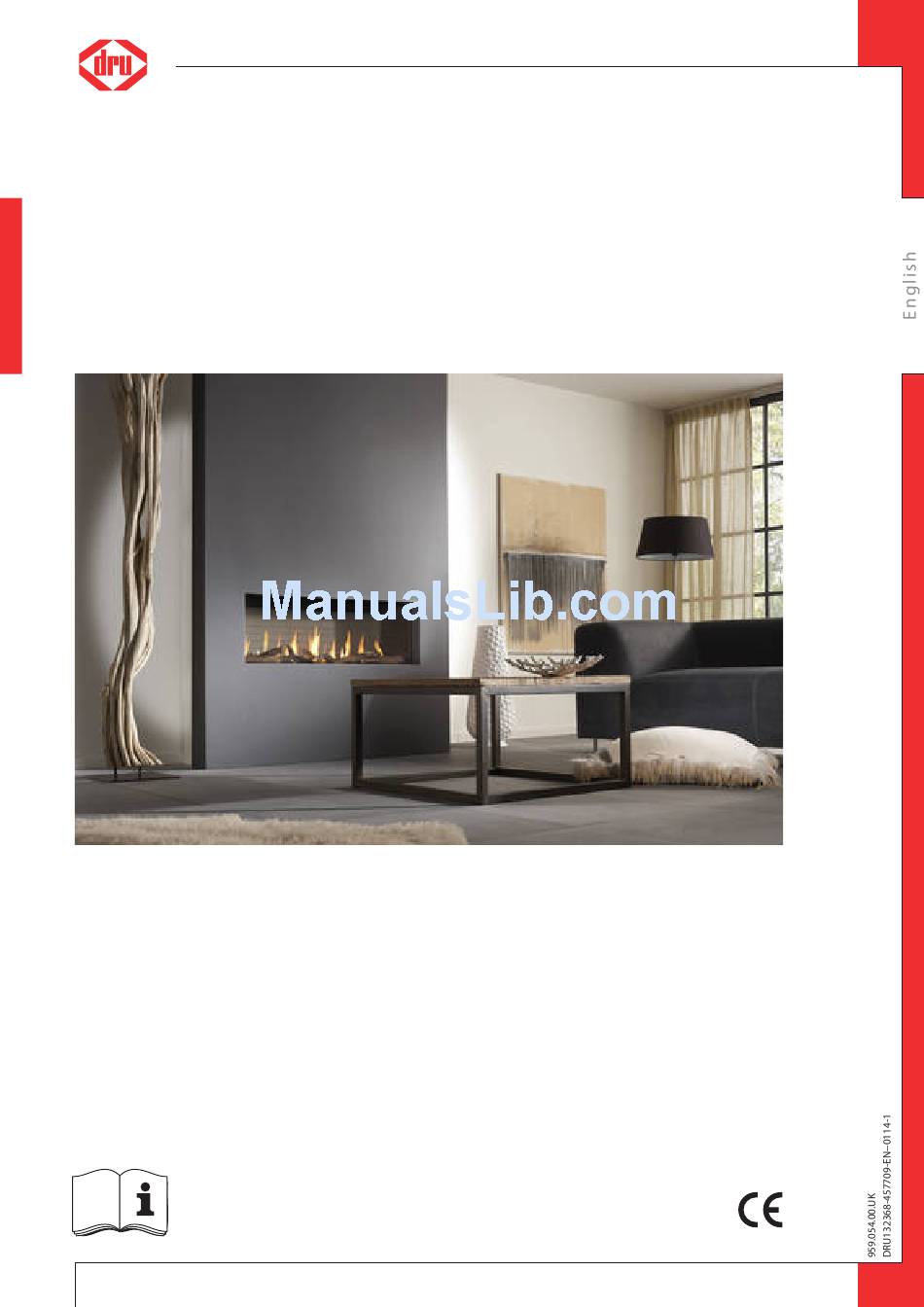

  • Page 1 Metro 100 XT Metro 100 XT Tunnel G20/G25/G25.3 Natural gas Installation manual (UK/IE) Store this document in a safe place...

  • Page 2: Table Of Contents

    I NS T AL L A TI O N MA N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4. Removing the packaging 5.

  • Page 3: Introduction

    Please, read and use this installation manual carefully and completely, prior to installing this appliance. If you use the DRU Powervent system®, the DRU Smartvent system® or the DRU Maxvent system®, you must carefully and fully read and use the accompanying installation manual as well, prior to its installation.

  • Page 4: Safety

    CE label; Ø if you are installing an appliance with closed combustion: only use the concentric systems supplied by DRU; Ø if you are installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text;...

  • Page 5: Principle Of Ignition Cycle

    I NS T AL L AT I ON M A N U A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The appliance is off and will be switched on by means of the remote control. The receiver will get the signal to start the ignition process.

  • Page 6: Installation

    It is possible to operate one or more lamps (in case of several lamps, a maximum of 8A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36).

  • Page 7: Placing A Built-In Appliance

    (if applicable) Not all built in appliances by DRU are supplied with a control hatch. If it is not included, this control hatch is available separately. We recommend using the Dru control hatch at all times. In this chapter, it is assumed that the appliance is used with a control hatch.

  • Page 8: Placing The Chimney Breast

    The dimensions of the control hatch; see Placing the control hatch section 5.7; The Dru control hatch is not supplied with all appliances. Nevertheless, we recommend only using a Dru control hatch, which can be supplied separately, if necessary. If you decide not to take this option, you will...
  • Page 9 I NS T AL L AT I ON M A N U A L The inner frame should be placed in the correct way. Two positions are possible. Placing the inner frame !Caution with a rotation of 180° is not allowed (see Appendix 3, fig. 4). !Tip When the chimney breast is made of bricks, the inner frame can be built with bricks at the same time;...
  • Page 10 If necessary, you can also use an existing chimney (see section 5.9.4). !Caution Only use the concentric system supplied by DRU This system has been tested in combination with the appliance. DRU cannot guarantee a proper and safe operation of other systems and does not accept any responsibility or liability for this;...

  • Page 11: Placing Concentric System

    The surrounding space is used to supply combustion air. The following requirements apply when connecting to an existing chimney: only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery;...

  • Page 12: Additional Instructions

    5.11.2 Fitting the glass pane The glass frame is fitted by using the above procedure, in reverse order. The DRU logo should be in the bottom right corner; !Caution The self-tapping screws should not be over-tightened, since otherwise they could break or strip the thread: tight=tight;...

  • Page 13: Restrictor Slide

    I NS T AL L AT I ON M A N U A L 5.12 Adjusting the appliance The appliance has to be set in such a way that it works correctly in combination with the discharge system applied. For that purpose, a restrictor slide is placed and/or the air inlet guide is removed. The conditions for application with wall terminal and roof terminal are stated in Appendix 2, Tables 4, 5 and 6.

  • Page 14: Placing The Wood/Pebble Set

    I NS T AL L A TI O N MA N U A L 5.13 Placing the wood/pebble set The appliance is supplied with a wood set or a pebble set. The vermiculite that is used to fill the burner is black when using the wood set and has a natural colour when using the pebble set.

  • Page 15: Pebble Set

    I NS T AL L AT I ON M A N U A L 5.13.2 Pebble set The pebble set consists of naturally coloured vermiculite (see Appendix 3, fig. 25) and white carrera pebbles. Ø Remove the positioning ridges as shown in Appendix 3, fig. 34C. Ø...

  • Page 16: Control

    I N ST A L L A T I ON M A NU AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling a receiver.

  • Page 17: Final Inspection

    Such a connection can only be established with a communication module (see Appendix 3, fig. 35 (W)). This module can be ordered from DRU. This communication module translates the ‘modbus’ protocol from the Domotics system into a wireless signal to the receiver.

  • Page 18: Ignition Main Burner

    I NS T AL L A TI O N MA N U A L 7.3 Ignition main burner For igniting the main burner, see the User Manual. 7.3.1 First ignition of the appliance after installation or adjustments. !Caution After installation, or after work has been performed, you should ignite the appliance for the first time without the glass window.

  • Page 19: Flame Picture

    I NS T AL L AT I ON M A N U A L 7.4 Flame picture The flame picture can only really be assessed when the appliance has been burning for several hours. Volatile components from paint, materials, etc., which evaporate in the first hours, will affect the flame picture. If the chimney breast is made of stone-like materials or has a plaster finish, the appliance may only be put into !Caution operation 6 weeks after the chimney breast has been placed, in order to prevent shrinkage cracks.

  • Page 20: Delivery

    I NS T AL L A TI O N MA N U A L Delivery You must explain to the user how to operate the appliance. You must give him/her instructions on putting it into operation, the safety measures, the operation of the remote control and the annual maintenance (see the User Manual).

  • Page 21: Appendix 1 Malfunctions

    I NS T AL L AT I ON M A N U A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact...
  • Page 22 IN S TA L L A TI O N M A N U A L Error messages Error code Problem Possible cause Remedy Ionization pin Replace the ionization (follow-up) defective (measure ionization current when 0) ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself.
  • Page 23 I NS T AL L AT I ON M A N U A L Appendix 2 Table 1: Parts included with the delivery Part Number Wood set / pebble set Control hatch Control hatch manual Installation manual User manual Decorative strip left Metro 100XT (Tunnel) 1x (2x) Decorative strip right Metro 100XT (Tunnel) 1x (2x)
  • Page 24 IN S TA L L A TI O N M A N U A L Table 2: Technical data Product name Metro 100XT / Metro 100XT Tunnel Type of appliance Built-in Combustion Closed combustion Supply and discharge system Concentric 150/100 Flame protection version Separated ignition / ionization plugs Atmosphere safety...
  • Page 25 I NS T AL L AT I ON M A N U A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3...
  • Page 26 IN S TA L L A TI O N M A N U A L Permissibility and conditions concentric system with roof terminal Table 5: Determining permissibility concentric system G20/G25/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length horiz.

  • Page 27: Appendix 3 Figures

    I NS T AL L AT I ON M A N U A L Appendix 3 Figures 1005 1005 1188 1188 1001 1001 38c-1296 38c-1297 Metro XT Metro XT tunnel min. 1300 Tot. min min 400 Metro 100 XT 200 CM min 446 Metro 100 XT Tunnel min 450 1008...
  • Page 28 I NS T AL L A TI O N MA N U A L 38C-1868 d /0...
  • Page 29 I NS T AL L AT I ON M A N U A L 38p-0321 /0...
  • Page 30 IN S TA L L A TI O N M A N U A L...
  • Page 31 I NS T AL L AT I ON M A N U A L 38C-1634 38C-1695 38c-1455/0 38P-0432 38P-0263 38P-0433 38P-0434...
  • Page 32 IN S TA L L A TI O N M A N U A L 38p-0023 38p-0022 38P-0028 /1 38P-0262 38p-0435...
  • Page 33 I NS T AL L AT I ON M A N U A L 38p-0256 38P-0258 38P-0259...
  • Page 34 IN S TA L L A TI O N M A N U A L 38P-0436 38p-0438 38p-0437...
  • Page 35 I NS T AL L AT I ON M A N U A L 38C-1760 0 – 3 V Modbus WiFi 38C-1871 /0 Router...
  • Page 36 IN S TA L L A TI O N M A N U A L 38p-0320 /0 – 0 – 3V І І         І І        ...
  • Page 37 I NS T AL L AT I ON M A N U A L 38p-0319 /1...
  • Page 38 IN S TA L L A TI O N M A N U A L...
  • Page 39 I NS T AL L AT I ON M A N U A L...
  • Page 40 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
