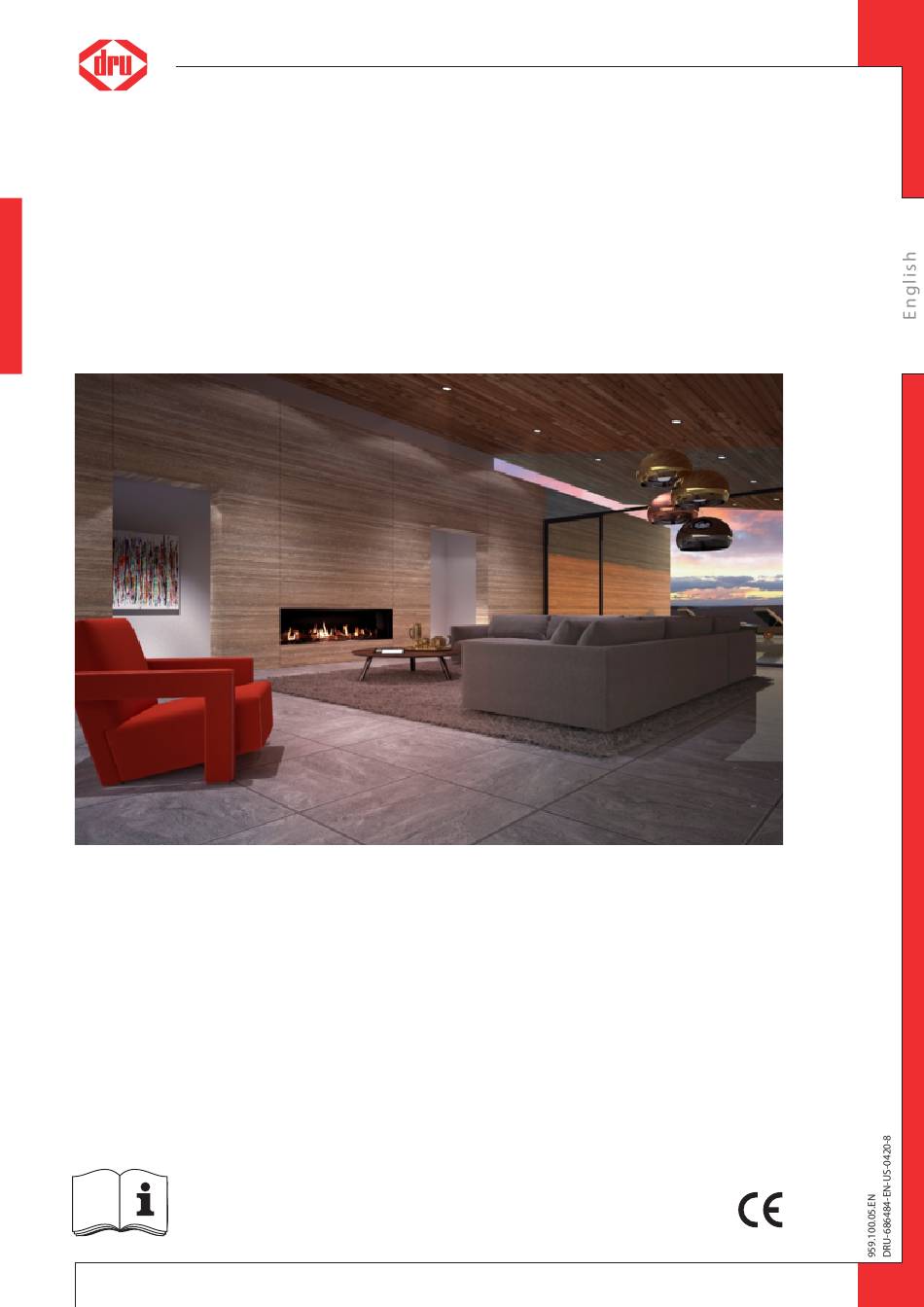

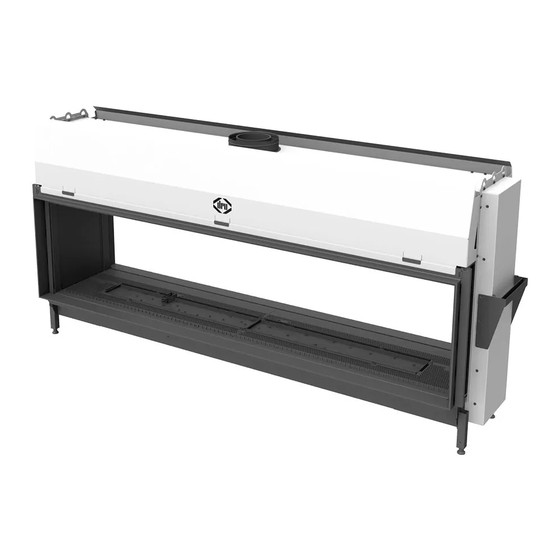

- Page 1 Metro 200XT RCH Metro 200XT Tunnel RCH G20/G25/G25.3 Natural gas Installation manual Store this document in a safe place...
-
Page 2: Table Of Contents
I N S T A L LA T I O N M A N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4. -
Page 3: Introduction
This declaration loses its validity if changes are made to the appliance without written permission from DRU. The instructions in the manuals must also be observed at all times. -
Page 4: Safety
This has to do with the temperature development in the chimney breast. Ø Only use the flue gas discharge / combustion air supply system supplied by DRU. Ø When installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text. -
Page 5: Principle Of Ignition Cycle
IN S T A LLA TION M A NU A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The receiver in the appliance will get a signal from the remote control to start the ignition process. The receiver will get the signal to start the ignition process. -
Page 6: Installation
Check whether the appliance is suitable for the type of gas and gas pressure used at the location. !Caution 5.1.1 Reconstruction to different type of gas In order to convert this appliance to a different type of gas, please contact DRU's service department and ask for the possibilities. 5.2 Gas connection Place a gas tap in the gas pipe in accordance with the applicable regulations. -
Page 7: Placing The Appliance
It is possible to operate one or more lamps (in case of several lamps, a maximum of 0.5A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36). -
Page 8: Placing The Chimney Breast
!Tip You should preferably apply the ventilation holes (outgoing) on both sides of the chimney breast. Use the DRU ventilation elements. Check the following issues, before the chimney breast is fully closed: •... -
Page 9: Concentric System
5.8 Concentric system 5.8.1 General The appliance is connected to a flue gas discharge / combustion air supply system delivered by DRU, hereafter referred to as the concentric system. The diameter for this connection is indicated in appendix 2, table 2. The passage to the outside can be created with a wall terminal (C11) or a roof terminal (C31). - Page 10 I N S T A L LA T I O N M A N U A L The concentric system is constructed from (the flue spigot of) the appliance. If, due to constructional circumstances, the concentric system is placed first, it is possible to connect the appliance by means of a telescopic pipe piece.
-
Page 11: Connection To An Existing Chimney (C91)
The following requirements apply when connecting to an existing chimney: • Only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery. •... -
Page 12: Additional Instructions
I N S T A L LA T I O N M A N U A L 5.10 Additional instructions • Use the correct tools in order to move the appliance. This in relation to its weight (+/-270kg). !Caution • In case of the Tunnel version of this appliance, it is important to know that the tilting mechanism of the glass pane is only located on one side of the appliance. -
Page 13: Glass Panes
IN S T A LLA TION M A NU A L 5.12 Glass pane The glass pane is mounted in a steel frame. Only in case of a crack or break, it will be necessary to replace the glass pane in the steel frame. When the glass pane is referred to in this document, this will include the steel frame. !Caution •... -
Page 14: Placing The Wood, Pebble And Broken Glass Sets
Place the vermiculite plate (consisting of 4 sections) in the appliance, as indicated (see appendix 3, fig. 18b). Plate numbers 1, 2, 3 and 4 are intended for the Metro 200XT FRONT and plate numbers 1, 2, 5 and 6 for the Metro 200XT TUNNEL. - Page 15 Place the vermiculite plate (consisting of 4 sections) in the appliance, as indicated (see appendix 3, fig. 29). Plate numbers 1,2,3 and 4 are intended for the Metro 200XT FRONT and plate numbers 1,2,5 and 6 for the Metro 200XT TUNNEL.
-
Page 16: Control
IN S TA LLA TION M A N U AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling the receiver. - Page 17 6.2.2.2 Control via application Also when operating the appliance via a tablet provided with the DRU Control App (iOS or Android), you will need a communication module. This module can be ordered from DRU. In order to control the fire via an application, proceed as follows: Ø...
-
Page 18: Final Inspection
I N S T A L LA T I O N M A N U A L 7. Final inspection In order to check whether the appliance is working properly and safely, you must perform the following inspections before the appliance is put into operation. 7.1 Gastightness All connections must be gastight. -
Page 19: Flame Picture
IN S T A LLA TION M A NU A L !Tip When checking whether the main burner continuous to burn, it is possible that it switches off after 15 seconds. In that case, this will be caused by the fact that there is no ionization detection and because the glass window has not been placed. -
Page 20: Parts
I N S T A L LA T I O N M A N U A L Ø Perform the inspection as described in chapter 7. 8.1 Parts Components that have to be replaced are available at the supplier. Delivery You must explain to the user how to operate the appliance. -
Page 21: Appendix 1 Malfunctions
IN S T A LLA TION M A NU A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact Communication cable... - Page 22 I N S T A L LA T I ON M A N U A L Error messages Error code Problem Possible cause Remedy ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself F13/F14 ( no ionisation <0.8 µA) Flame loss Ionisation pin short-circuited Remove chips, vermiculite or...
-
Page 23: Appendix 2 Tables
IN S T A LLA TION M A NU A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Installation manual User manual Wood set / Pebble set / Broken glass set Vermiculite tray Glow material Remote control Mains lead Control hatch... - Page 24 * This appliance is suitable for G25.3 with the composition according NTA 8837. ** System efficiency. *** To be used by means of home automation. **** Adjusting screw. *****Categories C12 and C32 only in combination with DRU PV-1 100/60 (PowerVent®).
- Page 25 IN S T A LLA TION M A NU A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25.3...
- Page 26 I N S T A L LA T I ON M A N U A L Table 5: Determining permissibility concentric system with roof terminal G20/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length horiz. pipe length no bends 2 bends...
-
Page 27: Appendix 3 Figures
IN S T A LLA TION M A NU A L Appendix 3 Figures 1964 2215 1900 38C-2290 /3 Metro 200XT 1964 2215 1900 38C-2291 /2 Metro 200XT TUNNEL... - Page 28 230 * min. 50 * min. 280 * min. 50 max. 100 Tot.min. min. 467 Metro 200XT RCH 2x 260cm min. 471 Metro 200XT Tunnel RCH * min. 230 * PowerVent min. 280 max. max. min. 1000 min. 450...
- Page 29 IN S T A LLA TION M A NU A L 38C-1868 d /0...
- Page 30 I N S T A L LA T I ON M A N U A L 0 - 4m 1x90° 38C-744ZW 4x M 38C-2153 /0...
- Page 31 IN S T A LLA TION M A NU A L 38C-2148 /0 38C-2149 /0...
- Page 32 I N S T A L LA T I ON M A N U A L 38C-2295 /0...
- Page 33 IN S T A LLA TION M A NU A L 38p-0638 /0 38P-0432 38p-0639 /0 38P-0434 38p-0022 38P-0608 38P-0609 38P-0028 /1...
- Page 34 I N S T A L LA T I ON M A N U A L 38p-0627 /2 (2x) (2x)
- Page 35 IN S T A LLA TION M A NU A L Tunnel Front Front 16x Tunnel 14x 38c-2297 /0 38p-0628 /1 38p-0629 /1...
- Page 36 I N S T A L LA T I ON M A N U A L 38p-0630 /1 38p-0631 /0...
- Page 37 IN S T A LLA TION M A NU A L 38p-0632 /1...
- Page 38 I N S T A L LA T I ON M A N U A L 38p-0633 /1 38p-0634 /1...
- Page 39 IN S T A LLA TION M A NU A L 38p-0635 /1 38p-0636 /1...
- Page 40 I N S T A L LA T I ON M A N U A L 38p-0637 /1...
- Page 41 IN S T A LLA TION M A NU A L 38C-2294/0 Tunnel Front Front 16x Tunnel 14x 38c-2296 /0 38p-0641 /1...
- Page 42 I N S T A L LA T I ON M A N U A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router PowerVent ® max. 80W 230VAC max. 0,5A / 250VAC / 30VDC 0 - 3V 38P-0790 /0...
- Page 43 IN S T A LLA TION M A NU A L І І І І І І...
- Page 44 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
