Dru Metro 100XT-41 Tunnel RCH Installation Manual

Hide thumbs Also See for Metro 100XT-41 Tunnel RCH:
Table of Contents

Advertisement

Quick Links

Download this manual
Metro 100XT-41 RCH
Metro 100XT-41 Tunnel RCH
G20/G25/G25.3/G30/G31/G150.1
Installation manual
Store this document in a safe place
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Metro 100XT-41 Tunnel RCH and is the answer not in the manual?

Questions and answers

Related Manuals for Dru Metro 100XT-41 Tunnel RCH

Summary of Contents for Dru Metro 100XT-41 Tunnel RCH

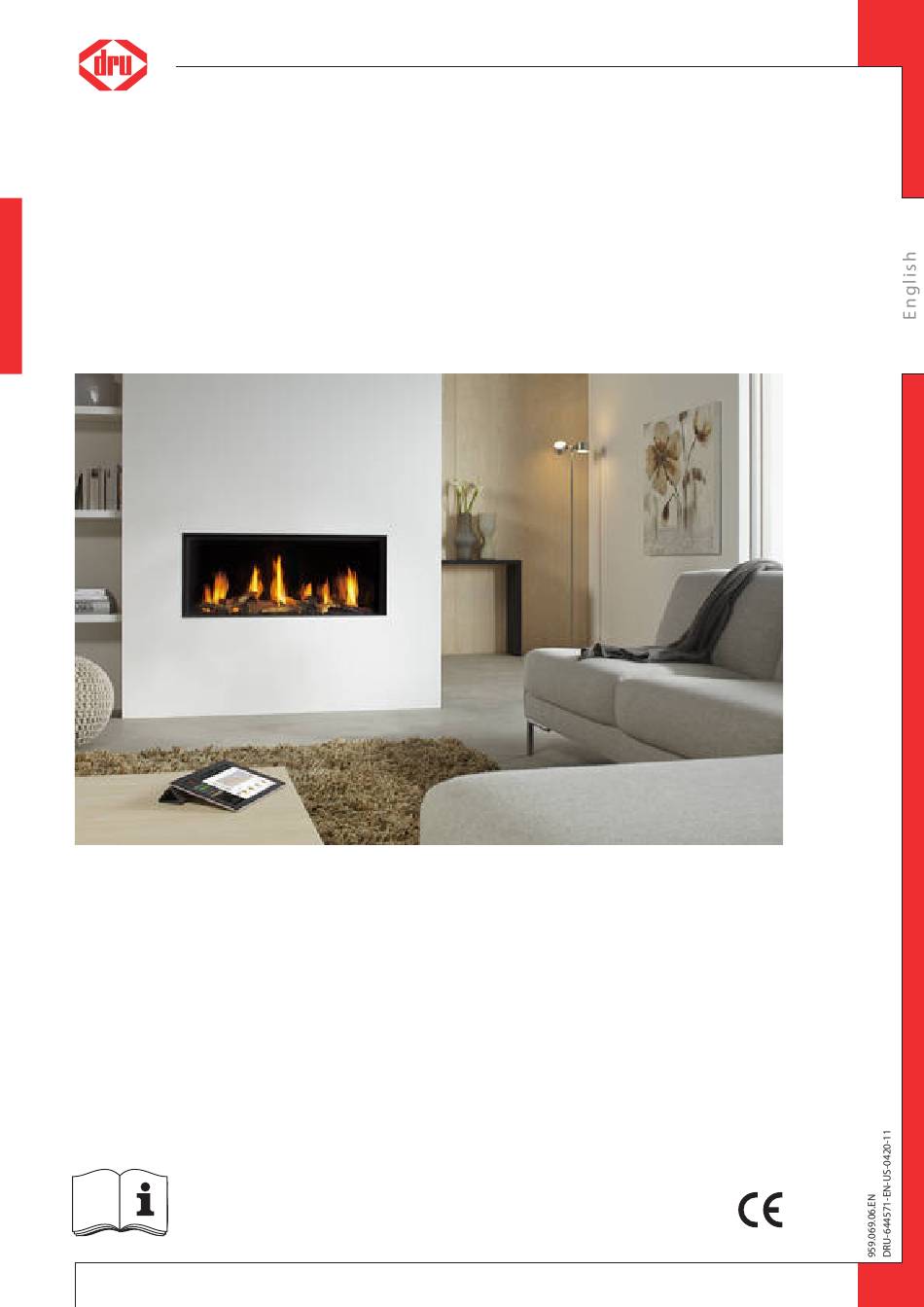

  • Page 1 Metro 100XT-41 RCH Metro 100XT-41 Tunnel RCH G20/G25/G25.3/G30/G31/G150.1 Installation manual Store this document in a safe place...

  • Page 2: Table Of Contents

    I N S T A L LA T I O N M A N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4.

  • Page 3: Introduction

    This declaration loses its validity if changes are made to the appliance without written permission from DRU. The instructions in the manuals must also be observed at all times.

  • Page 4: Safety

    This has to do with the temperature development in the chimney breast. Ø Only use the flue gas discharge / combustion air supply system supplied by DRU. Ø When installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text.

  • Page 5: Principle Of Ignition Cycle

    IN S T A LLA TION M A NU A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The receiver in the appliance will get a signal from the remote control to start the ignition process. The receiver will get the signal to start the ignition process.

  • Page 6: Installation

    Check whether the appliance is suitable for the type of gas and gas pressure used at the location. !Caution 5.1.1 Reconstruction to different type of gas In order to convert this appliance to a different type of gas, please contact DRU's service department and ask for the possibilities. 5.2 Gas connection Place a gas tap in the gas pipe in accordance with the applicable regulations.

  • Page 7: Placing The Appliance

    It is possible to operate one or more lamps (in case of several lamps, a maximum of 0.5A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36).

  • Page 8: Placing The Chimney Breast

    !Tip You should preferably apply the ventilation holes (outgoing) on both sides of the chimney breast. Use the DRU ventilation elements. Check the following issues, before the chimney breast is fully closed: •...

  • Page 9: Concentric System

    5.8 Concentric system 5.8.1 General The appliance is connected to a flue gas discharge / combustion air supply system delivered by DRU, hereafter referred to as the concentric system. The diameter for this connection is indicated in appendix 2, table 2. The passage to the outside can be created with a wall terminal (C11) or a roof terminal (C31).
  • Page 10 I N S T A L LA T I O N M A N U A L The concentric system is constructed from (the flue spigot of) the appliance. If, due to constructional circumstances, the concentric system is placed first, it is possible to connect the appliance by means of a telescopic pipe piece.

  • Page 11: Connection To An Existing Chimney (C91)

    The following requirements apply when connecting to an existing chimney: • Only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery. •...

  • Page 12: Additional Instructions

    I N S T A L LA T I O N M A N U A L 5.10 Additional instructions In case of the Tunnel version of this appliance, it is important to know that the tilting mechanism of the glass pane !Caution is only located on one side of the appliance.

  • Page 13: Placing The Glass Pane

    IN S T A LLA TION M A NU A L 5.11.2 Placing the glass pane The glass pane is fitted by using the above procedure in reverse order (see appendix 3, fig. 7 up to 11). Avoid/remove fingerprints on the glass pane, as they will burn into the glass. !Caution Pay attention to the following when fitting the glass window: Make sure the glass pane properly enters the parked position and then falls in the grooves on the left and right!

  • Page 14: Restrictor Slide

    I N S T A L LA T I O N M A N U A L 5.12 Setting the appliance The appliance has to be set in such a way that it works correctly in combination with the concentric system. For that purpose, a restrictor slide is placed and/or the air inlet guide is removed.

  • Page 15: Placing The Wood, Pebble And Broken Glass Sets

    IN S T A LLA TION M A NU A L 5.13 Placing the wood, pebble and broken glass sets The appliance is supplied with a wood, pebble or broken glass set. The vermiculite that is used to fill the burner is black in case of the wood and broken glass sets. In the case of the pebble set, the vermiculite has a natural colour.

  • Page 16: Control

    IN S TA LLA TION M A N U AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling the receiver.
  • Page 17 6.2.2.2 Control via application Also when operating the appliance via a tablet provided with the DRU Control App (iOS or Android), you will need a communication module. This module can be ordered from DRU. In order to control the fire via an application, proceed as follows: Ø...

  • Page 18: Final Inspection

    I N S T A L LA T I O N M A N U A L 7. Final inspection In order to check whether the appliance is working properly and safely, you must perform the following inspections before the appliance is put into operation. 7.1 Gastightness All connections must be gastight.

  • Page 19: Flame Picture

    IN S T A LLA TION M A NU A L !Tip When checking whether the main burner continuous to burn, it is possible that it switches off after 15 seconds. In that case, this will be caused by the fact that there is no ionization detection and because the glass window has not been placed.

  • Page 20: Parts

    I N S T A L LA T I O N M A N U A L Ø Perform the inspection as described in chapter 7. 8.1 Parts Components that have to be replaced are available at the supplier. Delivery You must explain to the user how to operate the appliance.

  • Page 21: Appendix 1 Malfunctions

    IN S T A LLA TION M A NU A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact Communication cable...
  • Page 22 I N S T A L LA T I ON M A N U A L Error messages Error code Problem Possible cause Remedy ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself F13/F14 ( no ionisation <0.8 µA) Flame loss Ionisation pin short-circuited Remove chips, vermiculite or...

  • Page 23: Appendix 2 Tables

    IN S T A LLA TION M A NU A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Installation manual User manual Wood set / Pebble set / Broken glass set Glow material Restrictor slide Remote control Mains lead Control hatch...
  • Page 24 * This appliance is suitable for G25.3 with the composition according NTA 8837. ** System efficiency. *** To be used by means of home automation. **** Adjusting screw. *****Categories C12 and C32 only in combination with DRU PV-1 100/60 (PowerVent®).
  • Page 25 IN S T A LLA TION M A NU A L Table 3: Line-pressure when using G30 and G31 Country mbar G30/G31 NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE 28-30/37 Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance...
  • Page 26 I N S T A L LA T I ON M A N U A L Table 5: Determining permissibility concentric system with roof terminal G20/G25/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length G30/G31 horiz.

  • Page 27: Appendix 3 Figures

    IN S T A LLA TION M A NU A L Appendix 3 Figures 1061 1247 1000 38C-2081 /0 Metro 100XT RCH41 1061 1247 1000 38C-2082 /0 Metro 100XT RCH41 Tunnel...
  • Page 28 I N S T A L LA T I O N M A N U A L Tot. min. 200cm 38C-2086 /0...
  • Page 29 IN S T A LLA TION M A NU A L 38C-1868 d /0 1x90° 1x90° 38c-744zm 38c-744zl 0 - 3 m 0 - 8m 1x90° 1x90° 38c-744w 38c-744zo 0 - 1m...
  • Page 30 I N S T A L LA T I ON M A N U A L 38C-1897 /0...
  • Page 31 IN S T A LLA TION M A NU A L MAX 1CM 38C-1899 /0 38C-1898 /0 38C-1901 /0 38C-1900 /0...
  • Page 32 I N S T A L LA T I ON M A N U A L 38c-2084 /0 38c-2085 /0...
  • Page 33 IN S T A LLA TION M A NU A L 38P-0432 38P-0502 38P-0504 38P-0503 38p-0022 38p-0023 38P-0028 /1...
  • Page 34 I N S T A L LA T I ON M A N U A L 38p-0494 38p-0496 /1...
  • Page 35 IN S T A LLA TION M A NU A L 38P-0525 /0...
  • Page 36 I N S T A L LA T I ON M A N U A L 38P-0506 /2...
  • Page 37 IN S T A LLA TION M A NU A L 38p-0527 /0 Tunnel 38p-0528 /0 38p-0501...
  • Page 38 I N S T A L LA T I ON M A N U A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router PowerVent ® max. 80W 230VAC max. 0,5A / 250VAC / 30VDC 0 - 3V 38P-0790 /0...
  • Page 39 IN S T A LLA TION M A NU A L     І     І     І     І     І     І...
  • Page 40 I N S T A L LA T I ON M A N U A L Min. 0 mm Min. 0 mm 38C-2311/0 38C-2321/0 Min. 12,5 mm Min. 12,5 mm Min. 60 mm Min. 60 mm Min. 100 mm Min. 100 mm...
  • Page 41 IN S T A LLA TION M A NU A L...
  • Page 42 I N S T A L LA T I ON M A N U A L...
  • Page 43 IN S T A LLA TION M A NU A L...
  • Page 44 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...

This manual is also suitable for:

Metro 100xt-41 rchMetro 100xt eco waveMetro 100xt tunnel eco waveMetro 100xt tunnel 41 rch
