ARIES ROUND HEATER-
Classic 2.0
Classic
SST
POWER
CONTROLLER

Circuit Breaker/Fuse

POWER
SUPPLY
CONTACTOR
UNIT
Circuit Breaker/Fuse
NOTE!
Additional contactor unit needs to be used when
heater is more than 15kW. Please refer to the
control unit manual for maximum power rating.
NS Ni2 NB

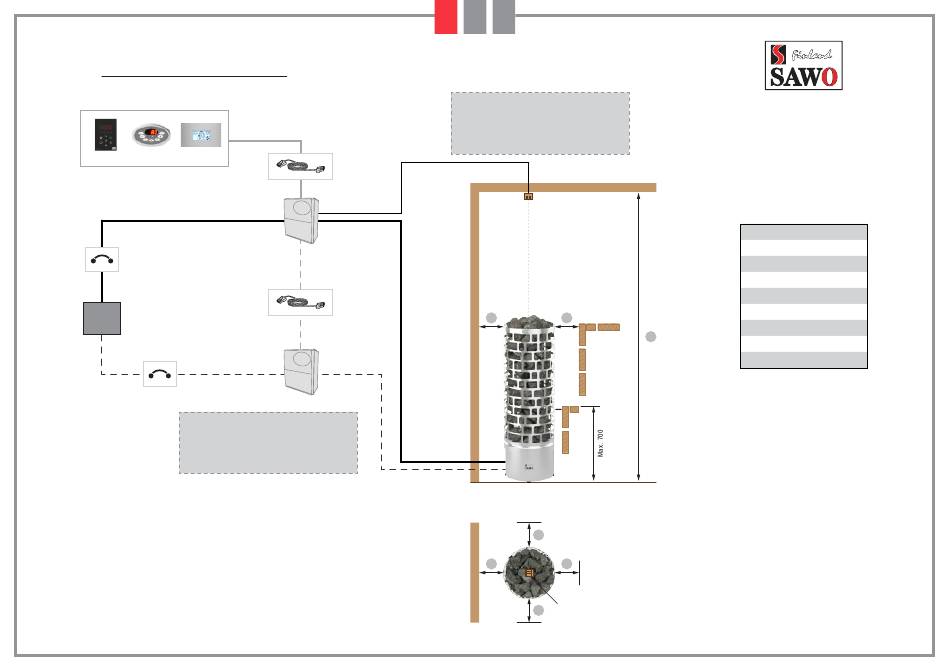

Installation Diagram for Separate Control (NS)

NOTE!
Do not place the sensors too near to air
ventilation (not under 1000mm) or not under
500mm from air ventilation, which is directed
RJ12
away from sensors.
4m
RJ12
1m
Sensor
A
A
B
Min.
45mm
HEATER

FRONT VIEW

A
A
A
Sensor
A

TOP VIEW

Minimum Safety Distances

Heater
A
B
Model
ARI3-45NS
100
1900
ARI3-60NS
100
1900
ARI3-75NS
100
1900
ARI3-90NS
100
1900
ARI6-90NS
100
1900
ARI6-105NS
100
1900
ARI6-120NS
100
2100
ARI6-150NS
100
2100
ARI6-180NS
125
2100
