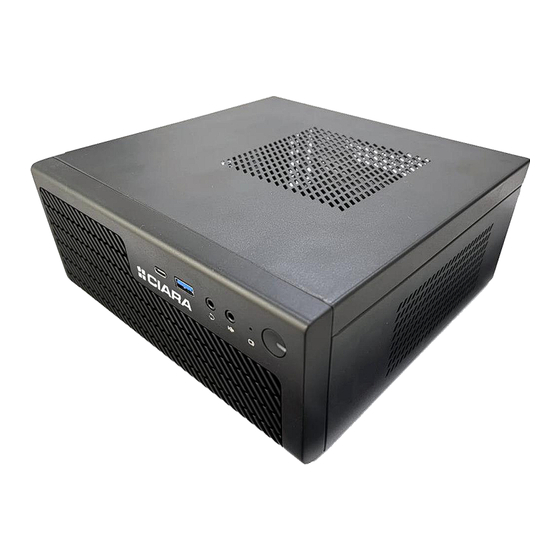

Summary of Contents for Ciara Astro PW64-Q
-
Page 2: Table Of Contents
CIARA Astro PW64-Q disassembly guide ......................3 Astro PW64-Q casing ..........................5 Astro PW64-Q power adapter and power cord ..................5 Astro PW64-Q DC power inverter ......................6 Astro PW64-Q motherboard ........................6 Astro PW64-Q processor ..........................7 Astro PW64-Q memory ..........................8 Astro PW64-Q M.2 SSD drive ........................ -

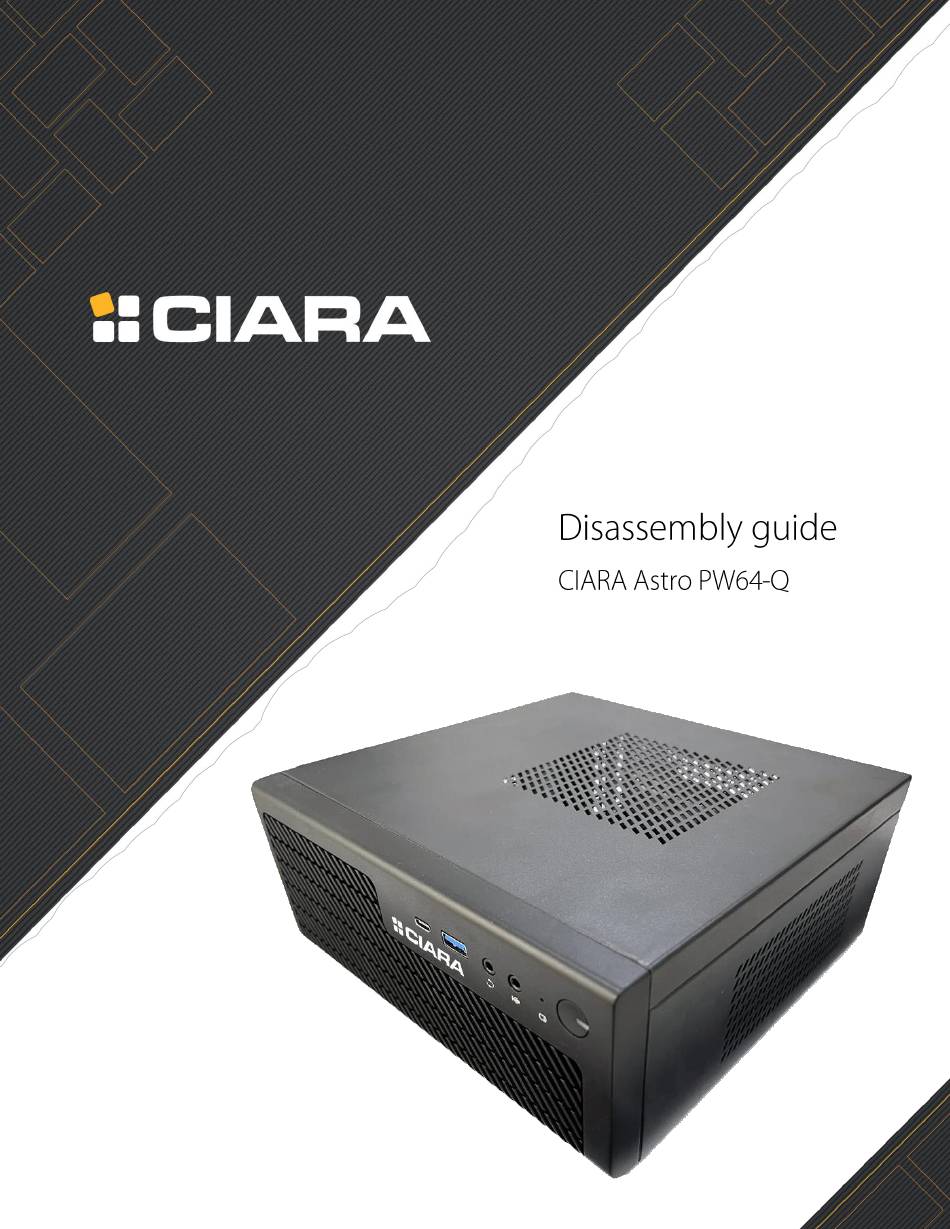

Page 3: Ciara Astro Pw64-Q Disassembly Guide
2- Remove all data (which will remove all user data but it will keep the OS) Almost all parts of the CIARA Astro PW64-Q are recyclable. This guide will show you how to disassemble the following parts and take them to a recycler: 1. - Page 4 Item description Quantity of components PC board that is greater than 10 cm included in the product (Quantity) Casing and FPIO Yes (1) Processor fan and heatsink Motherboard Yes (1) Motherboard battery M.2 and SATA SSD drive Yes (1) Memory Yes (2) Processor Wi-Fi module...
-
Page 5: Astro Pw64-Q Casing
4- To release the front panel, simply lift the two tabs. 5- To remove the front panel, simply flip it forward. 2. Astro PW64-Q power adapter and power cord The adapter cannot be disassembled and is recyclable. The power cord is also recyclable but must be disposed of separately in accordance with the EU WEEE Directive Annex VII. -
Page 6: Astro Pw64-Q Dc Power Inverter
3. Astro PW64-Q DC power inverter The power inverter is plugged into the ATX power socket on the motherboard. To remove, simply pull upwards. 4. Astro PW64-Q motherboard To remove the motherboard, simply unscrew the 4 screws. -
Page 7: Astro Pw64-Q Processor
5. Astro PW64-Q CPU processor fan and heatsink 1- To remove the CPU heatsink and fan, unscrew the 4 nuts on the underside of the motherboard. 2- To separate the fan from the heatsink, simply release the four retaining springs. -
Page 8: Astro Pw64-Q Memory
7. Astro PW64-Q memory 1- Spread the two latches outwards. 2- You will be able to remove the memory strip. 8. Astro PW64-Q M.2 SSD drive 1- Unscrew the retaining screw. 2- Lift the end of the drive. 3- Remove it from M.2 slot. -
Page 9: Astro Pw64-Q Wifi Module
4. Astro PW64-Q WiFi module 1- Disconnect and remove the two antenna cables from the WiFi module, which are deployed inside the case. They are attached by a sticker. 2- Unscrew the retaining screw. 3- Lift the end of the module. -
Page 10: Astro Pw64-Q Exploded View
12. Exploded view Cover CPU fan and M.2 WiFi heatsink M.2 SSD module Motherboard Processor ère Battery Memory AC adapter + power cord Casing DC inverter Front panel...
