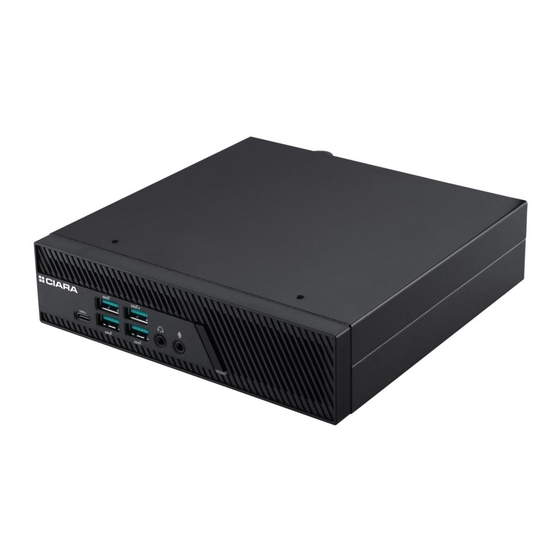

CIARA Astro PB62 disassembly guide ......................3 Astro PB62 Casing ..........................5 Astro PB62 Power adapter and power cord ..................5 Astro PB62 processor fan and heatsink ....................6 Astro PB62 processor ..........................6 Astro PB62 memory ..........................7 Astro PB62 SATA SSD ..........................7 Astro PB62 M.2 SSD .......................... -
Page 3: Ciara Astro Pb62 Disassembly Guide
2- Remove all data (which will remove all user data but it will keep the OS) CIARA Astro PB62 disassembly guide Just about every part of the CIARA Astro PB62 is recyclable. This guide will show you how to disassemble the following various parts in order to bring them to a recycler: 1. - Page 4 Quantity of components PC board that is greater than 10 cm Item description included in the product (Quantity) Casing and FPIO Yes (1) Processor fan Motherboard Yes (1) Motherboard battery SSD drive (SATA or M.2) Yes (1) Memory Yes (2) Processor Wi-Fi module External power supply...
-
Page 5: Astro Pb62 Casing
1- To remove the cover, first remove the screw at the back. 2- Then slide the panel forward and remove it. 2. Astro PB62 Power adapter and power cord The adapter cannot be disassembled and is recyclable. The power cord is also recyclable but must be disposed of separately in accordance with the EU WEEE Directive Annex VII. -
Page 6: Astro Pb62 Processor Fan And Heatsink
3. Astro PB62 processor fan and heatsink 1- Unplug the fan from the appropriate terminal. 2- Unscrew the four screws and remove the fan and heat sink module. 4. Astro PB62 processor 1- Open the socket lever by pushing the lever down and away from the socket, lift the load plate. -
Page 7: Astro Pb62 Memory
You should be able to remove the memory bar. 6. Astro PB62 SATA SSD 1- Unscrew the four screws and remove the plate. 2- Unplug the connector from the SATA port. 3- Unscrew the four screws to remove the SSD from the... -
Page 8: Astro Pb62 M.2 Ssd
7. Astro PB62 M.2 SSD 1- Unscrew the retaining screw, lift the end of the disc and remove it from the slot M.2. 8. Astro PB62 WiFi module 1- Unplug and remove the two antenna cables connected to the Wi-Fi module are deployed inside the box. -
Page 9: Astro Pb62 Motherboard
DEL circuit. 2- Unplug the cable from its header. 3- Unscrew the six screws and remove the motherboard. 10. Astro PB62 motherboard battery 1- Battery is located to the back side of the motherboard. You need to completely remove the motherboard from the chassis to get access to the battery. -
Page 10: Exploded View Diagram
11. Exploded view diagram You will find below two exploded view diagrams, one with tags and one without.
