Ciara KRONOS 540 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide
KRONOS 540 Workstation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KRONOS 540 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ciara KRONOS 540 Series

Summary of Contents for Ciara KRONOS 540 Series

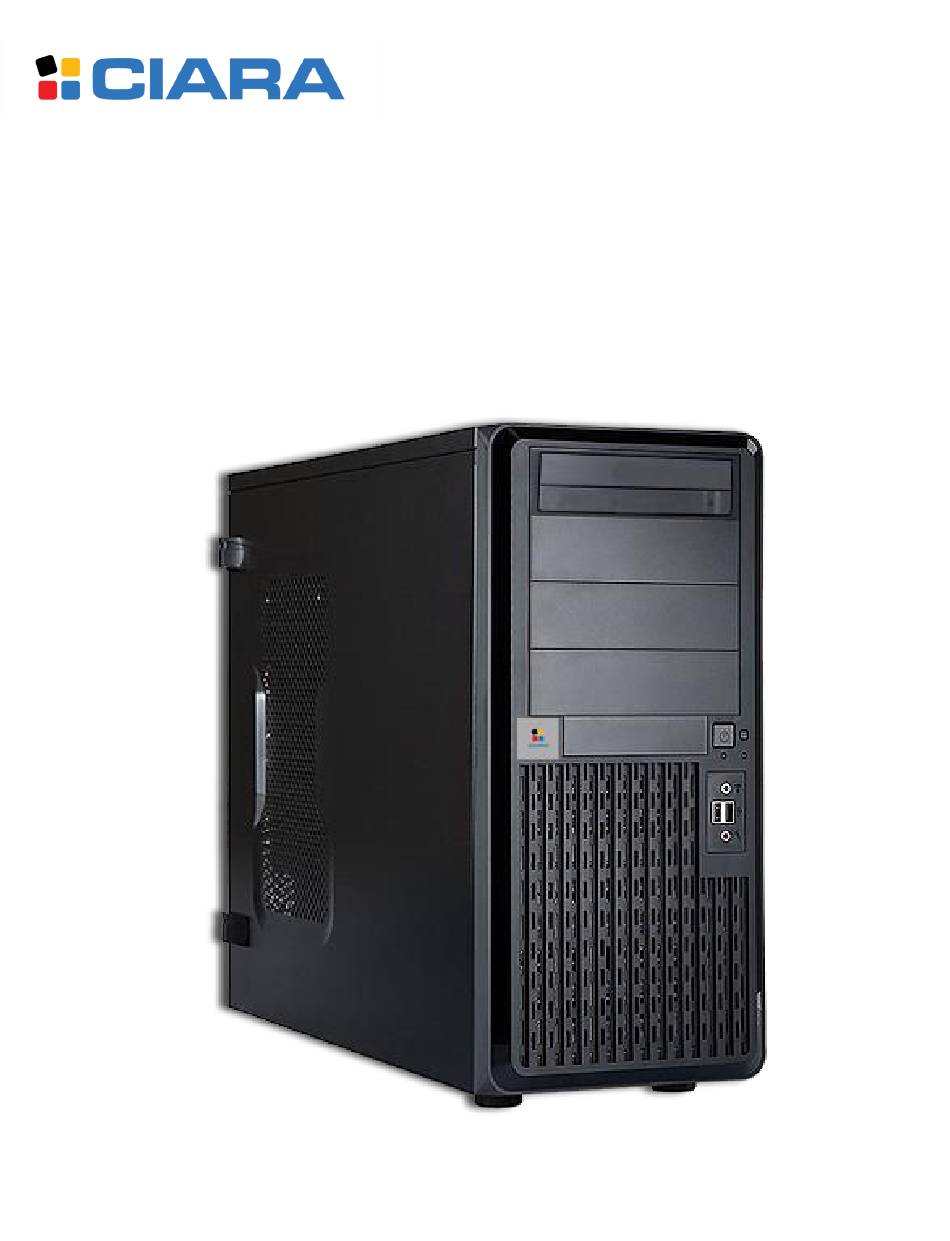

  • Page 1 User Guide KRONOS 540 Workstation...
  • Page 2 CIARA KRONOS 540 Workstation 9300 Trans-Canada Highway Montreal, Quebec H4S 1K5 Tel : (514) 798-8880 Fax : (514) 798-8889 Microsoft, Windows 10, Windows Server 2016 are registered trademarks of Microsoft Corporation Intel and Core are trademarks or registered trademarks of Intel Corporation Asus is a trademark of ASUSTeK COMPUTER INC.

  • Page 3: Table Of Contents

    1.1 Unpacking your workstation ......................6 1.2 Choosing a site for the system ...................... 7 1.3 Peripheric installation ........................8 1.3.1 Recovery from CIARA recovery DVD ....................9 1.3.2 Windows 10 Recovery from Startup Settings ................11 1.3.3 Corrupted BIOS recovery ......................13 1.3.4 System maintenance ........................
  • Page 4 CIARA KRONOS 540 Workstation 4.0 TECHNICAL PRODUCT SPECIFICATION CIARA KRONOS 540 ........45 4.1 Upgrading ..........................47 4.2 Networking ..........................47 4.3 The CIARA KRONOS 540 BIOS ..................... 48 4.3.1 BIOS configuration and installation ..................... 48 4.3.2 BIOS set-up program menu bar ....................48 4.3.3...

  • Page 5: About This Guide

    Glossary. Please remember to fill out the Equipment Log and keep a copy in a safe place. With proper care and operating procedures your CIARA KRONOS 540 will give you many years of service and high performance computing.

  • Page 6: Installing And Upgrading Your System

    CIARA KRONOS 540 Workstation 1.0 Installing and upgrading your system 1.1 Unpacking your workstation Your workstation is packed with ecologic moulded recycled newspaper end caps to keep it in place during transit. The keyboard is on the side of the box, the other accessories are completely on the top.

  • Page 7: Choosing A Site For The System

    CIARA KRONOS 540 Workstation 1.2 Choosing a site for the system All CIARA workstations operate reliably in a typical office or home environment. Choose a location that is readily accessible and meets the following requirements :  Is near a grounded, three pronged power outlet.

  • Page 8: Peripheric Installation

    CIARA KRONOS 540 Workstation 1.3 Peripheral installation - 8 -...
  • Page 9 CIARA KRONOS 540 Workstation - 9 -...

  • Page 10: Recovery From Ciara Recovery Dvd

    CIARA KRONOS 540 Workstation 1.3.1 Recovery from CIARA recovery DVD Before you start this procedure please back up all your important information, the recovery media will erase all data on HDD before installation. Insert the Recovery DVD and restart the system.

  • Page 11: Windows 10 Recovery From Startup Settings

    CIARA KRONOS 540 Workstation 1.3.2 Windows 10 Recovery from Startup Settings With the Windows Startup Settings screen (formerly advanced boot options) you can start Windows in different advanced troubleshooting modes so you can find and fix problems on your PC. In previous versions of Windows, you could get to this screen by pressing F8 before Windows started up.
  • Page 12 CIARA KRONOS 540 Workstation Choose Remove everything Press next Then follow the regular Windows 10 Installation process. - 12 -...

  • Page 13: Corrupted Bios Recovery

    CIARA KRONOS 540 Workstation 1.3.3 Corrupted BIOS recovery The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using the motherboard support DVD or a USB flash drive that contains the updated BIOS file.

  • Page 14: Using The Ciara Kronos 540

    1.3.5.1 Introduction The CIARA KRONOS 540 is a powerful workstation that has the ability to run a variety of operating systems. Unless you have specified something different, your system comes configured with a Windows operating system pre-loaded onto the hard drive. Each operating system comes with its own user manuals, and you should refer to these for information specific to your system.

  • Page 15: Troubleshooting Your System After First Install

    CIARA KRONOS 540 Workstation 1.4 Troubleshooting your system after first install 1.4.1 Helpful hints If you encounter some minor problems with the workstation, monitor, or software, see the following list of general suggestions before taking further action:  Check that the workstation and monitor are plugged into a working electrical outlet.

  • Page 16: Solving General Problems

    You should be able to easily resolve the general problems described in this section. If a problem persists and you are unable to resolve it, or if you feel uncomfortable about performing the operation, contact CIARA at 1-877-242-7272 and ask for the Customer Service department.

  • Page 17: Solving Power Supply Problems

    Solving power supply problems Problem Cause Solution Power supply shuts down Power supply will not turn Contact CIARA for the replacement of the power supply. intermittently. on because of internal power supply fault. Workstation powered off Processor thermal protection Ensure that the workstation air vents are not blocked and...

  • Page 18: Solving Hard Drive Problems

    CIARA KRONOS 540 Workstation 1.5.2 Solving hard drive problems Solving hard drive problems Problem Cause Solution Hard drive error occurs. Hard disk has bad sectors or has Use a utility to locate and block usage of bad failed. sectors. If necessary, reformat the hard disk.

  • Page 19: Solving Display Problems

    1. Reseat the graphics card. Power on the second pause, and the system. workstation beeps six times. 2. If the problem persists, contact CIARA since the problem may necessitate the replacement of the graphics card or the motherboard. Dim characters.

  • Page 20: Solving Audio Problems

    CIARA KRONOS 540 Workstation 1.5.4 Solving audio problems Solving audio problems Problem Cause Solution Sound does not come out of the Software volume control is Double-click the Speaker icon on the taskbar, speaker or headphones. turned down. and then make sure that Mute is not selected and use the volume slider to adjust the volume.

  • Page 21: Solving Keyboard And Mouse Problems

    Keyboard connector is not Connect keyboard correctly. recognize keyboard commands properly connected. and typing. Keyboard needs repairs. Contact CIARA so that we may proceed to repairs. Workstation is in Last State Press the power button to resume from Last mode. State mode.

  • Page 22: Solving Hardware Installation Problems

    3. If a faulty module is found, Contact CIARA for the replacement of the module. 4. 4. If the problem persists, Contact CIARA for this may necessitate the replacement of the motherboard.

  • Page 23: Solving Memory Problems

    3. If a faulty module is found, Contact CIARA for the replacement of the module. 4. 4. If the problem persists, Contact CIARA for this may necessitate the replacement of the motherboard.

  • Page 24: Solving Optical Drive Problems

    Movie will not play in the DVD Decoder software is not installed. Install decoder software. drive. Note : All CIARA systems equipped with a DVD drive at plant assembly include the necessary Decoder software. Cannot eject disc from tray. Disc not properly seated in the Turn off the workstation and insert a thin metal drive.

  • Page 25: Component Installation Guide

    CIARA KRONOS 540 Workstation 1.6 Component installation guide 1.6.1 Precautions against static electricity ATTENTION: Components such as processors and memory may be permanently damaged by shocks arising from static electricity. It is hence important to wear antistatic, smock, gloves, shoes and ankle during the installation process.

  • Page 26: Opening And Accessing The Chassis

    CIARA KRONOS 540 Workstation 1.6.2 Opening and accessing the chassis 1.6.2.1 Opening and accessing the KRONOS chassis To open the side panel, lift the two latches. Pull the panel backward and remove it. The side panel is then removed from the chassis allowing for modular installation and chassis preparations.

  • Page 27: Insertion Of The Processor

    CIARA KRONOS 540 Workstation 1.6.3 Insertion of the processor ATTENTION : Components such as the processor may be permanently damaged by shocks arising from static electricity. It is hence important to wear an antistatic bracelet during the installation process. 1. Please note the order in opening/ closing the double latch. Follow the instructions printed on the metal sealing hatch or the illustrations shown below in this manual.
  • Page 28 CIARA KRONOS 540 Workstation - 28 -...
  • Page 29 CIARA KRONOS 540 Workstation 2. Apply the Thermal Interface Paste to the CPU heatsink and CPU before you install the heatsink and fan, if necessary. 3. Install the CPU heatsink and fan assembly - 29 -...

  • Page 30: Installation Of The Memory Modules

    Access Memory (DDR4 SDRAM) is packaged only in 288-pin Dual In-Line Memory Modules (DIMMs). Your CIARA KRONOS 540 uses only DIMM memory modules. Each DIMM module can have a capacity of 4 GB, 8 GB or 16 GB. The minimum system capacity is 4 GB and the maximum system capacity is 128 GB for 6-core processor and 64 GB for 4-core processor.
  • Page 31 CIARA KRONOS 540 Workstation The CIARA KRONOS 540 workstation supports the following types of memory configurations : • Quad channel (Interleaved) mode. This mode offers the highest throughput for real world applications. Quad channel mode is enabled when the installed memory capacities of the four DIMM channels are equal. Technology and device width can vary from one channel to the other but the installed memory capacity for each channel must be equal.
  • Page 32 CIARA KRONOS 540 Workstation (6-core or above processor) -You can install one, two, four, six or eight DIMM of DDR4 memory. (4-core processor) -You can install one, two or four DIMM of DDR4 memory. - 32 -...
  • Page 33 CIARA KRONOS 540 Workstation 1. To install a DIMM, first release the locking tab. 2. Slide the module into the socket at a 90-degree angle to the main board. Align the module so that the pin 1 marking on the module corresponds to the DIMM socket pin 1 marking.

  • Page 34: Installation Of The Optical Drive Module

    CIARA KRONOS 540 Workstation 1.6.5 Installation of the optical drive module The optical drive is removed or inserted into the front end of the chassis. To remove the drive, pull the locking tabs. To secure the drive, push down the locking tabs.

  • Page 35: Installation Of The Hard Drive

    CIARA KRONOS 540 Workstation 1.6.6 Installation of the hard drive First pull out and remove the disk holder from the drive bay. Install the drive the disk holder with the included screws. Reinsert the disk holder in the appropriate bay.

  • Page 36: Chassis Characteristics

    CIARA KRONOS 540 Workstation 1.6.7 Chassis Characteristics Mid-Tower Specifications Motherboard Type : ATX (305 x 244 mm) ( 12"x 9.6") Drive Bay Space : Ext. 4 x 5.25" and 1 x 3.5" Int. 5 x 3.5" or 5 x 2.5"...

  • Page 37: Certification And Declaration

    You may make copies of this Windows software solely for your own back-up purposes. All CIARA KRONOS 540 series workstations are certified by the TÜV SÜD Canada inc., and meet or exceed the Class B limitations for Radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada.

  • Page 38: Declaration Of Conformity

    CIARA KRONOS 540 Workstation 2.2 Declaration of conformity We, Manufacturer/Importer CIARA 9300 Trans-Canada Highway Montreal, Quebec H4S 1K5 Tel : (514) 798-8880 Fax : (514) 798-8889 Declare that the product Workstation System CIARA KRONOS 540 Is in conformity with the ICES-003 Canadian Standard and Part 15 of the FCC Rules.

  • Page 39: Fcc Information To User

    Warning Changes or modifications not expressly approved by CIARA could void the user’s authority to operate the equipment. This equipment is equipped with a shielded 3-wire power cord and plug. Use this power cord in conjunction with a properly grounded electrical outlet to avoid electrical shock and to reduce radio frequency interference that may emanate from the power cord.

  • Page 40: Energy Star

     The CIARA KRONOS 540 workstations contribute significant energy savings nationwide.  The CIARA KRONOS 540 workstations deliver the features and performance demanded by consumers, in addition to increased energy efficiency.  If the CIARA KRONOS 540 workstations cost more than a conventional, less-efficient workstation, purchasers will recover their investment in increased energy efficiency through utility bill savings, within a reasonable period of time.

  • Page 41: One Year Limited Warranty

    CIARA representative within one month of receipt of your system. If you have purchased a different type of warranty, or an extension to the standard warranty, you will need to provide the CIARA Service Contract Number to the Customer Support representative when placing a call for service or support.

  • Page 42: Procedures To Be Followed For Service During The Warranty Period

    Make a back-up copy of all of the files on your hard disk before returning your workstation for service. CIARA is not responsible for the loss or damage of any data on the returned system. In some cases, hard disks may need to reformatted or replaced. It is the responsibility of the user to ensure data is backed up prior to shipment to CIARA.

  • Page 43: Limited Warranty

    User’s Guide which accompanies the Product or other misuse, abuse or negligence to the Product ; (ii) by the use of parts not manufactured or sold by CIARA ; (iii) by modification of the Product ; (iv) as a result of service by anyone other than CIARA or an Authorized CIARA Service Provider ;...

  • Page 44: Documenting Your Workstation

    Please keep your equipment log up to date and include a copy of it whenever your equipment is returned to CIARA for servicing. The equipment log is also helpful if your CIARA workstation is lost, stolen, or damaged. It can serve as your record of when the equipment was placed in service, and the dates of all equipment upgrades and configuration changes.

  • Page 45: Technical Product Specification Ciara Kronos 540

    LGA2066 package. While supplied as standard in a mini tower case, CIARA can supply the CIARA KRONOS 540 in a full range of cases that include smaller desktop models as well as larger tower models that are suitable for applications that require a greater expansion capacity.
  • Page 46 CIARA KRONOS 540 Workstation Processor : Intel® 7th generation Core™ i5 X-series, Core™ i7 X-series, Core™ i9 X-series or Core™ i9 Extreme edition all in the LGA2066 package. ® View all compatible Intel processors https://www.asus.com/us/Motherboards/WS-X299-PRO- SE/HelpDesk_CPU/ Bus : 44-lane CPU : 4 PCIe 3.0 x16 (2 x16 mode), (1 x8 mode), (1 x4 mode) ; 1 PCIe 3.0 x4 (x4 mode) ;...

  • Page 47: Upgrading

    4.1 Upgrading As the purchaser of a powerful state of the art CIARA KRONOS 540 workstation you have no doubt decided on the features and upgrade capabilities that you might wish to add to your workstation. There are many exciting possibilities for upgrading your CIARA KRONOS 540.

  • Page 48: The Ciara Kronos 540 Bios

    The purpose of this section is to describe the procedures to set up the BIOS configuration options of your CIARA KRONOS 540 workstation. All this work is done for you at the CIARA factory enabling the system to be ready to start on Power on. However, we are describing this procedure as a means of transparency.

  • Page 49: Bios Menu Screen

    CIARA KRONOS 540 Workstation 4.3.3 BIOS menu screen The BIOS Setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from Setup Mode in Boot menu or by pressing the <F7> hotkey. 4.3.3.1 EZ Mode...
  • Page 50 CIARA KRONOS 540 Workstation 4.3.3.2 Advanced Mode The Advanced Mode provides advanced options for experienced end-users to configure the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the following sections for the detailed configurations.

  • Page 51: Pci Auto Configuration

    CIARA KRONOS 540 Workstation 4.3.4 PCI auto configuration The BIOS can automatically configure PCI devices. PCI devices may be onboard or add-in cards. Auto configuration lets a user insert or remove PCI cards without having to configure the system. When a user turns on the system after adding a PCI card, the BIOS automatically configures interrupts, the I/O space, and other system resources.

  • Page 52: Bios Recovery

    CIARA KRONOS 540 Workstation 4.3.8 BIOS recovery It is unlikely that anything will interrupt a BIOS update; however, if an interruption occurs, the BIOS could be damaged. The following table lists the drives and media types that can and cannot be used for BIOS recovery. The BIOS recovery media does not need to be made bootable.

  • Page 53: Adjusting Boot Speed

    CIARA KRONOS 540 Workstation 4.3.10 Adjusting boot speed This factor affects system boot speed • Selecting and configuring peripherals properly 4.3.10.1 Peripheral selection and configuration The following techniques help improve system boot speed:  Select an optical drive with a fast initialization rate. This rate can influence POST execution time.

  • Page 54: Bios Security Features

    CIARA KRONOS 540 Workstation 4.3.11 BIOS security features The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the workstation. A supervisor password and a user password can be set for the BIOS Setup program and for booting the workstation, with the following restrictions ...

  • Page 55: Motherboard Configuration & Layout - Kronos 540 Main Board

    CIARA KRONOS 540 Workstation 4.4 Motherboard configuration & layout – KRONOS 540 main board Figure 4.4 Major board components - 55 -...
  • Page 56 CIARA KRONOS 540 Workstation - 56 -...

  • Page 57: Back Panel Connectors

    CIARA KRONOS 540 Workstation 4.4.1 Back panel connectors - 57 -...

  • Page 58: The Pci Express And Pci Bus

    CIARA KRONOS 540 Workstation - 58 -...
  • Page 59 CIARA KRONOS 540 Workstation The PCI Express bus The board has the following add-in card connectors : - 59 -...
  • Page 60 CIARA KRONOS 540 Workstation - 60 -...

  • Page 61: Storage

    2242/2260/2280 (SATA & PCIE mode) and one U.2 connector. - Ready for Intel® Optane™ Memory 4.6.1.1 Serial ATA RAID The CIARA KRONOS 540 supports the following RAID (Redundant Array of Independent Drives) levels : • RAID 0 - data striping • RAID 1 - data mirroring •...

  • Page 62: Optical Drives

    4.6.2 Optical drives The CIARA KRONOS 540 may be supplied with a SATA DVD drive. The DVD drive is a half-height 5-¼ inch wide storage device, capable of holding 4.7 to 8.5 Gbytes of data. The system may be equipped with either a DVD-ROM drive, a DVD writer, a Blu-ray drive or Blu- ray writer.

  • Page 63: Graphics Subsystem

    4.8.1 PCI Express 3.0 x16 256 bits graphics card The CIARA KRONOS 540 workstation is equipped with a GeForce GTX1070 graphics card with 8 GB of DDR5 video memory, a dual link DVI port, three DisplayPort 1.4 ports and one HDMI 2.0 port. It can support up to four concurrent screens (nVIDIA 3D Surround).

  • Page 64: Audio Subsystem

    CIARA KRONOS 540 Workstation 4.9 Audio subsystem The CIARA KRONOS 540 workstation supports Intel High Definition Audio through a Realtek® S1220A audio codec. The Realtek® S1220A-based audio subsystem provides the following features :  Power pre-regulator reduces power input noise to ensure consistent performance ...

  • Page 65: Lan Subsystem

    CIARA KRONOS 540 Workstation 4.11 LAN subsystem The LAN subsystem consists of the following : • Two Intel I210-AT Gigabit Ethernet controllers (10/100/1000 Mbits/s) • Two RJ-45 LAN connector with integrated status LEDs 4.11.1 Intel® I210-AT 1 Gigabit Ethernet controllers The Intel I210-AT 1 Gigabit Ethernet controllers support the following features : •...

  • Page 66: Trusted Platform Module (Tpm)

    If the battery wears out, your system will no longer retain BIOS information when turned off. For example, you will get a message stating that the time and date are invalid. If this happens, you should replace the battery, or call your CIARA service representative.

  • Page 67: Installing An Upgrade Cpu

    All CIARA KRONOS 540 models may be enhanced by the installation of a higher performing CPU. Since this upgrade necessitates a lot of care and attention, it should be carried out by a CIARA authorized service centre. Please take a note that the CIARA KRONOS 540 models use exclusively LGA2066 processor technologies and are not compatible with other types of processors.

  • Page 68: Installing An Upgrade Flash Bios

    Before any new BIOS is programmed into the system, be very careful to ensure that the BIOS is intended for use with your specific system board. If not, you may completely disable your system, and require CIARA service assistance to restore the system to working order.

  • Page 69: Glossary

    CIARA KRONOS 540 Workstation GLOSSARY 32-Bit -- In computer architecture, 32-bit integers, memory addresses, or other data units are those that are at most 32 bits (4 octets) wide. Also, 32-bit CPU and ALU architectures are those that are based on registers, address buses, or data buses of that size. 32-bit is also a term given to a generation of computers in which 32-bit processors were the norm.
  • Page 70 CIARA KRONOS 540 Workstation Colour display -- A video display capable of displaying colours based on the RGB (Red, Green, and Blue) colour-mixing scheme. Configuration -- The way in which a computer and peripheral equipment (such as printers and display monitors) are interconnected and programmed to operate as a system.
  • Page 71 CIARA KRONOS 540 Workstation Jumper -- On a printed circuit board, a patch connector, wire, or cable used to establish a circuit. LCD -- A liquid crystal display (LCD) is a thin, flat electronic visual display that uses the light modulating properties of liquid crystals (LCs).
  • Page 72 CIARA KRONOS 540 Workstation 1980s in data centers and workstations, and it uses the standard SCSI command set. SAS offers backwards-compatibility with second- generation SATA drives. SATA 3 Gb/s drives may be connected to SAS backplanes, but SAS drives may not be connected to SATA backplanes.
  • Page 73 CIARA KRONOS 540 Workstation NOTES : - 73 -...
