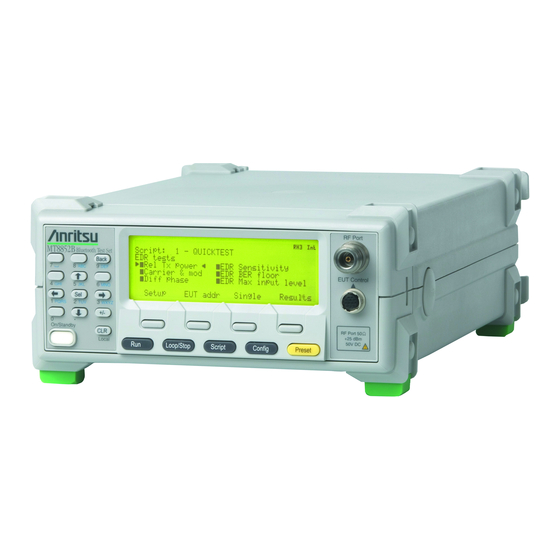

Operation Manual
CombiTest
MT8852B Plug-In
DUT Control API Reference
Anritsu Company
P/N: 13000-00368
490 Jarvis Drive
Revision: A
Morgan Hill, CA 95037-2809
Created: August 2011
USA
Copyright 2011 Anritsu Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT8852B and is the answer not in the manual?

Questions and answers

Related Manuals for Anritsu MT8852B

Summary of Contents for Anritsu MT8852B

  • Page 1 Operation Manual CombiTest MT8852B Plug-In DUT Control API Reference Anritsu Company P/N: 13000-00368 490 Jarvis Drive Revision: A Morgan Hill, CA 95037-2809 Created: August 2011 Copyright 2011 Anritsu Company...
  • Page 2 LIMITATION OF WARRANTY The foregoing warranty does not apply to Anritsu connectors that have failed due to normal wear. Also, the warranty does not apply to defects resulting from improper or inadequate maintenance by the Buyer, unauthorized modification or misuse, or operation outside of the environmental specifications of the product.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1—Introduction Chapter 2—API Reference General ........... . . 2-1 DLL_Info .
  • Page 4 Table of Contents (Continued) Contents-2 PN: 13000-00368 Rev. A CombiTest (API Reference)

  • Page 5: Combitest (Api Reference) Pn: 13000-00368 Rev. A

    Chapter 1 — Introduction CombiTest with the MT8852B Plug-in facilitates production line testing of Bluetooth devices using the MT8852B Bluetooth test set. During calibration sequences the MT8852B Plug-in controls the DUT via an interface supported through the DUT Control DLL.
  • Page 6 Introduction PN: 13000-00368 Rev. A CombiTest (API Reference)

  • Page 7: Chapter 2-Api Reference

    Chapter 2 — API Reference General DLL_Info Description: The DLL_Info function is used to retrieve information about the DUT Control DLL. Prototype: Bool DLL_Info(char* Description, char* Part Number, char* Version Number); Parameters: Description: [out] pointer to the description string Part Number: [out] pointer to the part number string Version Number: [out] pointer to the version number string Return values: If the function succeeds the return value is true.

  • Page 8: Dut_Bt_Open

    General API Reference DUT_BT_Open Description: The DUT_BT_Open function opens the control interface, performing the required initialisation for Bluetooth testing. Prototype: Bool DUT_BT_Open(void); Parameters: None Return values: If the function succeeds the return value is true. If the function fails the return value is false. Remarks: This is the first function to be called before attempting any DUT control for Bluetooth.

  • Page 9: Calibration Configuration

    API Reference Calibration Configuration Calibration Configuration DUT_BT_Cal_Start Description: This function starts the overall calibration process for Bluetooth. Prototype: Bool DUT_BT_Cal_Start (void); Parameters: None Return values: If the function succeeds the return value is true. If the function fails the return value is false. Remarks: None DUT_BT_Cal_Stop...

  • Page 10: Dut_Bt_Get_Custom_Cal_Config

    Calibration Configuration API Reference DUT_BT_Get_Custom_Cal_Config Description: This function returns the custom calibration configuration used to configure the MT8852B to take the required measurements. Prototype: Bool DUT_BT_Get_Custom_Cal_Config(unsigned long* calType, int* channel, unsigned long* modulationScheme, float *gateWidth); Parameters: calType: [out] Calibration type where: 0 = No Measurement (e.g.

  • Page 11: Chapter 3-Bluetooth Calibration Sequence

    Chapter 3 — Bluetooth Calibration Sequence Overview The following flow diagram illustrates the basic Bluetooth calibration sequence that is initiated and controlled by the MT8852B plug-in. Figure 3-1. Calibration API Call Sequencing CombiTest (API Reference) PN: 13000-00368 Rev. A...

  • Page 12: Calibration Sequence Details

    If the status returned indicates that an error has occurred, the MT8852B plug-in will abort the calibration procedure.
  • Page 13 When the process completes or an error occurs, the MT8852B plug-in will invoke the API function DUT_BT_Get_Custom_Cal_Status once more to obtain the final calibration status before the vendor specific calibration task is deemed to have completed.
  • Page 14 Calibration Sequence Details Bluetooth Calibration Sequence PN: 13000-00368 Rev. A CombiTest (API Reference)
  • Page 15 Telephone: +55-11-3283-2511 Fax: +1-613-591-1006 Fax: +61-3-9558--8255 Fax: +55-11-3288-6940 CHINA FINLAND FRANCE ANRITSU BEIJING SERVICE CENTER Teknobulevardi 3-5, 9, Avenue du Québec Z.A. de Courtabœuf Room 1515, Beijing Fortune Building, FI-01530 VANTAA, Finland 91951 Les Ulis Cedex, No. 5, Dong-San-Huan Bei Road,...
