Page: 8
SmartPad LCD™
SYSTEM OVERVIEW
The SmartPad LCD is a complete control system in a single box – meaning, no extra controller box is
necessary. Simply connecting a power supply and then connecting the SmartPad LCD outputs to any standard
Xantech IR bus, makes a complete IR Repeater System. By adding the optional RS422232 converter, you can
literally control almost any Audio Video or Home Automation component. The SmartPad LCD or SPLCD is also
directly compatible with the MRC-88 Whole-house Audio Video Entertainment System.
SmartPad LCD is easily programmed with Xantech's Universal Dragon Drop-IR Software via a RS232 or USB
Port (Programming cables and software included). Universal Dragon is used to graphically design your screens
and assign IR and/or RS232 Macros. An internal IR Library is also included for ease of programming.
The SmartPad LCD can be wired into numerous simultaneous application configurations such as outlined below
in Figure 1.

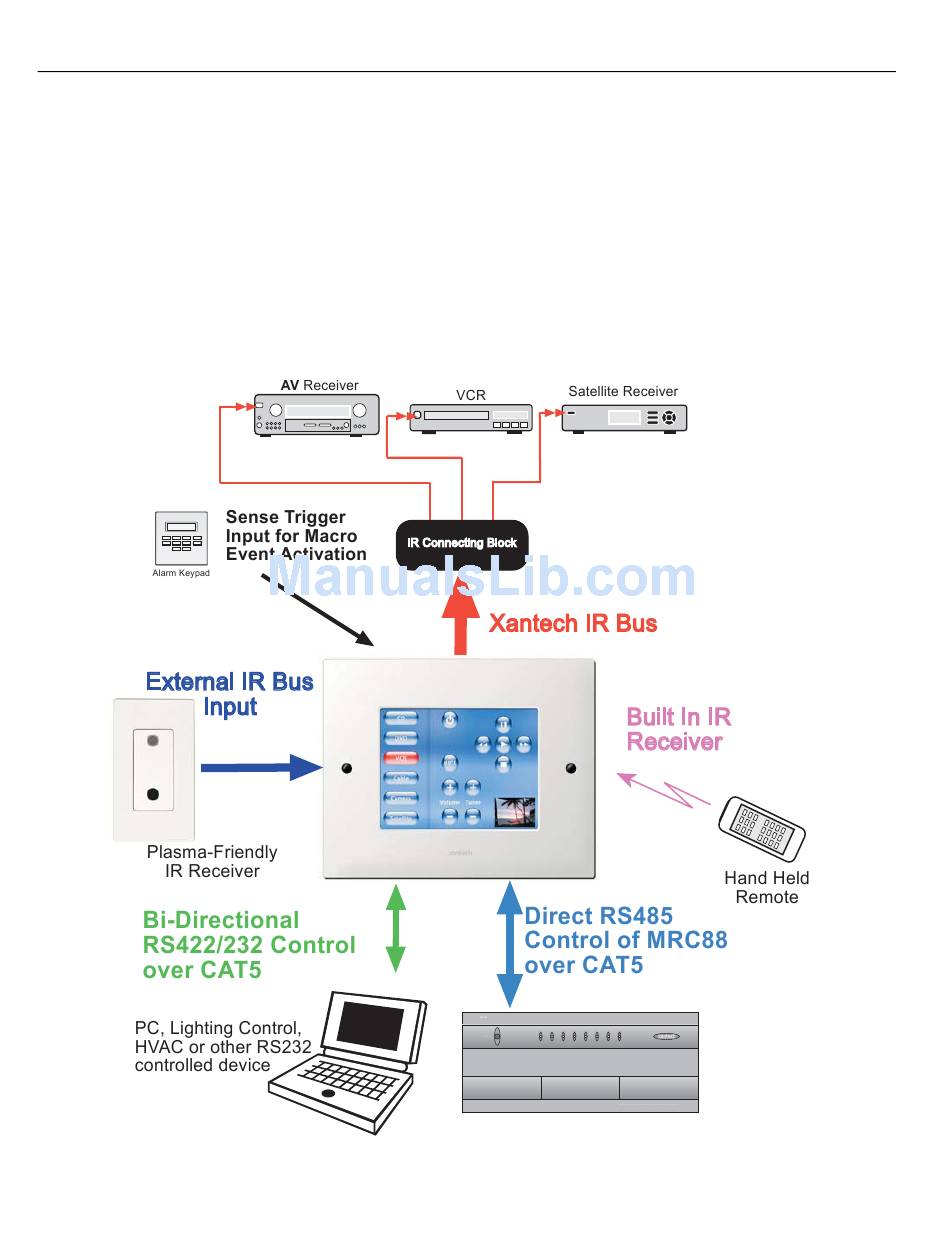

Figure 1 - System Block Diagram
© 2008 Xantech Corporation
