INSERTING ADDITIONAL PAGES FOR A SINGLE SOURCE

Additional blank pages can be inserted as needed, for a given source. After a blank page is inserted, it may be
populated with Function Buttons, as in the previous section. This may be useful when a page becomes full of
commands or for easier operation (i.e. placing the Motion Control Buttons and Menu Navigation Buttons of a
DVD Player on separate pages).
A Blank Page is always inserted AFTER the currently selected page.

Insert a New Page

1. Select the Source Button of the desired page (if already on the page to be inserted from, go to Step 2).
2. Drag a blank Function Button onto the existing page to be used as a Go To Page Button. This button will
be used to navigate to the next page.
3. Right-click on the button from Step 2 and select Insert New Page from the pop-up. (Figure 25) While
programming in Universal Dragon, once configured as a 'Go To' Button, the button can double clicked to
navigate as configured, i.e. Page Down.
4. A new page is now inserted and may be filled with additional Function Button GTL's.
5. Additional pages can be inserted in the same manner as needed. If no additional pages are required for the
selected source, place another blank Function Button GTL on the current page. This button will be used
to return (navigate) to the previous page.

Return to Previous Page

6. Drag a Function Button GTL onto the existing page to be used as a Go To Page Button. This button will
be used to return (navigate) to the previous page.
7. Right-click on the button from Step 6 and select Insert Go To Previous Page from the pop-up. (Figure
26) While programming in Universal Dragon, once configured as a 'Go To' Button, the button can double
clicked to navigate as configured, i.e. Page Up.
NOTE: This button can also have a macro associated with it to perform a function on the actual Source
Component as well as taking the user to the Next or Previous Page. For example, a MENU button can be
used to call up a menu on the DVD itself and also bring up a page of MENU Cursor buttons on the SPLCD
panel for the User to use to navigate through the DVD Menu.

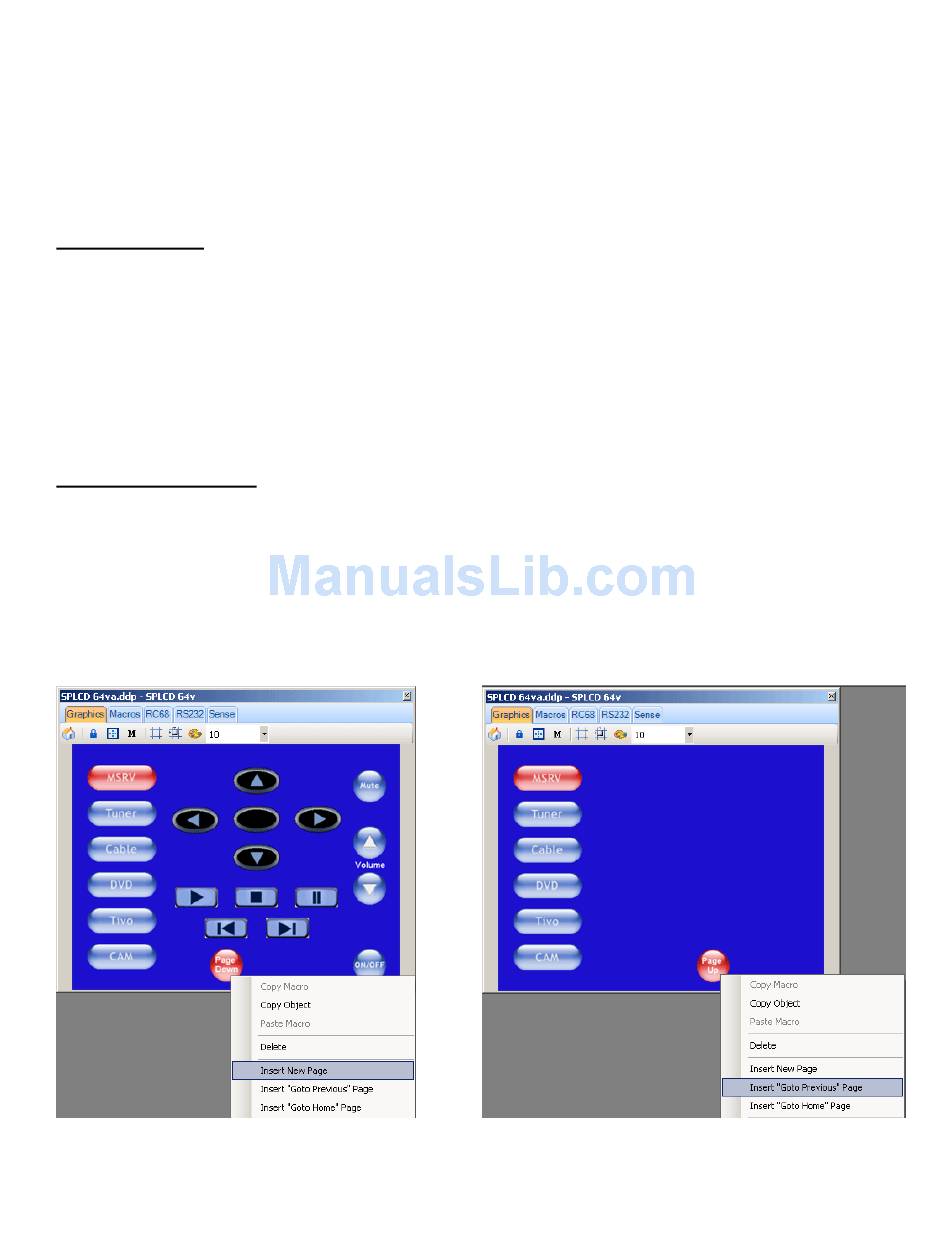

Figure 25 – Insert New Page
