Section 2: Installation & Connections

INSTALLATION

BACK BOX MOUNTING INSTRUCTIONS

Each of the four models of SPLCD Touchpanel is mounted in a corresponding junction box (included). No
screws are necessary for affixing this junction box into drywall, lath & plaster, button board or other surfaces
covering a hollow wall. The wall needs to be at least 3.5" (8.9cm) deep, (inside dimension).
A Mounting Wall-Cutout Template is included for precise hole dimensions. There are two models, one for each
display size (3.9" and 6.4").
NOTE: The mounting hole size is critical as there is a +0.00" inch tolerance for this cutout. It is imperative that
the provided mounting template be used to assure proper hole size. Check the table below to be sure you are
using the proper Mounting Wall-Cutout Template.
SPLCD Model #
SPLCD39G
SPLCD64G
SPLCD64V
To properly mount the SPLCD, please follow these instructions carefully:
1. Place the Mounting Template on the wall surface as shown in Figure 4 above.
2. Make sure the Template is level and gently secure to the wall using a hammer.
3. Using a hole saw or other cutting tool, carefully cut along the inner guide lines of the Mounting Template
as shown in Figure 5 below.
Mounting Template Part No.
08187158
08187157
08187157

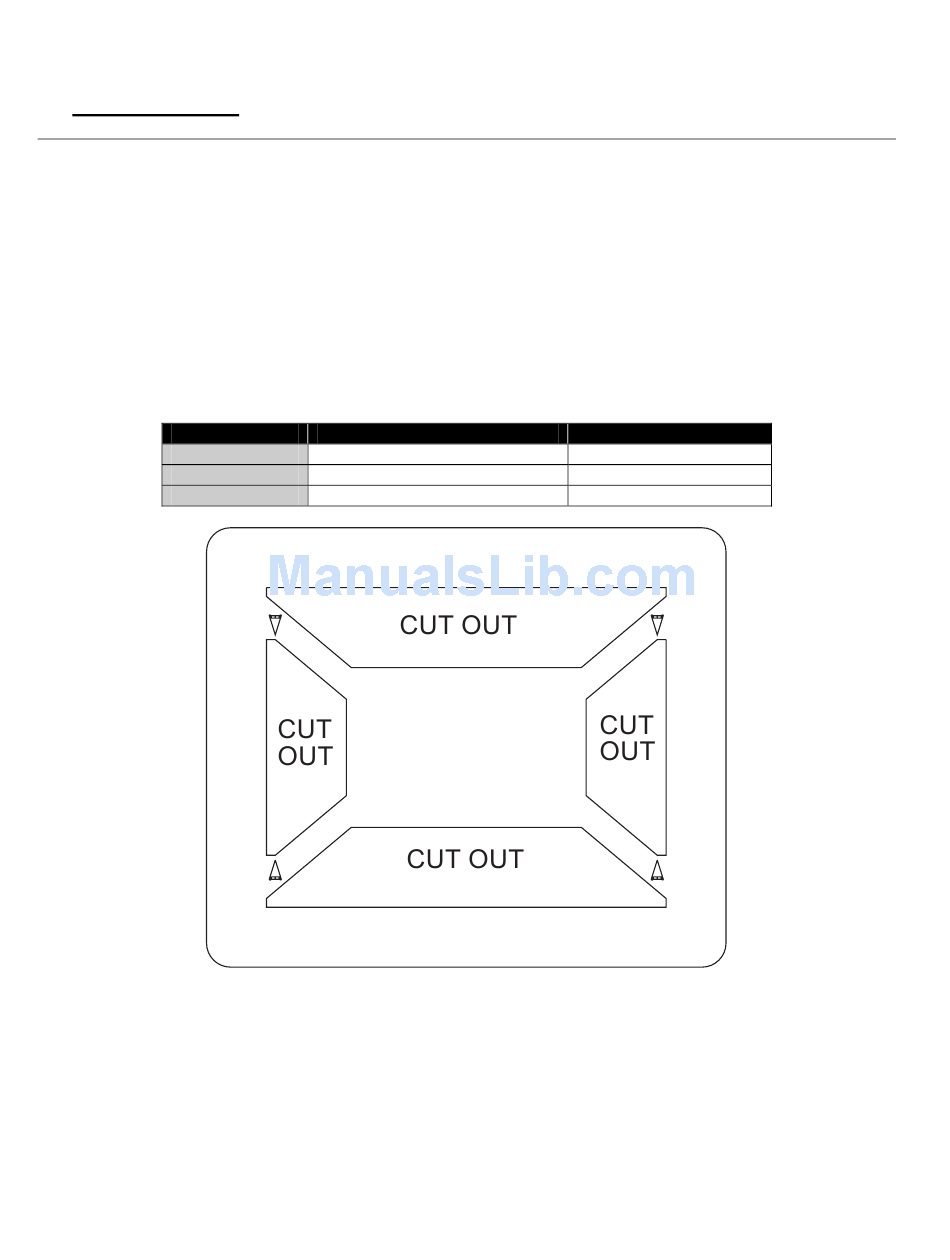

Figure 4 – Back Box Mounting Wall-Cutout Template
© 2008 Xantech Corporation
Cutout Dimensions
5.50" X 6.50"
7.63" X 9.49"
7.63" X 9.49"
SmartPad LCD™
