SYSTEM OVERVIEW

The SmartPad LCD is a complete control system in a single box – meaning, no extra controller box is
necessary. Simply connecting a power supply and connecting the SmartPad LCD outputs to any standard
Xantech IR bus, makes a complete IR Repeater System. By adding the optional RS422/232 converter, you now
can literally control almost any Audio Video or Home Automation component. The SPLCD is also directly
compatible with the MRC-88 Whole-house Audio Video Entertainment System.
SmartPad LCD is easily programmed with DragonDrop-IR Software via an RS232 or USB Port (Program cables
and software included). DragSPLCD is used to graphically design your screens and assign IR and/or RS232
Macros. An internal IR Library is also included for ease of programming.
The SmartPad LCD can be wired into numerous simultaneous application configurations such as outlined below
in Figure 1.

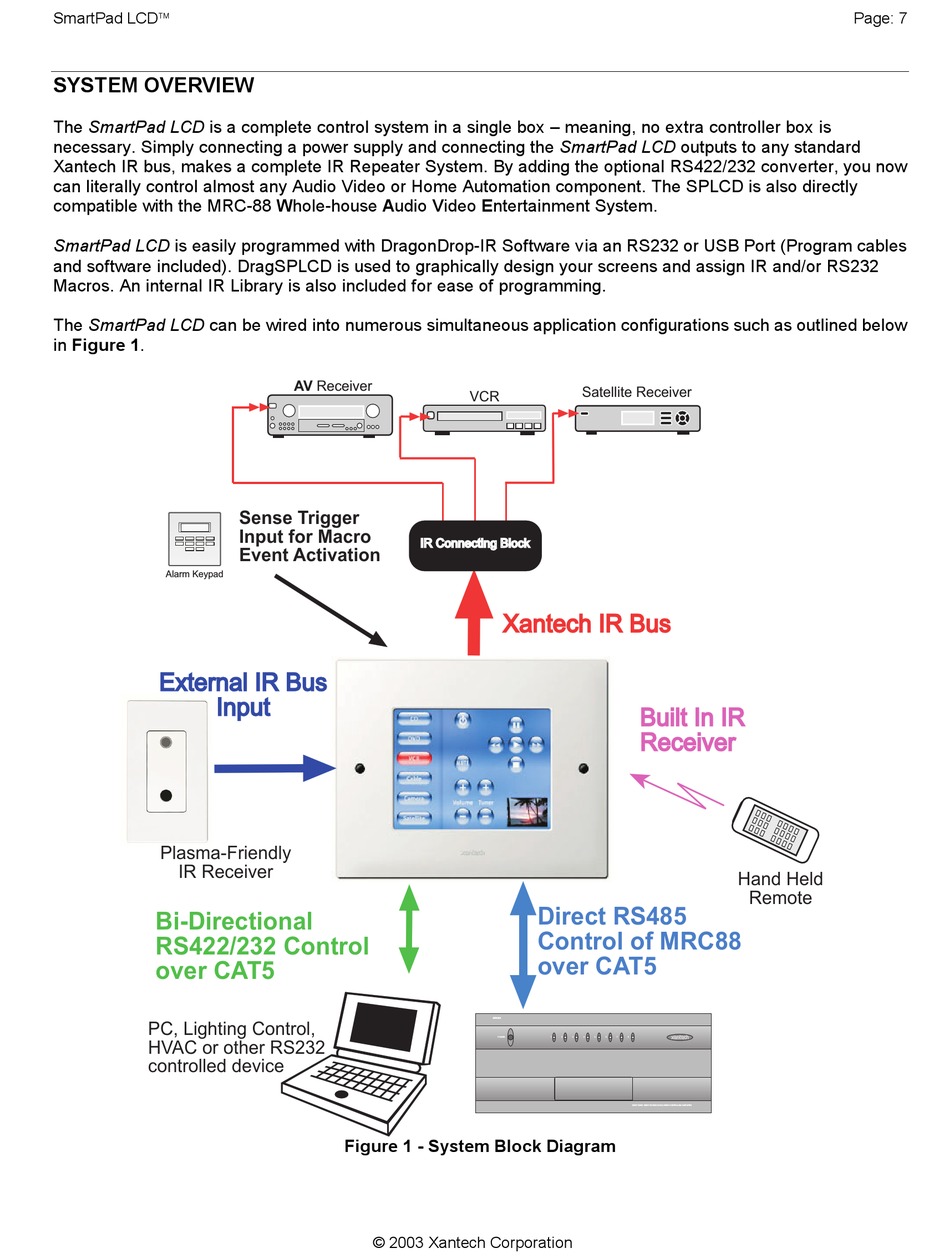

Figure 1 - System Block Diagram
